PwgSmRev1-185 - CopyJobProcessingCapabilitiesType

complexType CopyJobProcessingCapabilitiesType
diagram PwgSmRev1-185_p2275.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of ImagingJobProcessingCapabilitiesType
properties
base ImagingJobProcessingCapabilitiesType
children JobDelayOutputUntil JobDelayOutputUntilTime JobErrorAction JobHoldUntil JobHoldUntilTime JobMandatoryElements JobPhoneNumber JobPriority JobRecipientName BatchMode JobAccountingSheets JobCopies JobCoverBack JobCoverFront JobErrorSheet JobFinishings JobFinishingsCol JobSaveDisposition JobSheetMessage JobSheets JobSheetsCol MultipleSetOriginal OutputBin Overrides
used by
element CopyJobProcessingCapabilities
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:complexType name="CopyJobProcessingCapabilitiesType">

<xs:complexContent>

<xs:extension base="ImagingJobProcessingCapabilitiesType">

<xs:sequence>

<xs:element name="BatchMode" type="xs:boolean" minOccurs="0"/>

<xs:element name="JobAccountingSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobAccountingSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobAccountingOutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobCopies" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="JobCoverBack" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobCoverFront" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobErrorSheet" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobErrorSheetType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobErrorSheetWhen" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobFinishings" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Finishing">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobFinishingsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="FinishingTemplate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="StitchingOffset" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingLocations" type="RangeOfIntType" minOccurs="0" maxOccurs="unbounded"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobSaveDisposition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SaveDisposition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveInfo" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SaveDocumentFormat" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobSheetMessage" type="xs:boolean" minOccurs="0"/>

<xs:element name="JobSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobSheetsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="MultipleSetOriginal" type="xs:boolean" minOccurs="0"/>

<xs:element name="OutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Overrides" type="xs:boolean" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element CopyJobProcessingCapabilitiesType/BatchMode
diagram PwgSmRev1-185_p2276.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexType ScanJobProcessingType
source <xs:element name="BatchMode" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets

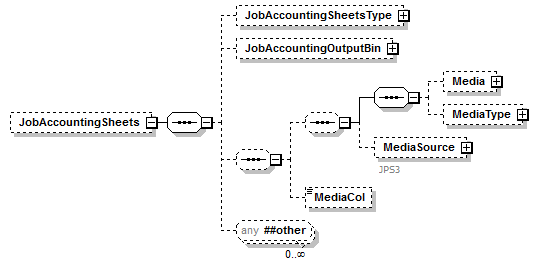

diagram PwgSmRev1-185_p2277.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children JobAccountingSheetsType JobAccountingOutputBin Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType FaxOutJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobAccountingSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobAccountingSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobAccountingOutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/JobAccountingSheetsType
diagram PwgSmRev1-185_p2278.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobAccountingSheetsType
source <xs:element name="JobAccountingSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/JobAccountingSheetsType/AllowedValues
diagram PwgSmRev1-185_p2279.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobAccountingSheetsTypeType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/JobAccountingOutputBin
diagram PwgSmRev1-185_p2280.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobAccountingSheetsType
source <xs:element name="JobAccountingOutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/JobAccountingOutputBin/AllowedValues
diagram PwgSmRev1-185_p2281.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobAccountingOutputBinType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/Media
diagram PwgSmRev1-185_p2282.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/MediaType
diagram PwgSmRev1-185_p2283.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/MediaSource
diagram PwgSmRev1-185_p2284.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/MediaSource/AllowedValue
diagram PwgSmRev1-185_p2285.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobAccountingSheets/MediaCol
diagram PwgSmRev1-185_p2286.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCopies
diagram PwgSmRev1-185_p2287.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="JobCopies" type="RangeOfIntType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverBack
diagram PwgSmRev1-185_p2288.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobCoverBack" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverBack/CoverType
diagram PwgSmRev1-185_p2289.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverBack/CoverType/AllowedValues
diagram PwgSmRev1-185_p2290.png
namespace http://www.pwg.org/schemas/2012/12/sm
type CoverTypeType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverBack/Media
diagram PwgSmRev1-185_p2291.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverBack/MediaType
diagram PwgSmRev1-185_p2292.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverBack/MediaSource
diagram PwgSmRev1-185_p2293.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverBack/MediaSource/AllowedValue
diagram PwgSmRev1-185_p2294.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverBack/MediaCol
diagram PwgSmRev1-185_p2295.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverFront
diagram PwgSmRev1-185_p2296.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobCoverFront" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverFront/CoverType
diagram PwgSmRev1-185_p2297.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverFront/CoverType/AllowedValues
diagram PwgSmRev1-185_p2298.png
namespace http://www.pwg.org/schemas/2012/12/sm
type CoverTypeType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverFront/Media
diagram PwgSmRev1-185_p2299.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverFront/MediaType
diagram PwgSmRev1-185_p2300.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobCoverFront/MediaSource
diagram PwgSmRev1-185_p2301.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverFront/MediaSource/AllowedValue
diagram PwgSmRev1-185_p2302.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobCoverFront/MediaCol
diagram PwgSmRev1-185_p2303.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobErrorSheet
diagram PwgSmRev1-185_p2304.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children JobErrorSheetType JobErrorSheetWhen Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobErrorSheet" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobErrorSheetType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="JobErrorSheetWhen" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/JobErrorSheetType
diagram PwgSmRev1-185_p2305.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobErrorSheetType
source <xs:element name="JobErrorSheetType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/JobErrorSheetType/AllowedValues
diagram PwgSmRev1-185_p2306.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobErrorSheetTypeType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/JobErrorSheetWhen
diagram PwgSmRev1-185_p2307.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobErrorSheetType
source <xs:element name="JobErrorSheetWhen" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/JobErrorSheetWhen/AllowedValues
diagram PwgSmRev1-185_p2308.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobErrorSheetWhenType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/Media
diagram PwgSmRev1-185_p2309.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/MediaType
diagram PwgSmRev1-185_p2310.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/MediaSource
diagram PwgSmRev1-185_p2311.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/MediaSource/AllowedValue
diagram PwgSmRev1-185_p2312.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobErrorSheet/MediaCol
diagram PwgSmRev1-185_p2313.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobFinishings
diagram PwgSmRev1-185_p2314.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children Finishing
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobFinishings" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Finishing">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishings/Finishing
diagram PwgSmRev1-185_p2315.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children AllowedValues
used by
complexType FinishingsType
source <xs:element name="Finishing">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishings/Finishing/AllowedValues
diagram PwgSmRev1-185_p2316.png
namespace http://www.pwg.org/schemas/2012/12/sm
type FinishingType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol
diagram PwgSmRev1-185_p2317.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children FinishingTemplate Stitching
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobFinishingsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="FinishingTemplate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="StitchingOffset" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingLocations" type="RangeOfIntType" minOccurs="0" maxOccurs="unbounded"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/FinishingTemplate
diagram PwgSmRev1-185_p2318.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType FinishingsColType
source <xs:element name="FinishingTemplate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/FinishingTemplate/AllowedValues
diagram PwgSmRev1-185_p2319.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/Stitching
diagram PwgSmRev1-185_p2320.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children StitchingReferenceEdge StitchingOffset StitchingLocations
used by
complexType FinishingsColType
source <xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="StitchingOffset" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingLocations" type="RangeOfIntType" minOccurs="0" maxOccurs="unbounded"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/Stitching/StitchingReferenceEdge
diagram PwgSmRev1-185_p2321.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType StitchingType
source <xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/Stitching/StitchingReferenceEdge/AllowedValues
diagram PwgSmRev1-185_p2322.png
namespace http://www.pwg.org/schemas/2012/12/sm
type StitchingReferenceEdgeType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/Stitching/StitchingOffset
diagram PwgSmRev1-185_p2323.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="StitchingOffset" type="RangeOfIntType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobFinishingsCol/Stitching/StitchingLocations
diagram PwgSmRev1-185_p2324.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc unbounded
content complex
children Lowerbound Upperbound
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="StitchingLocations" type="RangeOfIntType" minOccurs="0" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition
diagram PwgSmRev1-185_p2325.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children SaveDisposition SaveInfo
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType EmailOutJobProcessingType FaxOutJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSaveDisposition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SaveDisposition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveInfo" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SaveDocumentFormat" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveDisposition
diagram PwgSmRev1-185_p2326.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobSaveDispositionType
source <xs:element name="SaveDisposition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveDisposition/AllowedValues
diagram PwgSmRev1-185_p2327.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SaveDispositionType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveInfo
diagram PwgSmRev1-185_p2328.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children SaveDocumentFormat SaveLocation SaveName
used by
complexType JobSaveDispositionType
source <xs:element name="SaveInfo" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SaveDocumentFormat" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveInfo/SaveDocumentFormat
diagram PwgSmRev1-185_p2329.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType SaveInfoType
source <xs:element name="SaveDocumentFormat" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveInfo/SaveDocumentFormat/AllowedValues
diagram PwgSmRev1-185_p2330.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SaveDocumentFormatType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveInfo/SaveLocation
diagram PwgSmRev1-185_p2331.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children UriSchemSupported
used by
complexType SaveInfoType
source <xs:element name="SaveLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSaveDisposition/SaveInfo/SaveName
diagram PwgSmRev1-185_p2332.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
complexType SaveInfoType
source <xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobSheetMessage
diagram PwgSmRev1-185_p2333.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheetMessage" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobSheets
diagram PwgSmRev1-185_p2334.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType JobSheetsColType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSheets/AllowedValues
diagram PwgSmRev1-185_p2335.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobSheetsType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobSheetsCol
diagram PwgSmRev1-185_p2336.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children JobSheets Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheetsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="JobSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/JobSheets
diagram PwgSmRev1-185_p2337.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType JobSheetsColType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/JobSheets/AllowedValues
diagram PwgSmRev1-185_p2338.png
namespace http://www.pwg.org/schemas/2012/12/sm
type JobSheetsType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/Media
diagram PwgSmRev1-185_p2339.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/MediaType
diagram PwgSmRev1-185_p2340.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/MediaSource
diagram PwgSmRev1-185_p2341.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/MediaSource/AllowedValue
diagram PwgSmRev1-185_p2342.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element CopyJobProcessingCapabilitiesType/JobSheetsCol/MediaCol
diagram PwgSmRev1-185_p2343.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/MultipleSetOriginal
diagram PwgSmRev1-185_p2344.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType ScanJobProcessingType
source <xs:element name="MultipleSetOriginal" type="xs:boolean" minOccurs="0"/>

element CopyJobProcessingCapabilitiesType/OutputBin
diagram PwgSmRev1-185_p2345.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
elements CopyOutput ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="OutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CopyJobProcessingCapabilitiesType/OutputBin/AllowedValues
diagram PwgSmRev1-185_p2346.png
namespace http://www.pwg.org/schemas/2012/12/sm
type OutputBinType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>

element CopyJobProcessingCapabilitiesType/Overrides
diagram PwgSmRev1-185_p2347.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintJobProcessingType
source <xs:element name="Overrides" type="xs:boolean" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
