PwgSmRev1-185 - GetScanDocumentElementsResponseType

complexType GetScanDocumentElementsResponseType
diagram PwgSmRev1-185_p3985.png
namespace http://www.pwg.org/schemas/2012/12/sm
children ElementsNaturalLanguage ScanDocumentElements
used by
element GetScanDocumentElementsResponse
source <xs:complexType name="GetScanDocumentElementsResponseType">
  <xs:sequence>
    <xs:element ref="ElementsNaturalLanguage" minOccurs="0"/>
    <xs:element name="ScanDocumentElements" type="DocumentElementsType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element GetScanDocumentElementsResponseType/ScanDocumentElements

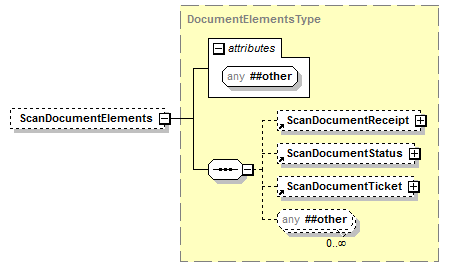

diagram PwgSmRev1-185_p3986.png
namespace http://www.pwg.org/schemas/2012/12/sm
type DocumentElementsType
properties
minOcc 0
maxOcc 1
content complex
children ScanDocumentReceipt ScanDocumentStatus ScanDocumentTicket
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="ScanDocumentElements" type="DocumentElementsType" minOccurs="0"/>
