PwgSmRev1-185 - MarkerColorantSetType

complexType MarkerColorantSetType

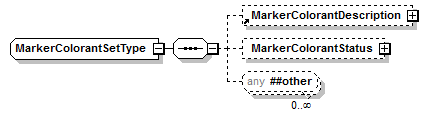

diagram PwgSmRev1-185_p994.png
namespace http://www.pwg.org/schemas/2012/12/sm
children MarkerColorantDescription MarkerColorantStatus
used by
element MarkerColorantsSetType/MarkerColorant
source <xs:complexType name="MarkerColorantSetType">
  <xs:sequence>
    <xs:element ref="MarkerColorantDescription" minOccurs="0"/>
    <xs:element name="MarkerColorantStatus" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element ref="Id"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <!-- MarkerColorant - type -->
</xs:complexType>

element MarkerColorantSetType/MarkerColorantStatus
diagram PwgSmRev1-185_p995.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children Id
used by
complexType MarkerColorantType
source <xs:element name="MarkerColorantStatus" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="Id"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
