PwgSmRev1-185 - NetworkFaxOutCountersType

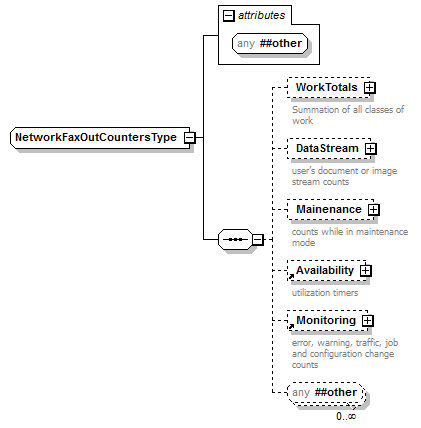

complexType NetworkFaxOutCountersType
diagram PwgSmRev1-185_p1302.png
namespace http://www.pwg.org/schemas/2012/12/sm
children WorkTotals DataStream Mainenance Availability Monitoring
used by
elements NetworkFaxOutDocumentCounters NetworkFaxOutJobCounters NetworkFaxOutServiceCounters
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="NetworkFaxOutCountersType">
  <xs:sequence>
    <xs:element name="WorkTotals" type="OutboundCounts" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Summation of all classes of work</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DataStream" type="OutboundCounts" minOccurs="0">
      <xs:annotation>
        <xs:documentation>user’s document or image stream counts</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Mainenance" type="OutboundCounts" minOccurs="0">
      <xs:annotation>
        <xs:documentation>counts while in maintenance mode </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="Availability" minOccurs="0"/>
    <xs:element ref="Monitoring" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>

element NetworkFaxOutCountersType/WorkTotals
diagram PwgSmRev1-185_p1303.png
namespace http://www.pwg.org/schemas/2012/12/sm
type OutboundCounts
properties
minOcc 0
maxOcc 1
content complex
children Images MonochromeImages FullColorImages OutputKOctets OutputMessages
used by
complexType SystemTotalsType
attributes
Name  Type  Use  Default  Fixed  Annotation
annotation
documentation
Summation of all classes of work
source <xs:element name="WorkTotals" type="OutboundCounts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Summation of all classes of work</xs:documentation>
  </xs:annotation>
</xs:element>

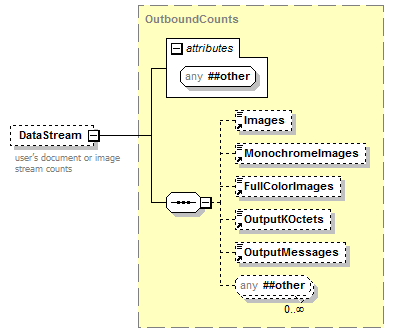

element NetworkFaxOutCountersType/DataStream
diagram PwgSmRev1-185_p1304.png
namespace http://www.pwg.org/schemas/2012/12/sm
type OutboundCounts
properties
minOcc 0
maxOcc 1
content complex
children Images MonochromeImages FullColorImages OutputKOctets OutputMessages
used by
complexType SystemTotalsType
attributes
Name  Type  Use  Default  Fixed  Annotation
annotation
documentation
user’s document or image stream counts
source <xs:element name="DataStream" type="OutboundCounts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>user’s document or image stream counts</xs:documentation>
  </xs:annotation>
</xs:element>

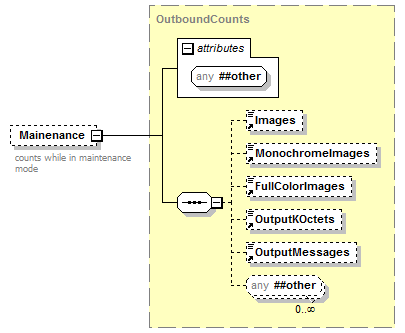

element NetworkFaxOutCountersType/Mainenance
diagram PwgSmRev1-185_p1305.png
namespace http://www.pwg.org/schemas/2012/12/sm
type OutboundCounts
properties
minOcc 0
maxOcc 1
content complex
children Images MonochromeImages FullColorImages OutputKOctets OutputMessages
attributes
Name  Type  Use  Default  Fixed  Annotation
annotation
documentation
counts while in maintenance mode
source <xs:element name="Mainenance" type="OutboundCounts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>counts while in maintenance mode </xs:documentation>
  </xs:annotation>
</xs:element>
