PwgSmRev1-185 - ResourceServiceConfiguration

element ResourceServiceConfiguration

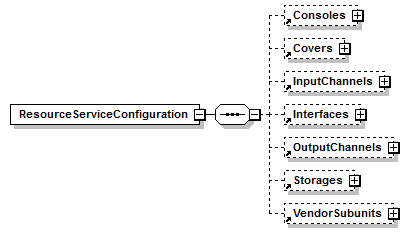

diagram

namespace

http://www.pwg.org/schemas/2012/12/sm

properties

content

complex

children

Consoles Covers InputChannels Interfaces OutputChannels Storages VendorSubunits

used by

element	SetResourceServiceElementsRequestType/ResourceServiceElements
complexTypes	GetResourceServiceElementsResponseType ResourceServiceBaseType

source

<xs:element name="ResourceServiceConfiguration">
<xs:complexType>
    <xs:sequence>
      <xs:element ref="Consoles" minOccurs="0"/>
      <xs:element ref="Covers" minOccurs="0"/>
      <xs:element ref="InputChannels" minOccurs="0"/>
      <xs:element ref="Interfaces" minOccurs="0"/>
      <xs:element ref="OutputChannels" minOccurs="0"/>
      <xs:element ref="Storages" minOccurs="0"/>
      <xs:element ref="VendorSubunits" minOccurs="0"/>
    </xs:sequence>
</xs:complexType>
</xs:element>
