PwgSmRev1-185 - UpdatePrintDocumentStateRequestType

complexType UpdatePrintDocumentStateRequestType

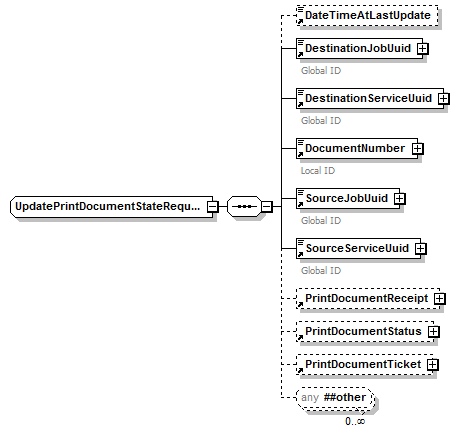

diagram PwgSmRev1-185_p3836.png
namespace http://www.pwg.org/schemas/2012/12/sm
children DateTimeAtLastUpdate DestinationJobUuid DestinationServiceUuid DocumentNumber SourceJobUuid SourceServiceUuid PrintDocumentReceipt PrintDocumentStatus PrintDocumentTicket
used by
element UpdatePrintDocumentStateRequest
source <xs:complexType name="UpdatePrintDocumentStateRequestType">

<xs:sequence>

<xs:element ref="DateTimeAtLastUpdate" minOccurs="0"/>

<xs:element ref="DestinationJobUuid"/>

<xs:element ref="DestinationServiceUuid"/>

<xs:element ref="DocumentNumber"/>

<xs:element ref="SourceJobUuid"/>

<xs:element ref="SourceServiceUuid"/>

<xs:element ref="PrintDocumentReceipt" minOccurs="0"/>

<xs:element ref="PrintDocumentStatus" minOccurs="0"/>

<xs:element ref="PrintDocumentTicket" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>
</xs:complexType>
