PwgPrintJobTicket_v1.0 - ImagingJobDescriptionType

complexType ImagingJobDescriptionType

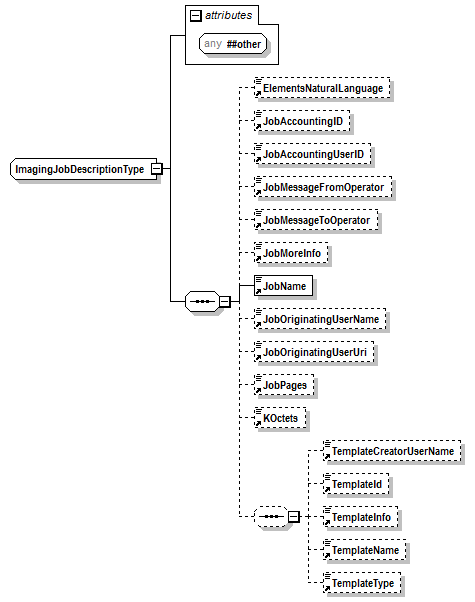

diagram PwgPrintJobTicket_v1.0_p673.png
namespace http://www.pwg.org/schemas/2012/8/sm
children ElementsNaturalLanguage JobAccountingID JobAccountingUserID JobMessageFromOperator JobMessageToOperator JobMoreInfo JobName JobOriginatingUserName JobOriginatingUserUri JobPages KOctets TemplateCreatorUserName TemplateId TemplateInfo TemplateName TemplateType
used by
element ImagingJobDescription
complexType PrintJobDescriptionType
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:complexType name="ImagingJobDescriptionType">

<xs:sequence>

<xs:element ref="ElementsNaturalLanguage" minOccurs="0"/>

<xs:element ref="JobAccountingID" minOccurs="0"/>

<xs:element ref="JobAccountingUserID" minOccurs="0"/>

<xs:element ref="JobMessageFromOperator" minOccurs="0"/>

<xs:element ref="JobMessageToOperator" minOccurs="0"/>

<xs:element ref="JobMoreInfo" minOccurs="0"/>

<xs:element ref="JobName"/>

<xs:element ref="JobOriginatingUserName" minOccurs="0"/>

<xs:element ref="JobOriginatingUserUri" minOccurs="0"/>

<xs:element ref="JobPages" minOccurs="0"/>

<xs:element ref="KOctets" minOccurs="0"/>

<xs:sequence minOccurs="0">

<xs:element ref="TemplateCreatorUserName" minOccurs="0"/>

<xs:element ref="TemplateId" minOccurs="0"/>

<xs:element ref="TemplateInfo" minOccurs="0"/>

<xs:element ref="TemplateName" minOccurs="0"/>

<xs:element ref="TemplateType" minOccurs="0"/>

</xs:sequence>

</xs:sequence>

<xs:anyAttribute namespace="##other" processContents="lax"/>

<!-- ImagingJobDescription - group -->
</xs:complexType>
