PwgPrintJobTicket_v1.0 - MediaColDatabase

element MediaColDatabase
diagram PwgPrintJobTicket_v1.0_p593.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
content complex
children MediaCol
source <xs:element name="MediaColDatabase">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaCol" maxOccurs="unbounded">

<xs:complexType>

<xs:complexContent>

<xs:extension base="MediaColType">

<xs:sequence>

<xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element MediaColDatabase/MediaCol

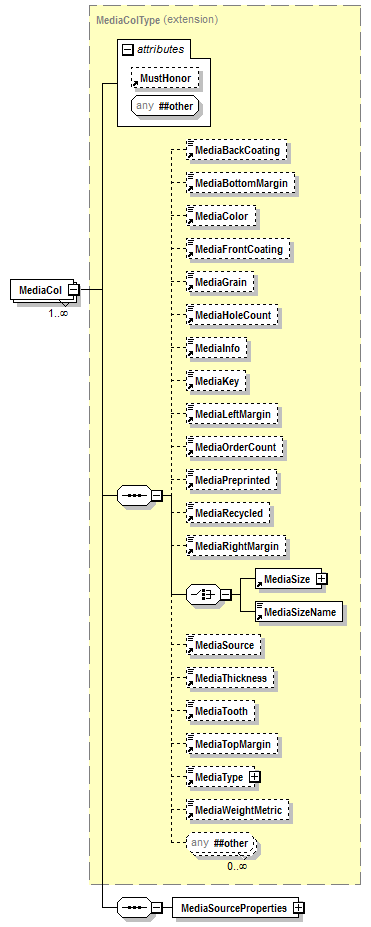

diagram PwgPrintJobTicket_v1.0_p594.png
namespace http://www.pwg.org/schemas/2012/8/sm
type extension of MediaColType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children MediaBackCoating MediaBottomMargin MediaColor MediaFrontCoating MediaGrain MediaHoleCount MediaInfo MediaKey MediaLeftMargin MediaOrderCount MediaPreprinted MediaRecycled MediaRightMargin MediaSize MediaSizeName MediaSource MediaThickness MediaTooth MediaTopMargin MediaType MediaWeightMetric MediaSourceProperties
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
attributes
Name  Type  Use  Default  Fixed  annotation
MustHonorxs:boolean
source <xs:element name="MediaCol" maxOccurs="unbounded">

<xs:complexType>

<xs:complexContent>

<xs:extension base="MediaColType">

<xs:sequence>

<xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

element MediaColDatabase/MediaCol/MediaSourceProperties
diagram PwgPrintJobTicket_v1.0_p595.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
content complex
children MediaSourceFeedDirection MediaSourceFeedOrientation
source <xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element MediaColDatabase/MediaCol/MediaSourceProperties/MediaSourceFeedDirection
diagram PwgPrintJobTicket_v1.0_p596.png
namespace http://www.pwg.org/schemas/2012/8/sm
type FeedOrientationWKV
properties
isRef 0
content simple
facets
Kind Value annotation
maxLength 255
enumeration LongEdgeFirst
enumeration ShortEdgeFirst
source <xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

element MediaColDatabase/MediaCol/MediaSourceProperties/MediaSourceFeedOrientation
diagram PwgPrintJobTicket_v1.0_p597.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSourceFeedOrientationType
properties
isRef 0
content simple
source <xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>
