PwgPrintJobTicket_v1.0 - ServiceSpecificDocumentStatus

element ServiceSpecificDocumentStatus

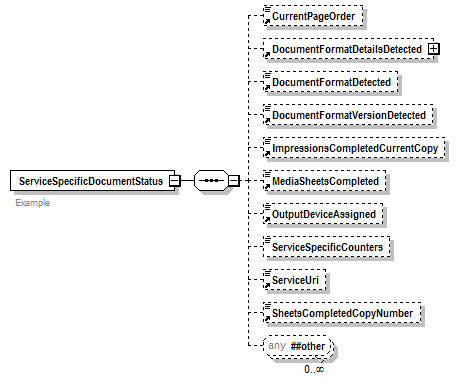

diagram PwgPrintJobTicket_v1.0_p703.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
content complex
children CurrentPageOrder DocumentFormatDetailsDetected DocumentFormatDetected DocumentFormatVersionDetected ImpressionsCompletedCurrentCopy MediaSheetsCompleted OutputDeviceAssigned ServiceSpecificCounters ServiceUri SheetsCompletedCopyNumber
annotation
documentation
Example
source <xs:element name="ServiceSpecificDocumentStatus">

<xs:annotation>

<xs:documentation>Example</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element ref="CurrentPageOrder" minOccurs="0"/>

<xs:element ref="DocumentFormatDetailsDetected" minOccurs="0"/>

<xs:element ref="DocumentFormatDetected" minOccurs="0"/>

<xs:element ref="DocumentFormatVersionDetected" minOccurs="0"/>

<xs:element ref="ImpressionsCompletedCurrentCopy" minOccurs="0"/>

<xs:element ref="MediaSheetsCompleted" minOccurs="0"/>

<xs:element ref="OutputDeviceAssigned" minOccurs="0"/>

<xs:element name="ServiceSpecificCounters" minOccurs="0"/>

<xs:element ref="ServiceUri" minOccurs="0"/>

<xs:element ref="SheetsCompletedCopyNumber" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ServiceSpecificDocumentStatus/ServiceSpecificCounters
diagram PwgPrintJobTicket_v1.0_p704.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
used by
elements ImagingDocumentStatus ImagingJobStatus
source <xs:element name="ServiceSpecificCounters" minOccurs="0"/>
