Documentation for Semantic Model 3
Definition Type: Element
Name: CopyOutput
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:CopyOutputDocumentProcessingCapabilitiesType
Containing Schema: CopyService.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

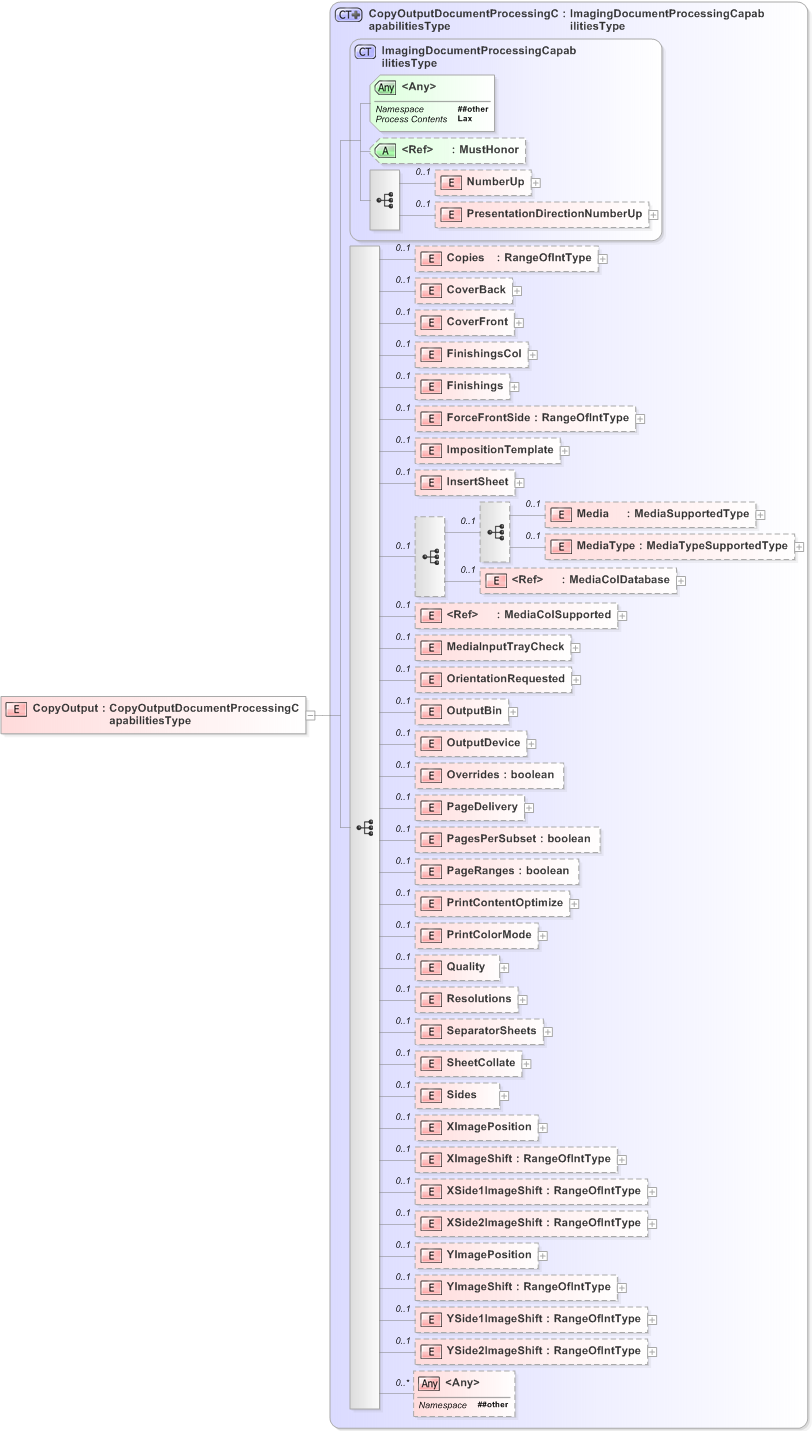

Collapse XSD Schema Diagram:
Drilldown into YSide2ImageShift Drilldown into YSide1ImageShift Drilldown into YImageShift Drilldown into YImagePosition Drilldown into XSide2ImageShift Drilldown into XSide1ImageShift Drilldown into XImageShift Drilldown into XImagePosition Drilldown into Sides Drilldown into SheetCollate Drilldown into SeparatorSheets Drilldown into Resolutions Drilldown into Quality Drilldown into PrintColorMode Drilldown into PrintContentOptimize Drilldown into PageRanges Drilldown into PagesPerSubset Drilldown into PageDelivery Drilldown into Overrides Drilldown into OutputDevice Drilldown into OutputBin Drilldown into OrientationRequested Drilldown into MediaInputTrayCheck Drilldown into MediaColSupported Drilldown into MediaColDatabase Drilldown into MediaType Drilldown into Media Drilldown into InsertSheet Drilldown into ImpositionTemplate Drilldown into ForceFrontSide Drilldown into Finishings Drilldown into FinishingsCol Drilldown into CoverFront Drilldown into CoverBack Drilldown into Copies Drilldown into PresentationDirectionNumberUp Drilldown into NumberUp Drilldown into MustHonor Drilldown into ImagingDocumentProcessingCapabilitiesType Drilldown into CopyOutputDocumentProcessingCapabilitiesTypeXSD Diagram of CopyOutput
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CopyOutput" type="CopyOutputDocumentProcessingCapabilitiesType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NumberUp pwg:NumberUp 0 (1)
PresentationDirectionNumberUp pwg:PresentationDirectionNumberUp 0 (1)
Copies pwg:Copies 0 (1)
CoverBack pwg:CoverBack 0 (1)
CoverFront pwg:CoverFront 0 (1)
FinishingsCol pwg:FinishingsCol 0 (1)
Finishings pwg:Finishings 0 (1)
ForceFrontSide pwg:ForceFrontSide 0 (1)
ImpositionTemplate pwg:ImpositionTemplate 0 (1)
InsertSheet pwg:InsertSheet 0 (1)
Media pwg:Media 0 (1)
MediaType pwg:MediaType 0 (1)
MediaColDatabase pwg:MediaColDatabase 0 (1)
MediaColSupported pwg:MediaColSupported 0 (1)
MediaInputTrayCheck pwg:MediaInputTrayCheck 0 (1)
OrientationRequested pwg:OrientationRequested 0 (1)
OutputBin pwg:OutputBin 0 (1)
OutputDevice pwg:OutputDevice 0 (1)
Overrides pwg:Overrides 0 (1)
PageDelivery pwg:PageDelivery 0 (1)
PagesPerSubset pwg:PagesPerSubset 0 (1)
PageRanges pwg:PageRanges 0 (1)
PrintContentOptimize pwg:PrintContentOptimize 0 (1)
PrintColorMode pwg:PrintColorMode 0 (1)
Quality pwg:Quality 0 (1)
Resolutions pwg:Resolutions 0 (1)
SeparatorSheets pwg:SeparatorSheets 0 (1)
SheetCollate pwg:SheetCollate 0 (1)
Sides pwg:Sides 0 (1)
XImagePosition pwg:XImagePosition 0 (1)
XImageShift pwg:XImageShift 0 (1)
XSide1ImageShift pwg:XSide1ImageShift 0 (1)
XSide2ImageShift pwg:XSide2ImageShift 0 (1)
YImagePosition pwg:YImagePosition 0 (1)
YImageShift pwg:YImageShift 0 (1)
YSide1ImageShift pwg:YSide1ImageShift 0 (1)
YSide2ImageShift pwg:YSide2ImageShift 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
