Documentation for Semantic Model 3
Definition Type: Element
Name: CopyOutput
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingDocumentProcessingType
Containing Schema: CopyService.xsd
Abstract

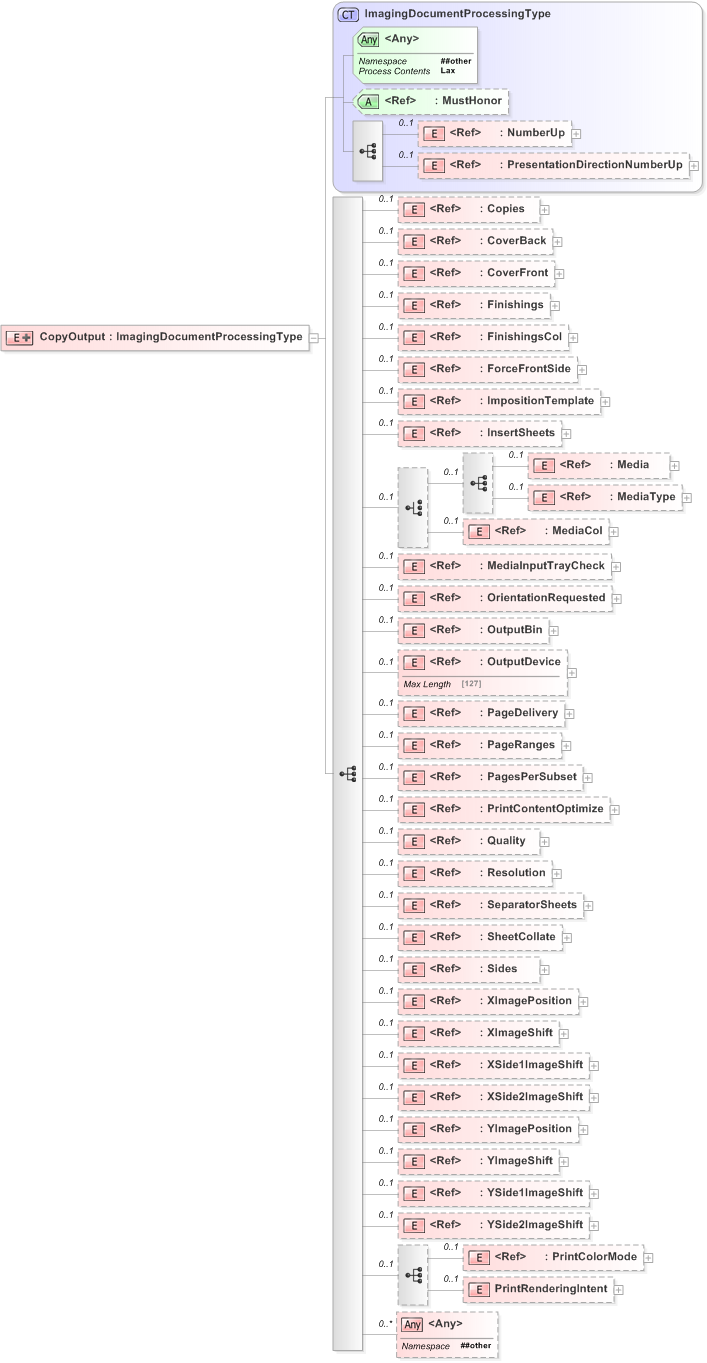

Collapse XSD Schema Diagram:
Drilldown into PrintRenderingIntent Drilldown into PrintColorMode Drilldown into YSide2ImageShift Drilldown into YSide1ImageShift Drilldown into YImageShift Drilldown into YImagePosition Drilldown into XSide2ImageShift Drilldown into XSide1ImageShift Drilldown into XImageShift Drilldown into XImagePosition Drilldown into Sides Drilldown into SheetCollate Drilldown into SeparatorSheets Drilldown into Resolution Drilldown into Quality Drilldown into PrintContentOptimize Drilldown into PagesPerSubset Drilldown into PageRanges Drilldown into PageDelivery Drilldown into OutputDevice Drilldown into OutputBin Drilldown into OrientationRequested Drilldown into MediaInputTrayCheck Drilldown into MediaCol Drilldown into MediaType Drilldown into Media Drilldown into InsertSheets Drilldown into ImpositionTemplate Drilldown into ForceFrontSide Drilldown into FinishingsCol Drilldown into Finishings Drilldown into CoverFront Drilldown into CoverBack Drilldown into Copies Drilldown into PresentationDirectionNumberUp Drilldown into NumberUp Drilldown into MustHonor Drilldown into ImagingDocumentProcessingTypeXSD Diagram of CopyOutput
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CopyOutput">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="ImagingDocumentProcessingType">
                <xs:sequence>
                    <xs:element ref="Copies" minOccurs="0" />
                    <xs:element ref="CoverBack" minOccurs="0" />
                    <xs:element ref="CoverFront" minOccurs="0" />
                    <xs:element ref="Finishings" minOccurs="0" />
                    <xs:element ref="FinishingsCol" minOccurs="0" />
                    <xs:element ref="ForceFrontSide" minOccurs="0" />
                    <xs:element ref="ImpositionTemplate" minOccurs="0" />
                    <xs:element ref="InsertSheets" minOccurs="0" />
                    <xs:choice minOccurs="0">
                        <xs:sequence minOccurs="0">
                            <xs:element ref="Media" minOccurs="0" />
                            <xs:element ref="MediaType" minOccurs="0" />
                        </xs:sequence>
                        <xs:element ref="MediaCol" minOccurs="0" />
                    </xs:choice>
                    <xs:element ref="MediaInputTrayCheck" minOccurs="0" />
                    <xs:element ref="OrientationRequested" minOccurs="0" />
                    <xs:element ref="OutputBin" minOccurs="0" />
                    <xs:element ref="OutputDevice" minOccurs="0" />
                    <xs:element ref="PageDelivery" minOccurs="0" />
                    <xs:element ref="PageRanges" minOccurs="0" />
                    <xs:element ref="PagesPerSubset" minOccurs="0" />
                    <xs:element ref="PrintContentOptimize" minOccurs="0" />
                    <xs:element ref="Quality" minOccurs="0" />
                    <xs:element ref="Resolution" minOccurs="0" />
                    <xs:element ref="SeparatorSheets" minOccurs="0" />
                    <xs:element ref="SheetCollate" minOccurs="0" />
                    <xs:element ref="Sides" minOccurs="0" />
                    <xs:element ref="XImagePosition" minOccurs="0" />
                    <xs:element ref="XImageShift" minOccurs="0" />
                    <xs:element ref="XSide1ImageShift" minOccurs="0" />
                    <xs:element ref="XSide2ImageShift" minOccurs="0" />
                    <xs:element ref="YImagePosition" minOccurs="0" />
                    <xs:element ref="YImageShift" minOccurs="0" />
                    <xs:element ref="YSide1ImageShift" minOccurs="0" />
                    <xs:element ref="YSide2ImageShift" minOccurs="0" />
                    <xs:sequence minOccurs="0">
                        <xs:element ref="PrintColorMode" minOccurs="0" />
                        <xs:element name="PrintRenderingIntent" minOccurs="0">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:element name="AllowedValue" maxOccurs="unbounded">
                                        <xs:simpleType>
                                            <xs:union memberTypes="PrintRenderingIntentWKV KeywordNsExtensionPattern" />
                                        </xs:simpleType>
                                    </xs:element>
                                </xs:sequence>
                            </xs:complexType>
                        </xs:element>
                    </xs:sequence>
                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NumberUp pwg:NumberUp 0 (1)
PresentationDirectionNumberUp pwg:PresentationDirectionNumberUp 0 (1)
Copies pwg:Copies 0 (1)
CoverBack pwg:CoverBack 0 (1)
CoverFront pwg:CoverFront 0 (1)
Finishings pwg:Finishings 0 (1)
FinishingsCol pwg:FinishingsCol 0 (1)
ForceFrontSide pwg:ForceFrontSide 0 (1)
ImpositionTemplate pwg:ImpositionTemplate 0 (1)
InsertSheets pwg:InsertSheets 0 (1)
Media pwg:Media 0 (1)
MediaType pwg:MediaType 0 (1)
MediaCol pwg:MediaCol 0 (1)
MediaInputTrayCheck pwg:MediaInputTrayCheck 0 (1)
OrientationRequested pwg:OrientationRequested 0 (1)
OutputBin pwg:OutputBin 0 (1)
OutputDevice pwg:OutputDevice 0 (1)
PageDelivery pwg:PageDelivery 0 (1)
PageRanges pwg:PageRanges 0 (1)
PagesPerSubset pwg:PagesPerSubset 0 (1)
PrintContentOptimize pwg:PrintContentOptimize 0 (1)
Quality pwg:Quality 0 (1)
Resolution pwg:Resolution 0 (1)
SeparatorSheets pwg:SeparatorSheets 0 (1)
SheetCollate pwg:SheetCollate 0 (1)
Sides pwg:Sides 0 (1)
XImagePosition pwg:XImagePosition 0 (1)
XImageShift pwg:XImageShift 0 (1)
XSide1ImageShift pwg:XSide1ImageShift 0 (1)
XSide2ImageShift pwg:XSide2ImageShift 0 (1)
YImagePosition pwg:YImagePosition 0 (1)
YImageShift pwg:YImageShift 0 (1)
YSide1ImageShift pwg:YSide1ImageShift 0 (1)
YSide2ImageShift pwg:YSide2ImageShift 0 (1)
PrintColorMode pwg:PrintColorMode 0 (1)
PrintRenderingIntent pwg:PrintRenderingIntent 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
