Documentation for Semantic Model 3
Definition Type: Element
Name: CoverStatus
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:CoverStatusType
Containing Schema: Subunits.xsd
Abstract

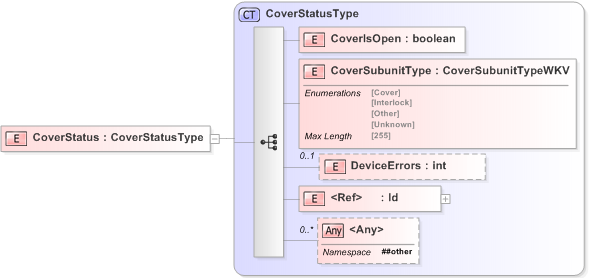

Collapse XSD Schema Diagram:
Drilldown into Id Drilldown into DeviceErrors Drilldown into CoverSubunitType Drilldown into CoverIsOpen Drilldown into CoverStatusTypeXSD Diagram of CoverStatus
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CoverStatus" type="CoverStatusType">
    <!-- CoverStatus - group -->
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoverIsOpen pwg:CoverIsOpen (1) (1)
CoverSubunitType pwg:CoverSubunitType (1) (1)
DeviceErrors pwg:DeviceErrors 0 (1)
Id pwg:Id (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
