Documentation for Semantic Model 3
Definition Type: ComplexType
Name: DeviceConditionType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Conditions.xsd
Abstract

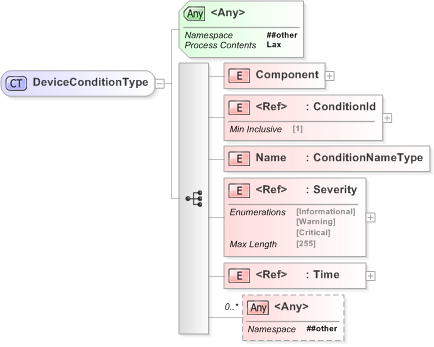

Collapse XSD Schema Diagram:
Drilldown into Time Drilldown into Severity Drilldown into Name Drilldown into ConditionId Drilldown into ComponentXSD Diagram of DeviceConditionType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="DeviceConditionType">
    <xs:sequence>
        <xs:element name="Component">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="Group" />
                    <xs:element name="Name" type="xs:string" />
                    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element ref="ConditionId" />
        <xs:element name="Name" type="ConditionNameType" />
        <xs:element ref="Severity" />
        <xs:element ref="Time" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Component pwg:Component (1) (1)
ConditionId pwg:ConditionId (1) (1)
Name pwg:Name (1) (1)
Severity pwg:Severity (1) (1)
Time pwg:Time (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ConditionHistoryEntryTypepwg:DeviceCondition,
