Documentation for Semantic Model 3
Definition Type: ComplexType
Name: EmailInJobType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: EmailInService.xsd
Abstract

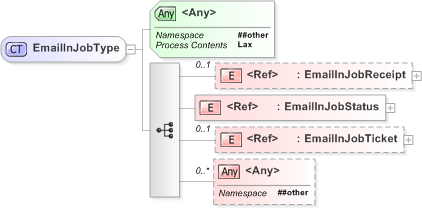

Collapse XSD Schema Diagram:
Drilldown into EmailInJobTicket Drilldown into EmailInJobStatus Drilldown into EmailInJobReceiptXSD Diagram of EmailInJobType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="EmailInJobType">
    <xs:sequence>
        <xs:element ref="EmailInJobReceipt" minOccurs="0" />
        <xs:element ref="EmailInJobStatus" />
        <xs:element ref="EmailInJobTicket" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
    <!-- EmailInJob - object -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmailInJobReceipt pwg:EmailInJobReceipt 0 (1)
EmailInJobStatus pwg:EmailInJobStatus (1) (1)
EmailInJobTicket pwg:EmailInJobTicket 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:EmailInJob
