Documentation for Semantic Model 3
Definition Type: Element
Name: FaxInMetrics
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: FaxInService.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

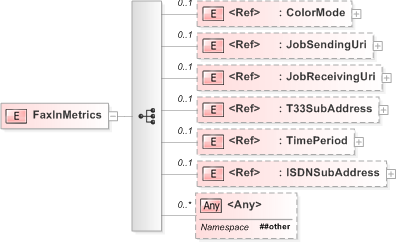

Collapse XSD Schema Diagram:
Drilldown into ISDNSubAddress Drilldown into TimePeriod Drilldown into T33SubAddress Drilldown into JobReceivingUri Drilldown into JobSendingUri Drilldown into ColorModeXSD Diagram of FaxInMetrics
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="FaxInMetrics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ColorMode" minOccurs="0" />
            <xs:element ref="JobSendingUri" minOccurs="0" />
            <xs:element ref="JobReceivingUri" minOccurs="0" />
            <xs:element ref="T33SubAddress" minOccurs="0" />
            <xs:element ref="TimePeriod" minOccurs="0" />
            <xs:element ref="ISDNSubAddress" minOccurs="0" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ColorMode pwg:ColorMode 0 (1)
JobSendingUri pwg:JobSendingUri 0 (1)
JobReceivingUri pwg:JobReceivingUri 0 (1)
T33SubAddress pwg:T33SubAddress 0 (1)
TimePeriod pwg:TimePeriod 0 (1)
ISDNSubAddress pwg:ISDNSubAddress 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
