Documentation for Semantic Model 3
Definition Type: ComplexType
Name: FetchPrintDocumentResponseType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgPrintOpMsg.xsd
Abstract

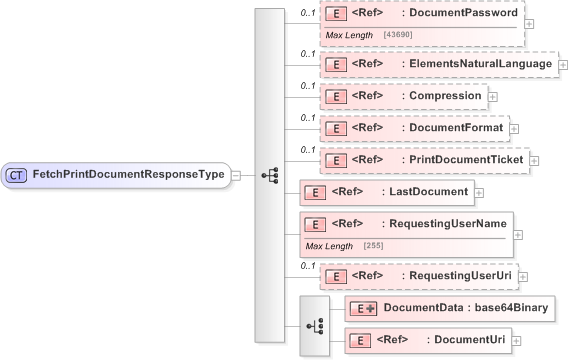

Collapse XSD Schema Diagram:
Drilldown into DocumentUri Drilldown into DocumentData Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into LastDocument Drilldown into PrintDocumentTicket Drilldown into DocumentFormat Drilldown into Compression Drilldown into ElementsNaturalLanguage Drilldown into DocumentPasswordXSD Diagram of FetchPrintDocumentResponseType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="FetchPrintDocumentResponseType">
    <xs:sequence>
        <xs:element ref="DocumentPassword" minOccurs="0" />
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:element ref="Compression" minOccurs="0" />
        <xs:element ref="DocumentFormat" minOccurs="0" />
        <xs:element ref="PrintDocumentTicket" minOccurs="0" />
        <xs:element ref="LastDocument" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
        <xs:choice>
            <xs:element name="DocumentData">
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="xs:base64Binary" />
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element ref="DocumentUri" />
        </xs:choice>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
Compression pwg:Compression 0 (1)
DocumentFormat pwg:DocumentFormat 0 (1)
PrintDocumentTicket pwg:PrintDocumentTicket 0 (1)
LastDocument pwg:LastDocument (1) (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
DocumentData pwg:DocumentData (1) (1)
DocumentUri pwg:DocumentUri (1) (1)
Collapse Derivation Tree:
Collapse References:
pwg:FetchPrintDocumentResponse
