Documentation for Semantic Model 3
Definition Type: Element
Name: FinisherSupply
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:FinisherSupplySetType
Containing Schema: Subunits.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

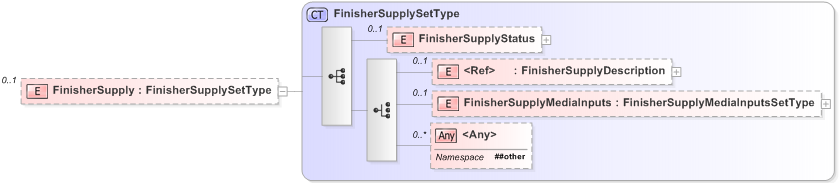

Collapse XSD Schema Diagram:
Drilldown into FinisherSupplyMediaInputs Drilldown into FinisherSupplyDescription Drilldown into FinisherSupplyStatus Drilldown into FinisherSupplySetTypeXSD Diagram of FinisherSupply
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="FinisherSupply" type="FinisherSupplySetType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FinisherSupplyStatus pwg:FinisherSupplyStatus 0 (1)
FinisherSupplyDescription pwg:FinisherSupplyDescription 0 (1)
FinisherSupplyMediaInputs pwg:FinisherSupplyMediaInputs 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
