Documentation for Semantic Model 3
Definition Type: Element
Name: InputChannel
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:InputChannelSetType
Containing Schema: Subunits.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

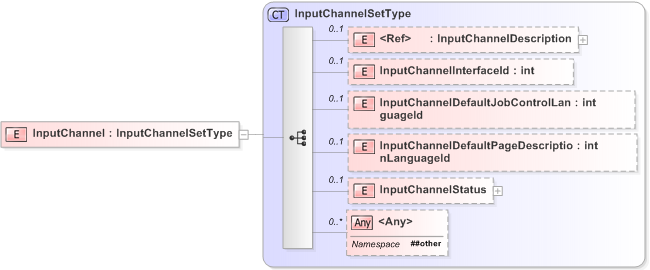

Collapse XSD Schema Diagram:
Drilldown into InputChannelStatus Drilldown into InputChannelDefaultPageDescriptionLanguageId Drilldown into InputChannelDefaultJobControlLanguageId Drilldown into InputChannelInterfaceId Drilldown into InputChannelDescription Drilldown into InputChannelSetTypeXSD Diagram of InputChannel
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="InputChannel" type="InputChannelSetType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InputChannelDescription pwg:InputChannelDescription 0 (1)
InputChannelInterfaceId pwg:InputChannelInterfaceId 0 (1)
InputChannelDefaultJobControlLanguageId pwg:InputChannelDefaultJobControlLanguageId 0 (1)
InputChannelDefaultPageDescriptionLanguageId pwg:InputChannelDefaultPageDescriptionLanguageId 0 (1)
InputChannelStatus pwg:InputChannelStatus 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
