Documentation for Semantic Model 3
Definition Type: ComplexType
Name: OutputTrayDescriptionType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:SubunitDescription
Containing Schema: Subunits.xsd
Abstract

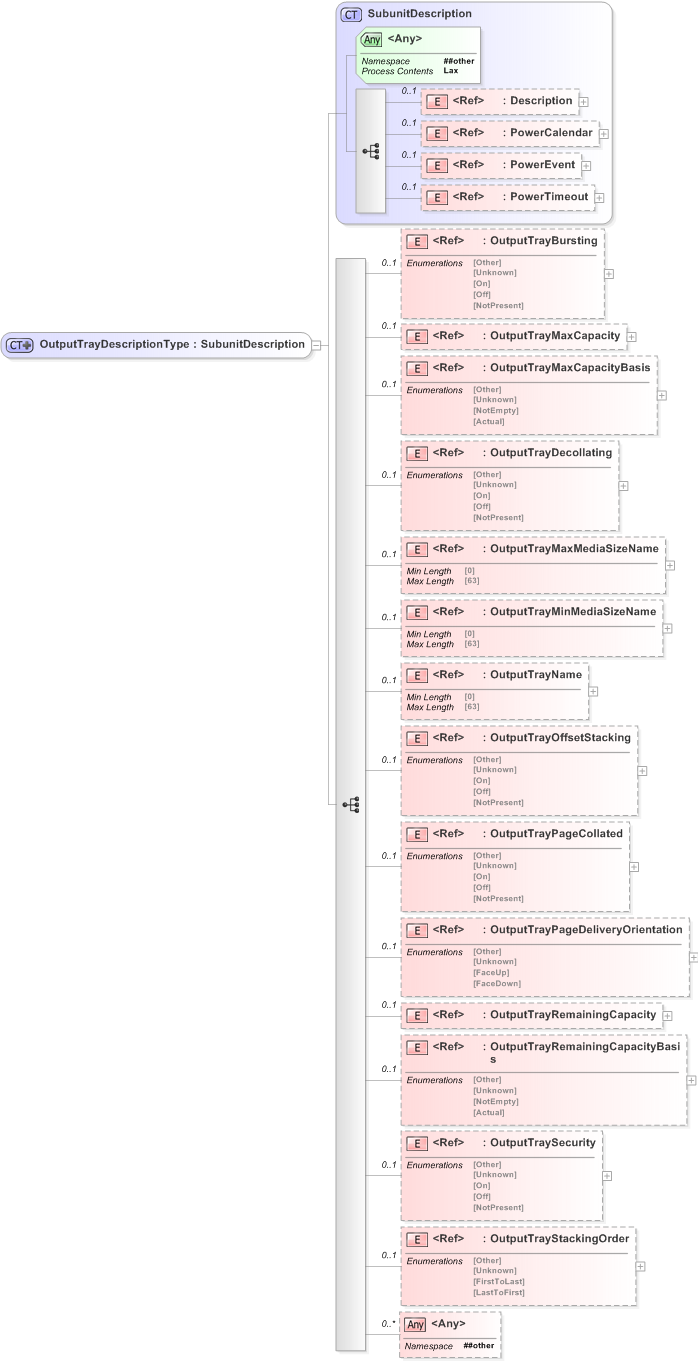

Collapse XSD Schema Diagram:
Drilldown into OutputTrayStackingOrder Drilldown into OutputTraySecurity Drilldown into OutputTrayRemainingCapacityBasis Drilldown into OutputTrayRemainingCapacity Drilldown into OutputTrayPageDeliveryOrientation Drilldown into OutputTrayPageCollated Drilldown into OutputTrayOffsetStacking Drilldown into OutputTrayName Drilldown into OutputTrayMinMediaSizeName Drilldown into OutputTrayMaxMediaSizeName Drilldown into OutputTrayDecollating Drilldown into OutputTrayMaxCapacityBasis Drilldown into OutputTrayMaxCapacity Drilldown into OutputTrayBursting Drilldown into PowerTimeout Drilldown into PowerEvent Drilldown into PowerCalendar Drilldown into Description Drilldown into SubunitDescriptionXSD Diagram of OutputTrayDescriptionType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="OutputTrayDescriptionType">
    <xs:complexContent>
        <xs:extension base="SubunitDescription">
            <xs:sequence>
                <!-- SM/1.0 Printer group import -->
                <xs:element ref="OutputTrayBursting" minOccurs="0" />
                <xs:element ref="OutputTrayMaxCapacity" minOccurs="0" />
                <xs:element ref="OutputTrayMaxCapacityBasis" minOccurs="0" />
                <xs:element ref="OutputTrayDecollating" minOccurs="0" />
                <xs:element ref="OutputTrayMaxMediaSizeName" minOccurs="0" />
                <xs:element ref="OutputTrayMinMediaSizeName" minOccurs="0" />
                <xs:element ref="OutputTrayName" minOccurs="0" />
                <xs:element ref="OutputTrayOffsetStacking" minOccurs="0" />
                <xs:element ref="OutputTrayPageCollated" minOccurs="0" />
                <xs:element ref="OutputTrayPageDeliveryOrientation" minOccurs="0" />
                <xs:element ref="OutputTrayRemainingCapacity" minOccurs="0" />
                <xs:element ref="OutputTrayRemainingCapacityBasis" minOccurs="0" />
                <xs:element ref="OutputTraySecurity" minOccurs="0" />
                <xs:element ref="OutputTrayStackingOrder" minOccurs="0" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description pwg:Description 0 (1)
PowerCalendar pwg:PowerCalendar 0 (1)
PowerEvent pwg:PowerEvent 0 (1)
PowerTimeout pwg:PowerTimeout 0 (1)
OutputTrayBursting pwg:OutputTrayBursting 0 (1)
OutputTrayMaxCapacity pwg:OutputTrayMaxCapacity 0 (1)
OutputTrayMaxCapacityBasis pwg:OutputTrayMaxCapacityBasis 0 (1)
OutputTrayDecollating pwg:OutputTrayDecollating 0 (1)
OutputTrayMaxMediaSizeName pwg:OutputTrayMaxMediaSizeName 0 (1)
OutputTrayMinMediaSizeName pwg:OutputTrayMinMediaSizeName 0 (1)
OutputTrayName pwg:OutputTrayName 0 (1)
OutputTrayOffsetStacking pwg:OutputTrayOffsetStacking 0 (1)
OutputTrayPageCollated pwg:OutputTrayPageCollated 0 (1)
OutputTrayPageDeliveryOrientation pwg:OutputTrayPageDeliveryOrientation 0 (1)
OutputTrayRemainingCapacity pwg:OutputTrayRemainingCapacity 0 (1)
OutputTrayRemainingCapacityBasis pwg:OutputTrayRemainingCapacityBasis 0 (1)
OutputTraySecurity pwg:OutputTraySecurity 0 (1)
OutputTrayStackingOrder pwg:OutputTrayStackingOrder 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:OutputTrayDescription
