Docs for schema item PdlInitFile in Semantic Model 3

Documentation for Semantic Model 3

Definition Type:	Element
Name:	PdlInitFile
Namespace:	http://www.pwg.org/schemas/2016/01/sm
Containing Schema:	PrintServiceCapabilities.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract

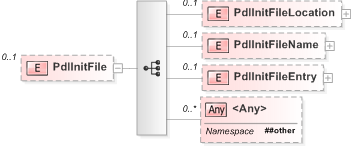

XSD Schema Diagram:

XSD Schema Code:

<?xml version="1.0" encoding="utf-16"?>
<xs:element name="PdlInitFile" minOccurs="0">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="PdlInitFileLocation" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="PdlInitFileName" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded" />
                    </xs:sequence>
                    <xs:attribute name="PdlInitFileNameSubdirectory" type="xs:boolean" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PdlInitFileEntry" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
PdlInitFileLocation	pwg:PdlInitFileLocation	0	(1)
PdlInitFileName	pwg:PdlInitFileName	0	(1)
PdlInitFileEntry	pwg:PdlInitFileEntry	0	(1)
<xs:any>	Allowed namespace: '##other'	0	unbounded
