Documentation for Semantic Model 3
Definition Type: ComplexType
Name: PrintServiceType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:PrintServiceBaseType
Containing Schema: PrintService.xsd
Abstract

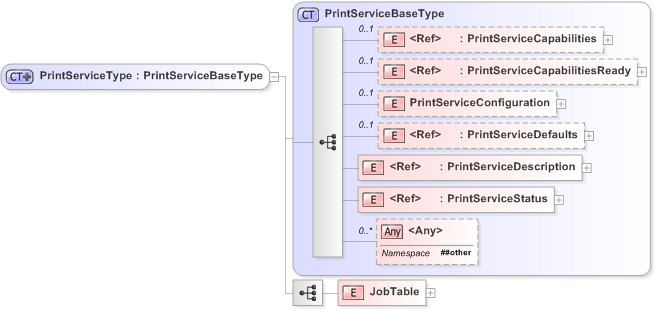

Collapse XSD Schema Diagram:
Drilldown into JobTable Drilldown into PrintServiceStatus Drilldown into PrintServiceDescription Drilldown into PrintServiceDefaults Drilldown into PrintServiceConfiguration Drilldown into PrintServiceCapabilitiesReady Drilldown into PrintServiceCapabilities Drilldown into PrintServiceBaseTypeXSD Diagram of PrintServiceType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="PrintServiceType">
    <xs:complexContent>
        <xs:extension base="PrintServiceBaseType">
            <xs:sequence>
                <xs:element name="JobTable">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element name="ActiveJobs" type="PrintJobsType" />
                            <xs:element name="JobHistory" type="PrintJobsType" minOccurs="0" />
                            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PrintServiceCapabilities pwg:PrintServiceCapabilities 0 (1)
PrintServiceCapabilitiesReady pwg:PrintServiceCapabilitiesReady 0 (1)
PrintServiceConfiguration pwg:PrintServiceConfiguration 0 (1)
PrintServiceDefaults pwg:PrintServiceDefaults 0 (1)
PrintServiceDescription pwg:PrintServiceDescription (1) (1)
PrintServiceStatus pwg:PrintServiceStatus (1) (1)
JobTable pwg:JobTable (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:PrintService
