Documentation for Semantic Model 3
Definition Type: ComplexType
Name: SaveInfoType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommon.xsd
Abstract

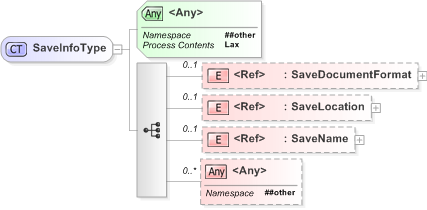

Collapse XSD Schema Diagram:
Drilldown into SaveName Drilldown into SaveLocation Drilldown into SaveDocumentFormatXSD Diagram of SaveInfoType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="SaveInfoType">
    <xs:sequence>
        <xs:element ref="SaveDocumentFormat" minOccurs="0" />
        <xs:element ref="SaveLocation" minOccurs="0" />
        <xs:element ref="SaveName" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SaveDocumentFormat pwg:SaveDocumentFormat 0 (1)
SaveLocation pwg:SaveLocation 0 (1)
SaveName pwg:SaveName 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:SaveInfo
