Documentation for Semantic Model 3
Definition Type: ComplexType
Name: SendPrintDocumentRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgPrintOpMsg.xsd
Abstract

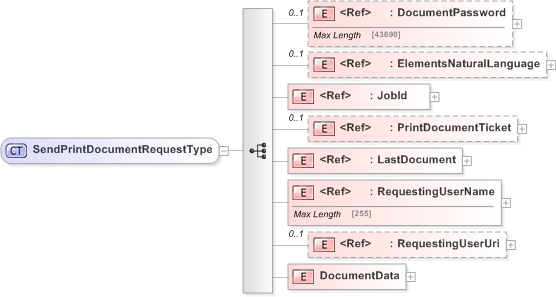

Collapse XSD Schema Diagram:
Drilldown into DocumentData Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into LastDocument Drilldown into PrintDocumentTicket Drilldown into JobId Drilldown into ElementsNaturalLanguage Drilldown into DocumentPasswordXSD Diagram of SendPrintDocumentRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="SendPrintDocumentRequestType">
    <xs:sequence>
        <xs:element ref="DocumentPassword" minOccurs="0" />
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:element ref="JobId" />
        <xs:element ref="PrintDocumentTicket" minOccurs="0" />
        <xs:element ref="LastDocument" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
        <xs:element name="DocumentData">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="xop:Include" />
                </xs:sequence>
                <xs:attribute ref="xmime:contentType" />
            </xs:complexType>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobId pwg:JobId (1) (1)
PrintDocumentTicket pwg:PrintDocumentTicket 0 (1)
LastDocument pwg:LastDocument (1) (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
DocumentData pwg:DocumentData (1) (1)
Collapse Derivation Tree:
Collapse References:
pwg:SendPrintDocumentRequest
