Documentation for Semantic Model 3
Definition Type: ComplexType
Name: UpdatePrintDocumentStateRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgPrintOpMsg.xsd
Abstract

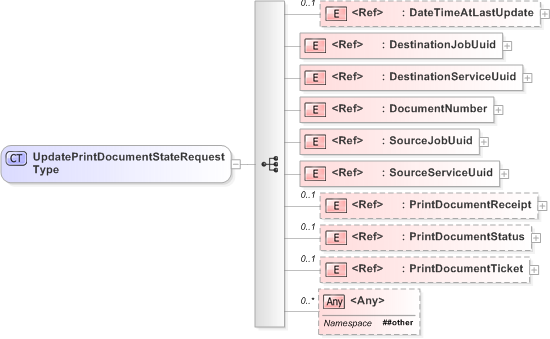

Collapse XSD Schema Diagram:
Drilldown into PrintDocumentTicket Drilldown into PrintDocumentStatus Drilldown into PrintDocumentReceipt Drilldown into SourceServiceUuid Drilldown into SourceJobUuid Drilldown into DocumentNumber Drilldown into DestinationServiceUuid Drilldown into DestinationJobUuid Drilldown into DateTimeAtLastUpdateXSD Diagram of UpdatePrintDocumentStateRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="UpdatePrintDocumentStateRequestType">
    <xs:sequence>
        <xs:element ref="DateTimeAtLastUpdate" minOccurs="0" />
        <xs:element ref="DestinationJobUuid" />
        <xs:element ref="DestinationServiceUuid" />
        <xs:element ref="DocumentNumber" />
        <xs:element ref="SourceJobUuid" />
        <xs:element ref="SourceServiceUuid" />
        <xs:element ref="PrintDocumentReceipt" minOccurs="0" />
        <xs:element ref="PrintDocumentStatus" minOccurs="0" />
        <xs:element ref="PrintDocumentTicket" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeAtLastUpdate pwg:DateTimeAtLastUpdate 0 (1)
DestinationJobUuid pwg:DestinationJobUuid (1) (1)
DestinationServiceUuid pwg:DestinationServiceUuid (1) (1)
DocumentNumber pwg:DocumentNumber (1) (1)
SourceJobUuid pwg:SourceJobUuid (1) (1)
SourceServiceUuid pwg:SourceServiceUuid (1) (1)
PrintDocumentReceipt pwg:PrintDocumentReceipt 0 (1)
PrintDocumentStatus pwg:PrintDocumentStatus 0 (1)
PrintDocumentTicket pwg:PrintDocumentTicket 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:UpdatePrintDocumentStateRequest
