Documentation for Semantic Model 3
Definition Type: Element
Name: VendorSubunit
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:VendorSubunitSetType
Containing Schema: Subunits.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

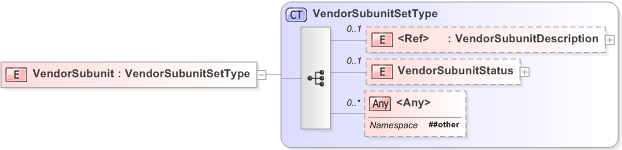

Collapse XSD Schema Diagram:
Drilldown into VendorSubunitStatus Drilldown into VendorSubunitDescription Drilldown into VendorSubunitSetTypeXSD Diagram of VendorSubunit
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="VendorSubunit" type="VendorSubunitSetType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VendorSubunitDescription pwg:VendorSubunitDescription 0 (1)
VendorSubunitStatus pwg:VendorSubunitStatus 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
