PwgSmRev1-185 - GetSubscriptionsRequestType

complexType GetSubscriptionsRequestType

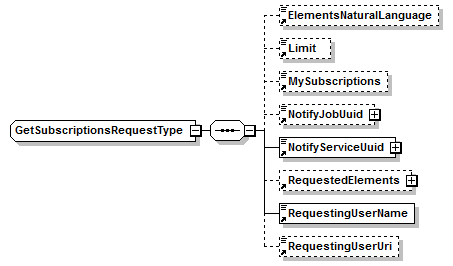

diagram

namespace

http://www.pwg.org/schemas/2012/12/sm

children

ElementsNaturalLanguage Limit MySubscriptions NotifyJobUuid NotifyServiceUuid RequestedElements RequestingUserName RequestingUserUri

used by

element

GetSubscriptionsRequest

source

<xs:complexType name="GetSubscriptionsRequestType">
<xs:sequence>
    <xs:element ref="ElementsNaturalLanguage" minOccurs="0"/>
    <xs:element ref="Limit" minOccurs="0"/>
    <xs:element ref="MySubscriptions" minOccurs="0"/>
    <xs:element ref="NotifyJobUuid" minOccurs="0"/>
    <xs:element ref="NotifyServiceUuid"/>
    <xs:element ref="RequestedElements" minOccurs="0"/>
    <xs:element ref="RequestingUserName"/>
    <xs:element ref="RequestingUserUri" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
