PwgSmRev1-185 - SystemControlServiceDescriptionType

complexType SystemControlServiceDescriptionType

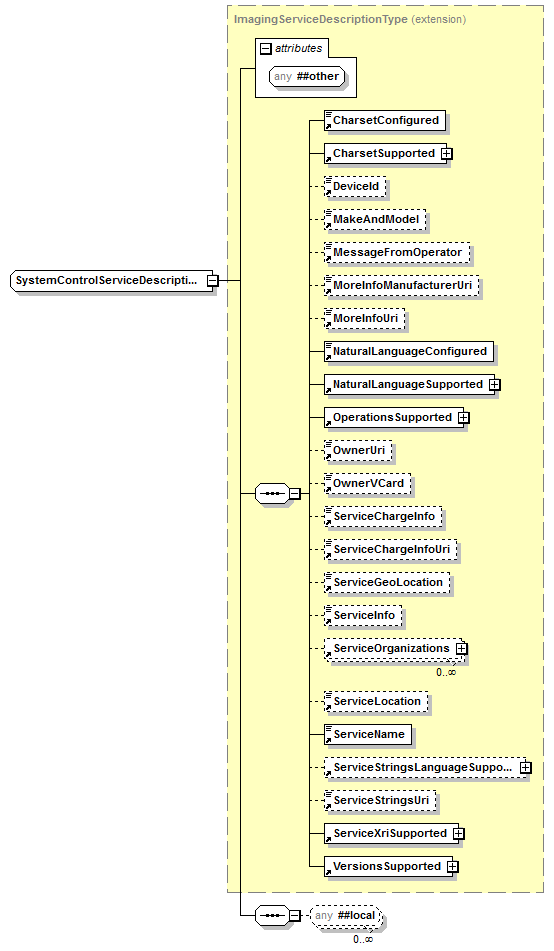

diagram PwgSmRev1-185_p2466.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of ImagingServiceDescriptionType
properties
base ImagingServiceDescriptionType
children CharsetConfigured CharsetSupported DeviceId MakeAndModel MessageFromOperator MoreInfoManufacturerUri MoreInfoUri NaturalLanguageConfigured NaturalLanguageSupported OperationsSupported OwnerUri OwnerVCard ServiceChargeInfo ServiceChargeInfoUri ServiceGeoLocation ServiceInfo ServiceOrganizations ServiceLocation ServiceName ServiceStringsLanguageSupported ServiceStringsUri ServiceXriSupported VersionsSupported
used by
element SystemControlServiceDescription
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="SystemControlServiceDescriptionType">

<xs:complexContent>

<xs:extension base="ImagingServiceDescriptionType">

<xs:sequence>

<!--  service type (function of this service object) REQUIRED - MUST be single-valued  see WIMS Object Model - section 4 [WIMS-PRO] -->

<!--  list of URI supported by this service  REQUIRED - MAY be multi-valued  see printer-uri-supported - section 4.4.1 [RFC2911] -->

<!-- service vendor-supplied description and/or label  OPTIONAL - MUST be single-valued  see printer-info - section 4.4.6 [RFC2911] -->

<!--  Object administrative name OPTIONAL - MUST be single-valued  see printer-name - section 4.4.4 [RFC2911]  see prtGeneralPrinterName - section 6 [RFC3805] -->

<!-- list of services (by ID/name/URI) subordinate to this service  REQUIRED - MAY be multi-valued -->

<!-- list of devices (by ID/name/URI) subordinate to this service  REQUIRED - MAY be multi-valued -->

<!-- list of subunits (by ID) supported by this service,  REQUIRED - MAY be multi-valued  see Printer Sub-Units - section 2.2 [RFC3805] -->

<!--  document formats supported by this service REQUIRED - MAY be multi-valued  see document-format-supported - section 4.4.22 [RFC2911] -->

<!-- list of resources (by ID/name/URI) supported by this service  OPTIONAL - MAY be multi-valued see ResourceId in Resource XML schema  see ResourceName in Resource XML schema -->

<xs:any namespace="##local" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

<!-- MfdServiceDescription - group -->
</xs:complexType>
