Documentation for Semantic Model 3
Definition Type: ComplexType
Name: Monitoring
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Counter.xsd
Abstract

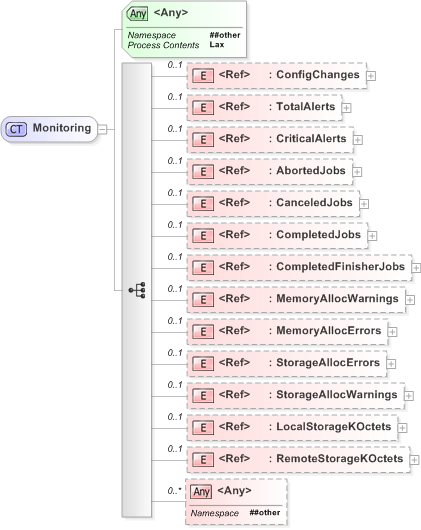

Collapse XSD Schema Diagram:
Drilldown into RemoteStorageKOctets Drilldown into LocalStorageKOctets Drilldown into StorageAllocWarnings Drilldown into StorageAllocErrors Drilldown into MemoryAllocErrors Drilldown into MemoryAllocWarnings Drilldown into CompletedFinisherJobs Drilldown into CompletedJobs Drilldown into CanceledJobs Drilldown into AbortedJobs Drilldown into CriticalAlerts Drilldown into TotalAlerts Drilldown into ConfigChangesXSD Diagram of Monitoring
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="Monitoring">
    <xs:sequence>
        <xs:element ref="ConfigChanges" minOccurs="0" />
        <xs:element ref="TotalAlerts" minOccurs="0" />
        <xs:element ref="CriticalAlerts" minOccurs="0" />
        <xs:element ref="AbortedJobs" minOccurs="0" />
        <xs:element ref="CanceledJobs" minOccurs="0" />
        <xs:element ref="CompletedJobs" minOccurs="0" />
        <xs:element ref="CompletedFinisherJobs" minOccurs="0" />
        <xs:element ref="MemoryAllocWarnings" minOccurs="0" />
        <xs:element ref="MemoryAllocErrors" minOccurs="0" />
        <xs:element ref="StorageAllocErrors" minOccurs="0" />
        <xs:element ref="StorageAllocWarnings" minOccurs="0" />
        <xs:element ref="LocalStorageKOctets" minOccurs="0" />
        <xs:element ref="RemoteStorageKOctets" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConfigChanges pwg:ConfigChanges 0 (1)
TotalAlerts pwg:TotalAlerts 0 (1)
CriticalAlerts pwg:CriticalAlerts 0 (1)
AbortedJobs pwg:AbortedJobs 0 (1)
CanceledJobs pwg:CanceledJobs 0 (1)
CompletedJobs pwg:CompletedJobs 0 (1)
CompletedFinisherJobs pwg:CompletedFinisherJobs 0 (1)
MemoryAllocWarnings pwg:MemoryAllocWarnings 0 (1)
MemoryAllocErrors pwg:MemoryAllocErrors 0 (1)
StorageAllocErrors pwg:StorageAllocErrors 0 (1)
StorageAllocWarnings pwg:StorageAllocWarnings 0 (1)
LocalStorageKOctets pwg:LocalStorageKOctets 0 (1)
RemoteStorageKOctets pwg:RemoteStorageKOctets 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:Monitoring
