Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ScanCountersType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Counter.xsd
Abstract

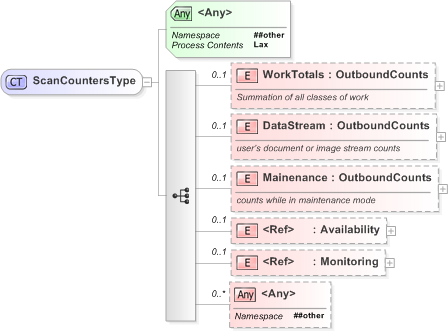

Collapse XSD Schema Diagram:
Drilldown into Monitoring Drilldown into Availability Drilldown into Mainenance Drilldown into DataStream Drilldown into WorkTotalsXSD Diagram of ScanCountersType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ScanCountersType">
    <xs:sequence>
        <xs:element name="WorkTotals" type="OutboundCounts" minOccurs="0">
            <xs:annotation>
                <xs:documentation>Summation of all classes of work</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="DataStream" type="OutboundCounts" minOccurs="0">
            <xs:annotation>
                <xs:documentation>user’s document or image stream counts</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Mainenance" type="OutboundCounts" minOccurs="0">
            <xs:annotation>
                <xs:documentation>counts while in maintenance mode </xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="Availability" minOccurs="0" />
        <xs:element ref="Monitoring" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WorkTotals pwg:WorkTotals 0 (1)
DataStream pwg:DataStream 0 (1)
Mainenance pwg:Mainenance 0 (1)
Availability pwg:Availability 0 (1)
Monitoring pwg:Monitoring 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ScanDocumentCounters, pwg:ScanJobCounters, pwg:ScanServiceCounters
