PwgSmRev1-185 - EmailOutDocumentDescriptionType

complexType EmailOutDocumentDescriptionType

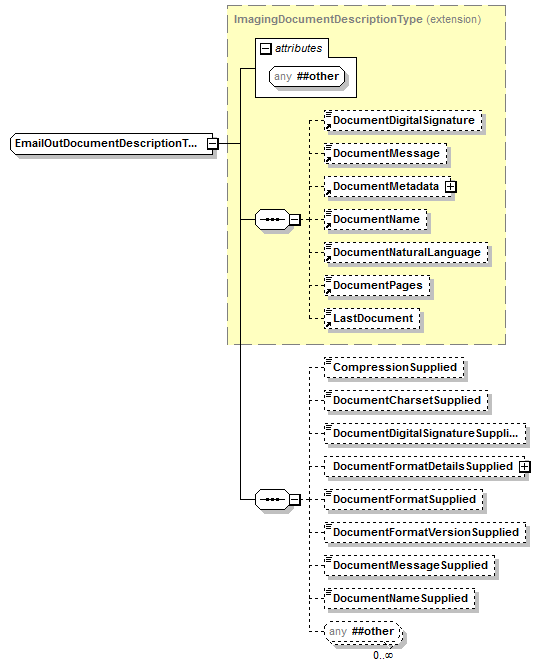

diagram PwgSmRev1-185_p1879.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of ImagingDocumentDescriptionType
properties
base ImagingDocumentDescriptionType
children DocumentDigitalSignature DocumentMessage DocumentMetadata DocumentName DocumentNaturalLanguage DocumentPages LastDocument CompressionSupplied DocumentCharsetSupplied DocumentDigitalSignatureSupplied DocumentFormatDetailsSupplied DocumentFormatSupplied DocumentFormatVersionSupplied DocumentMessageSupplied DocumentNameSupplied
used by
element EmailOutDocumentDescription
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="EmailOutDocumentDescriptionType">

<xs:complexContent>

<xs:extension base="ImagingDocumentDescriptionType">

<xs:sequence>

<!-- EmailOut Document description references here -->

<xs:element name="CompressionSupplied" type="CompressionType" minOccurs="0"/>

<xs:element name="DocumentCharsetSupplied" type="CharsetType" minOccurs="0"/>

<xs:element name="DocumentDigitalSignatureSupplied" type="DocumentDigitalSignatureType" minOccurs="0"/>

<xs:element name="DocumentFormatDetailsSupplied" type="DocumentFormatDetailsType" minOccurs="0"/>

<xs:element name="DocumentFormatSupplied" type="DocumentFormatType" minOccurs="0"/>

<xs:element name="DocumentFormatVersionSupplied" type="xs:string" minOccurs="0"/>

<xs:element name="DocumentMessageSupplied" type="xs:string" minOccurs="0"/>

<xs:element name="DocumentNameSupplied" type="xs:string" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

<!-- EmailOutDocumentDescription - group -->
</xs:complexType>

element EmailOutDocumentDescriptionType/CompressionSupplied
diagram PwgSmRev1-185_p1880.png
namespace http://www.pwg.org/schemas/2012/12/sm
type CompressionType
properties
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobDescription
complexTypes FaxOutJobDescriptionType PrintDocumentDescriptionType PrintJobDescriptionType TransformDocumentDescriptionType
source <xs:element name="CompressionSupplied" type="CompressionType" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentCharsetSupplied
diagram PwgSmRev1-185_p1881.png
namespace http://www.pwg.org/schemas/2012/12/sm
type CharsetType
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintDocumentDescriptionType PrintJobDescriptionType TransformDocumentDescriptionType
source <xs:element name="DocumentCharsetSupplied" type="CharsetType" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentDigitalSignatureSupplied
diagram PwgSmRev1-185_p1882.png
namespace http://www.pwg.org/schemas/2012/12/sm
type DocumentDigitalSignatureType
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintJobDescriptionType
source <xs:element name="DocumentDigitalSignatureSupplied" type="DocumentDigitalSignatureType" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentFormatDetailsSupplied
diagram PwgSmRev1-185_p1883.png
namespace http://www.pwg.org/schemas/2012/12/sm
type DocumentFormatDetailsType
properties
minOcc 0
maxOcc 1
content complex
children DocumentFormat DocumentFormatDeviceId DocumentFormatVersion DocumentNaturalLanguage DocumentSourceApplicationName DocumentSourceApplicationVersion DocumentSourceOsName DocumentSourceOsVersion
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintDocumentDescriptionType PrintJobDescriptionType TransformDocumentDescriptionType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="DocumentFormatDetailsSupplied" type="DocumentFormatDetailsType" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentFormatSupplied
diagram PwgSmRev1-185_p1884.png
namespace http://www.pwg.org/schemas/2012/12/sm
type DocumentFormatType
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintDocumentDescriptionType PrintJobDescriptionType TransformDocumentDescriptionType
source <xs:element name="DocumentFormatSupplied" type="DocumentFormatType" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentFormatVersionSupplied
diagram PwgSmRev1-185_p1885.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintDocumentDescriptionType PrintJobDescriptionType TransformDocumentDescriptionType
source <xs:element name="DocumentFormatVersionSupplied" type="xs:string" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentMessageSupplied
diagram PwgSmRev1-185_p1886.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintJobDescriptionType
source <xs:element name="DocumentMessageSupplied" type="xs:string" minOccurs="0"/>

element EmailOutDocumentDescriptionType/DocumentNameSupplied
diagram PwgSmRev1-185_p1887.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentDescription ServiceSpecificJobDescription
complexTypes FaxOutDocumentDescriptionType FaxOutJobDescriptionType PrintJobDescriptionType
source <xs:element name="DocumentNameSupplied" type="xs:string" minOccurs="0"/>
