PwgSmRev1-185 - GetFaxOutJobHistoryResponseType

complexType GetFaxOutJobHistoryResponseType
diagram PwgSmRev1-185_p3509.png
namespace http://www.pwg.org/schemas/2012/12/sm
children JobHistory ElementsNaturalLanguage
used by
element GetFaxOutJobHistoryResponse
source <xs:complexType name="GetFaxOutJobHistoryResponseType">
  <xs:sequence>
    <xs:element name="JobHistory" type="ListOfFaxOutJobSummarysType"/>
    <xs:element ref="ElementsNaturalLanguage" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element GetFaxOutJobHistoryResponseType/JobHistory

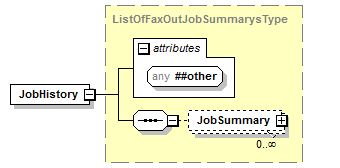

diagram PwgSmRev1-185_p3510.png
namespace http://www.pwg.org/schemas/2012/12/sm
type ListOfFaxOutJobSummarysType
properties
content complex
children JobSummary
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="JobHistory" type="ListOfFaxOutJobSummarysType"/>
