PwgSmRev1-185 - GetFetchablePrintJobsResponseType

complexType GetFetchablePrintJobsResponseType
diagram PwgSmRev1-185_p3770.png
namespace http://www.pwg.org/schemas/2012/12/sm
children PrinterWithJobs
used by
element GetFetchablePrintJobsResponse
source <xs:complexType name="GetFetchablePrintJobsResponseType">

<xs:sequence>

<xs:element name="PrinterWithJobs" maxOccurs="unbounded">

<xs:complexType>

<xs:sequence>

<xs:element ref="DestinationServiceUuid"/>

<xs:element name="AvailableJobs">

<xs:complexType>

<xs:sequence>

<xs:element name="AvailablePrintJobSummary" type="AvailablePrintJobSummaryType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="SourceServiceUuid"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>
</xs:complexType>

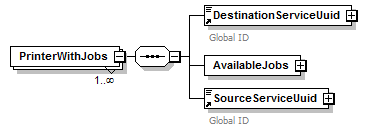

element GetFetchablePrintJobsResponseType/PrinterWithJobs
diagram PwgSmRev1-185_p3771.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 1
maxOcc unbounded
content complex
children DestinationServiceUuid AvailableJobs SourceServiceUuid
source <xs:element name="PrinterWithJobs" maxOccurs="unbounded">

<xs:complexType>

<xs:sequence>

<xs:element ref="DestinationServiceUuid"/>

<xs:element name="AvailableJobs">

<xs:complexType>

<xs:sequence>

<xs:element name="AvailablePrintJobSummary" type="AvailablePrintJobSummaryType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="SourceServiceUuid"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element GetFetchablePrintJobsResponseType/PrinterWithJobs/AvailableJobs
diagram PwgSmRev1-185_p3772.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children AvailablePrintJobSummary
source <xs:element name="AvailableJobs">

<xs:complexType>

<xs:sequence>

<xs:element name="AvailablePrintJobSummary" type="AvailablePrintJobSummaryType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element GetFetchablePrintJobsResponseType/PrinterWithJobs/AvailableJobs/AvailablePrintJobSummary
diagram PwgSmRev1-185_p3773.png
namespace http://www.pwg.org/schemas/2012/12/sm
type AvailablePrintJobSummaryType
properties
minOcc 1
maxOcc unbounded
content complex
children Copies Finishings Impressions KOctets Media MediaType MediaCol SourceJobUuid OtherElements
source <xs:element name="AvailablePrintJobSummary" type="AvailablePrintJobSummaryType" maxOccurs="unbounded"/>
