PwgSmRev1-185 - PrintDocumentProcessingCapabilitiesType

complexType PrintDocumentProcessingCapabilitiesType
diagram PwgSmRev1-185_p3041.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of ImagingDocumentProcessingCapabilitiesType
properties
base ImagingDocumentProcessingCapabilitiesType
children NumberUp PresentationDirectionNumberUp Copies CoverBack CoverFront DocumentPassword FeedOrientation Finishings FinishingsCol FontNameRequested FontSizeRequested ForceFrontSide ImpositionTemplate InsertSheets Media MediaType MediaColDatabase MediaColSupported MediaInputTrayCheck OrientationRequested OutputBin OutputDevice PageDelivery PageRanges PagesPerSubset PdlInitFile PrintColorMode PrintContentOptimize PrintRenderingIntent Quality Resolution SeparatorSheets SheetCollate Sides XImagePosition XImageShift XSide1ImageShift XSide2ImageShift YImagePosition YImageShift YSide1ImageShift YSide2ImageShift
used by
element PrintDocumentProcessingCapabilities
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:complexType name="PrintDocumentProcessingCapabilitiesType">

<xs:complexContent>

<xs:extension base="ImagingDocumentProcessingCapabilitiesType">

<xs:sequence>

<xs:element name="Copies" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="CoverBack" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="CoverTypeWKV" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="CoverFront" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="CoverTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="DocumentPassword" type="xs:int" minOccurs="0"/>

<xs:element name="FeedOrientation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FeedOrientationWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Finishings" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FinishingsWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FinishingsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="FinishingTemplate" type="xs:boolean" minOccurs="0"/>

<xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="StitchingReferenceEdgeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FontNameRequested" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FontSizeRequested" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="ForceFrontSide" type="xs:boolean" minOccurs="0"/>

<xs:element name="ImpositionTemplate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="InsertSheets" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0">

<xs:element name="InsertSheet" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0">

<xs:element name="InsertAfterPageNumber" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="InsertCount" type="RangeOfIntType" minOccurs="0"/>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element ref="MediaColDatabase" minOccurs="0"/>

</xs:sequence>

<xs:element ref="MediaColSupported" minOccurs="0"/>

<xs:element name="MediaInputTrayCheck" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaInputTrayWKV MediaNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="OrientationRequested" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="OrientationRequestedType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="OutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="OutputBinWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="OutputDevice" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PageDelivery" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PageDeliveryWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PageRanges" type="xs:boolean" minOccurs="0"/>

<xs:element name="PagesPerSubset" type="xs:boolean" minOccurs="0"/>

<xs:element name="PdlInitFile" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="PdlInitFileLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PdlInitFileName" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="PdlInitFileNameSubdirectory" type="xs:boolean"/>

</xs:complexType>

</xs:element>

<xs:element name="PdlInitFileEntry" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PrintColorMode" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintColorModeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PrintContentOptimize" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintContentOptimizeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PrintRenderingIntent" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="PrintRenderingIntentType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Quality" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintQualityWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Resolution" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:complexType>

<xs:sequence>

<xs:element name="CrossFeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="Units"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SeparatorSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SeparatorSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SeparatorSheetsTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="SheetCollate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SheetCollateWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Sides" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SidesWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="XImagePosition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="XImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="XImageShift" type="RangeOfIntType" minOccurs="0"/>

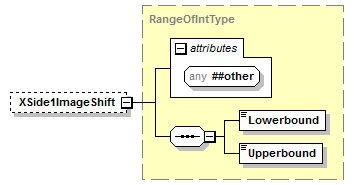

<xs:element name="XSide1ImageShift" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="XSide2ImageShift" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="YImagePosition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="YImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="YImageShift" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="YSide1ImageShift" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="YSide2ImageShift" type="RangeOfIntType" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element PrintDocumentProcessingCapabilitiesType/Copies
diagram PwgSmRev1-185_p3042.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="Copies" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverBack
diagram PwgSmRev1-185_p3043.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource MediaCol
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="CoverBack" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="CoverTypeWKV" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverBack/CoverType
diagram PwgSmRev1-185_p3044.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="CoverTypeWKV" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverBack/CoverType/AllowedValue
diagram PwgSmRev1-185_p3045.png
namespace http://www.pwg.org/schemas/2012/12/sm
type CoverTypeWKV
properties
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value Annotation
maxLength 255
enumeration NoCover
enumeration PrintBack
enumeration PrintBoth
enumeration PrintFront
enumeration PrintNone
source <xs:element name="AllowedValue" type="CoverTypeWKV" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/CoverBack/Media
diagram PwgSmRev1-185_p3046.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverBack/MediaType
diagram PwgSmRev1-185_p3047.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverBack/MediaSource
diagram PwgSmRev1-185_p3048.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverBack/MediaSource/AllowedValue
diagram PwgSmRev1-185_p3049.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverBack/MediaCol
diagram PwgSmRev1-185_p3050.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverFront
diagram PwgSmRev1-185_p3051.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource MediaCol
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="CoverFront" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="CoverTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverFront/CoverType
diagram PwgSmRev1-185_p3052.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="CoverTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverFront/CoverType/AllowedValue
diagram PwgSmRev1-185_p3053.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (CoverTypeWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="CoverTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverFront/Media
diagram PwgSmRev1-185_p3054.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverFront/MediaType
diagram PwgSmRev1-185_p3055.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/CoverFront/MediaSource
diagram PwgSmRev1-185_p3056.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverFront/MediaSource/AllowedValue
diagram PwgSmRev1-185_p3057.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/CoverFront/MediaCol
diagram PwgSmRev1-185_p3058.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/DocumentPassword
diagram PwgSmRev1-185_p3059.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:int
properties
minOcc 0
maxOcc 1
content simple
used by
complexTypes CreateFaxOutJobRequestType CreatePrintJobRequestType CreateScanJobRequestType CreateTransformJobRequestType FetchPrintDocumentResponseType FetchPrintJobResponseType PrintJobRequestType PrintUriRequestType SendFaxOutDocumentRequestType SendFaxOutUriRequestType SendPrintDocumentRequestType SendPrintUriRequestType SendTransformDocumentRequestType SendTransformUriRequestType ValidateFaxOutDocumentTicketRequestType ValidateFaxOutJobTicketRequestType ValidatePrintDocumentTicketRequestType ValidatePrintJobTicketRequestType ValidateScanDocumentTicketRequestType ValidateScanJobTicketRequestType ValidateTransformDocumentTicketRequestType ValidateTransformJobTicketRequestType
source <xs:element name="DocumentPassword" type="xs:int" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/FeedOrientation
diagram PwgSmRev1-185_p3060.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="FeedOrientation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FeedOrientationWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FeedOrientation/AllowedValue
diagram PwgSmRev1-185_p3061.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (FeedOrientationWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FeedOrientationWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Finishings
diagram PwgSmRev1-185_p3062.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="Finishings" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FinishingsWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Finishings/AllowedValue
diagram PwgSmRev1-185_p3063.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (FinishingsWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="FinishingsWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol
diagram PwgSmRev1-185_p3064.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children FinishingTemplate Stitching
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="FinishingsCol" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="FinishingTemplate" type="xs:boolean" minOccurs="0"/>

<xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="StitchingReferenceEdgeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/FinishingTemplate
diagram PwgSmRev1-185_p3065.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
complexType FinishingsColType
source <xs:element name="FinishingTemplate" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/Stitching
diagram PwgSmRev1-185_p3066.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children StitchingLocations StitchingOffset StitchingReferenceEdge
used by
complexType FinishingsColType
source <xs:element name="Stitching" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>

<xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="StitchingReferenceEdgeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/Stitching/StitchingLocations
diagram PwgSmRev1-185_p3067.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SetOfRangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Range
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/Stitching/StitchingOffset
diagram PwgSmRev1-185_p3068.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SetOfRangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Range
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/Stitching/StitchingReferenceEdge
diagram PwgSmRev1-185_p3069.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType StitchingType
source <xs:element name="StitchingReferenceEdge" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="StitchingReferenceEdgeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FinishingsCol/Stitching/StitchingReferenceEdge/AllowedValues
diagram PwgSmRev1-185_p3070.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (StitchingReferenceEdgeWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="StitchingReferenceEdgeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FontNameRequested
diagram PwgSmRev1-185_p3071.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="FontNameRequested" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/FontNameRequested/AllowedValue
diagram PwgSmRev1-185_p3072.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/FontSizeRequested
diagram PwgSmRev1-185_p3073.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SetOfRangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Range
used by
element ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="FontSizeRequested" type="SetOfRangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/ForceFrontSide
diagram PwgSmRev1-185_p3074.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexType PrintDocumentProcessingType
source <xs:element name="ForceFrontSide" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/ImpositionTemplate
diagram PwgSmRev1-185_p3075.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="ImpositionTemplate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/ImpositionTemplate/AllowedValues
diagram PwgSmRev1-185_p3076.png
namespace http://www.pwg.org/schemas/2012/12/sm
type restriction of xs:string
properties
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value Annotation
maxLength 255
source <xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/InsertSheets
diagram PwgSmRev1-185_p3077.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children InsertSheet
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="InsertSheets" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0">

<xs:element name="InsertSheet" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0">

<xs:element name="InsertAfterPageNumber" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="InsertCount" type="RangeOfIntType" minOccurs="0"/>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet
diagram PwgSmRev1-185_p3078.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children InsertAfterPageNumber InsertCount Media MediaType MediaSource MediaCol
used by
complexType InsertSheetsType
source <xs:element name="InsertSheet" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="0">

<xs:element name="InsertAfterPageNumber" type="RangeOfIntType" minOccurs="0"/>

<xs:element name="InsertCount" type="RangeOfIntType" minOccurs="0"/>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/InsertAfterPageNumber
diagram PwgSmRev1-185_p3079.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType InsertSheetType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="InsertAfterPageNumber" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/InsertCount
diagram PwgSmRev1-185_p3080.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType InsertSheetType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="InsertCount" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/Media
diagram PwgSmRev1-185_p3081.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/MediaType
diagram PwgSmRev1-185_p3082.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/MediaSource
diagram PwgSmRev1-185_p3083.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/MediaSource/AllowedValue
diagram PwgSmRev1-185_p3084.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/InsertSheets/InsertSheet/MediaCol
diagram PwgSmRev1-185_p3085.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/Media
diagram PwgSmRev1-185_p3086.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/MediaType
diagram PwgSmRev1-185_p3087.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/MediaInputTrayCheck
diagram PwgSmRev1-185_p3088.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexType PrintDocumentProcessingType
source <xs:element name="MediaInputTrayCheck" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaInputTrayWKV MediaNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/MediaInputTrayCheck/AllowedValue
diagram PwgSmRev1-185_p3089.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaInputTrayWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaInputTrayWKV MediaNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/OrientationRequested
diagram PwgSmRev1-185_p3090.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaBox ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="OrientationRequested" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="OrientationRequestedType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/OrientationRequested/AllowedValue
diagram PwgSmRev1-185_p3091.png
namespace http://www.pwg.org/schemas/2012/12/sm
type OrientationRequestedType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="OrientationRequestedType" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/OutputBin
diagram PwgSmRev1-185_p3092.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes CopyJobProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="OutputBin" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="OutputBinWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/OutputBin/AllowedValue
diagram PwgSmRev1-185_p3093.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (OutputBinWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="OutputBinWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/OutputDevice
diagram PwgSmRev1-185_p3094.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="OutputDevice" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/OutputDevice/AllowedValue
diagram PwgSmRev1-185_p3095.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="xs:string" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/PageDelivery
diagram PwgSmRev1-185_p3096.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="PageDelivery" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PageDeliveryWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PageDelivery/AllowedValue
diagram PwgSmRev1-185_p3097.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (PageDeliveryWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PageDeliveryWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PageRanges
diagram PwgSmRev1-185_p3098.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="PageRanges" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/PagesPerSubset
diagram PwgSmRev1-185_p3099.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="PagesPerSubset" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile
diagram PwgSmRev1-185_p3100.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children PdlInitFileLocation PdlInitFileName PdlInitFileEntry
source <xs:element name="PdlInitFile" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="PdlInitFileLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="PdlInitFileName" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="PdlInitFileNameSubdirectory" type="xs:boolean"/>

</xs:complexType>

</xs:element>

<xs:element name="PdlInitFileEntry" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileLocation
diagram PwgSmRev1-185_p3101.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
source <xs:element name="PdlInitFileLocation" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileLocation/AllowedValues
diagram PwgSmRev1-185_p3102.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileName
diagram PwgSmRev1-185_p3103.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
attributes
Name  Type  Use  Default  Fixed  Annotation
PdlInitFileNameSubdirectory  xs:boolean
source <xs:element name="PdlInitFileName" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute name="PdlInitFileNameSubdirectory" type="xs:boolean"/>

</xs:complexType>
</xs:element>

attribute PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileName/@PdlInitFileNameSubdirectory
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
source <xs:attribute name="PdlInitFileNameSubdirectory" type="xs:boolean"/>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileName/AllowedValues
diagram PwgSmRev1-185_p3104.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileEntry
diagram PwgSmRev1-185_p3105.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
source <xs:element name="PdlInitFileEntry" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PdlInitFile/PdlInitFileEntry/AllowedValues
diagram PwgSmRev1-185_p3106.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:string
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/PrintColorMode
diagram PwgSmRev1-185_p3107.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes FaxInDocumentProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType
annotation
documentation
JPS3
source <xs:element name="PrintColorMode" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintColorModeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PrintColorMode/AllowedValue
diagram PwgSmRev1-185_p3108.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (PrintColorModeWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintColorModeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PrintContentOptimize
diagram PwgSmRev1-185_p3109.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="PrintContentOptimize" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintContentOptimizeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PrintContentOptimize/AllowedValue
diagram PwgSmRev1-185_p3110.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (PrintContentOptimizeWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintContentOptimizeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PrintRenderingIntent
diagram PwgSmRev1-185_p3111.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
annotation
documentation
JPS3
source <xs:element name="PrintRenderingIntent" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="PrintRenderingIntentType" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/PrintRenderingIntent/AllowedValue
diagram PwgSmRev1-185_p3112.png
namespace http://www.pwg.org/schemas/2012/12/sm
type PrintRenderingIntentType
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="PrintRenderingIntentType" maxOccurs="unbounded"/>

element PrintDocumentProcessingCapabilitiesType/Quality
diagram PwgSmRev1-185_p3113.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes FaxOutDocumentProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="Quality" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintQualityWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Quality/AllowedValue
diagram PwgSmRev1-185_p3114.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (PrintQualityWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="PrintQualityWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Resolution
diagram PwgSmRev1-185_p3115.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
elements CopyInput CopyOutput PrintJobCreationElements/PwgRasterDocumentResolutionSupported ServiceSpecificDocumentProcessing
complexTypes FaxInDocumentProcessingType FaxOutDocumentProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ScanDocumentProcessingType TransformDocumentProcessingType
source <xs:element name="Resolution" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:complexType>

<xs:sequence>

<xs:element name="CrossFeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="Units"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Resolution/AllowedValues
diagram PwgSmRev1-185_p3116.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 1
maxOcc unbounded
content complex
children CrossFeedDir FeedDir Units
source <xs:element name="AllowedValues" maxOccurs="unbounded">

<xs:complexType>

<xs:sequence>

<xs:element name="CrossFeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="FeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element ref="Units"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Resolution/AllowedValues/CrossFeedDir
diagram PwgSmRev1-185_p3117.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children AllowedValue
source <xs:element name="CrossFeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Resolution/AllowedValues/CrossFeedDir/AllowedValue
diagram PwgSmRev1-185_p3118.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:int
properties
content simple
source <xs:element name="AllowedValue" type="xs:int"/>

element PrintDocumentProcessingCapabilitiesType/Resolution/AllowedValues/FeedDir
diagram PwgSmRev1-185_p3119.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children AllowedValue
source <xs:element name="FeedDir">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" type="xs:int"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Resolution/AllowedValues/FeedDir/AllowedValue
diagram PwgSmRev1-185_p3120.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:int
properties
content simple
source <xs:element name="AllowedValue" type="xs:int"/>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets
diagram PwgSmRev1-185_p3121.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children SeparatorSheetsType Media MediaType MediaSource MediaCol
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="SeparatorSheets" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="SeparatorSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SeparatorSheetsTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:sequence minOccurs="0">

<xs:sequence minOccurs="0">

<xs:sequence>

<xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

<xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

</xs:sequence>

<xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

</xs:sequence>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/SeparatorSheetsType
diagram PwgSmRev1-185_p3122.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType SeparatorSheetsType
source <xs:element name="SeparatorSheetsType" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SeparatorSheetsTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/SeparatorSheetsType/AllowedValue
diagram PwgSmRev1-185_p3123.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (SeparatorSheetsTypeWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SeparatorSheetsTypeWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/Media
diagram PwgSmRev1-185_p3124.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/MediaType
diagram PwgSmRev1-185_p3125.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaTypeSupportedType
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/MediaSource
diagram PwgSmRev1-185_p3126.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificServiceDescription/MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">

<xs:annotation>

<xs:documentation>JPS3</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/MediaSource/AllowedValue
diagram PwgSmRev1-185_p3127.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SeparatorSheets/MediaCol
diagram PwgSmRev1-185_p3128.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/SheetCollate
diagram PwgSmRev1-185_p3129.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="SheetCollate" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SheetCollateWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/SheetCollate/AllowedValue
diagram PwgSmRev1-185_p3130.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (SheetCollateWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SheetCollateWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Sides
diagram PwgSmRev1-185_p3131.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyInput CopyOutput ServiceSpecificDocumentProcessing
complexTypes FaxOutDocumentProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ScanDocumentProcessingType
source <xs:element name="Sides" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SidesWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/Sides/AllowedValue
diagram PwgSmRev1-185_p3132.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (SidesWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="SidesWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/XImagePosition
diagram PwgSmRev1-185_p3133.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="XImagePosition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="XImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/XImagePosition/AllowedValue
diagram PwgSmRev1-185_p3134.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (XImagePositionWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="XImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/XImageShift
diagram PwgSmRev1-185_p3135.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="XImageShift" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/XSide1ImageShift
diagram PwgSmRev1-185_p3136.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="XSide1ImageShift" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/XSide2ImageShift
diagram PwgSmRev1-185_p3137.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="XSide2ImageShift" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/YImagePosition
diagram PwgSmRev1-185_p3138.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
source <xs:element name="YImagePosition" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="YImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/YImagePosition/AllowedValue
diagram PwgSmRev1-185_p3139.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (YImagePositionWKV, KeywordNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">

<xs:simpleType>

<xs:union memberTypes="YImagePositionWKV KeywordNsExtensionPattern"/>

</xs:simpleType>
</xs:element>

element PrintDocumentProcessingCapabilitiesType/YImageShift
diagram PwgSmRev1-185_p3140.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="YImageShift" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/YSide1ImageShift
diagram PwgSmRev1-185_p3141.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="YSide1ImageShift" type="RangeOfIntType" minOccurs="0"/>

element PrintDocumentProcessingCapabilitiesType/YSide2ImageShift
diagram PwgSmRev1-185_p3142.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="YSide2ImageShift" type="RangeOfIntType" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
