PwgSmRev1-185 - TransformServiceType

complexType TransformServiceType

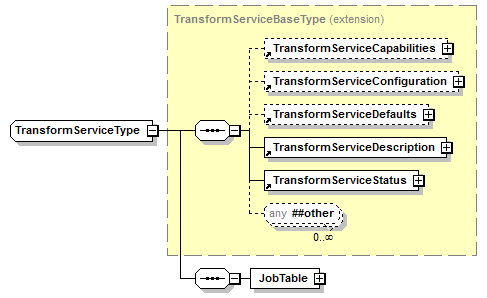

diagram PwgSmRev1-185_p1624.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of TransformServiceBaseType
properties
base TransformServiceBaseType
children TransformServiceCapabilities TransformServiceConfiguration TransformServiceDefaults TransformServiceDescription TransformServiceStatus JobTable
used by
element TransformService
source <xs:complexType name="TransformServiceType">

<xs:complexContent>

<xs:extension base="TransformServiceBaseType">

<xs:sequence>

<xs:element name="JobTable">

<xs:complexType>

<xs:sequence>

<xs:element name="ActiveJobs" type="TransformJobsType"/>

<xs:element name="JobHistory" type="TransformJobsType" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element TransformServiceType/JobTable
diagram PwgSmRev1-185_p1625.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children ActiveJobs JobHistory
source <xs:element name="JobTable">

<xs:complexType>

<xs:sequence>

<xs:element name="ActiveJobs" type="TransformJobsType"/>

<xs:element name="JobHistory" type="TransformJobsType" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element TransformServiceType/JobTable/ActiveJobs
diagram PwgSmRev1-185_p1626.png
namespace http://www.pwg.org/schemas/2012/12/sm
type TransformJobsType
properties
content complex
children TransformJob
source <xs:element name="ActiveJobs" type="TransformJobsType"/>

element TransformServiceType/JobTable/JobHistory
diagram PwgSmRev1-185_p1627.png
namespace http://www.pwg.org/schemas/2012/12/sm
type TransformJobsType
properties
minOcc 0
maxOcc 1
content complex
children TransformJob
source <xs:element name="JobHistory" type="TransformJobsType" minOccurs="0"/>
