PwgSmRev1-185 - FaxOutDocumentTicketCapabilitiesType

complexType FaxOutDocumentTicketCapabilitiesType
diagram PwgSmRev1-185_p2133.png
namespace http://www.pwg.org/schemas/2012/12/sm
children FaxOutDocumentDescriptionCapabilities FaxOutDocumentProcessingCapabilities
used by
element FaxOutDocumentTicketCapabilities
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:complexType name="FaxOutDocumentTicketCapabilitiesType">

<xs:sequence>

<xs:element name="FaxOutDocumentDescriptionCapabilities" type="FaxOutDocumentDescriptionCapabilitiesType" minOccurs="0"/>

<xs:element ref="FaxOutDocumentProcessingCapabilities" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:attribute ref="MustHonor"/>

<xs:anyAttribute namespace="##other"/>
</xs:complexType>

element FaxOutDocumentTicketCapabilitiesType/FaxOutDocumentDescriptionCapabilities

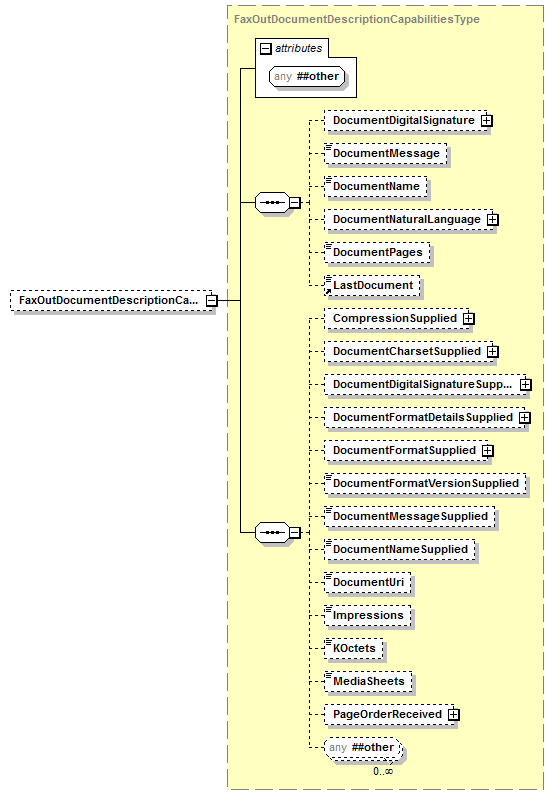

diagram PwgSmRev1-185_p2134.png
namespace http://www.pwg.org/schemas/2012/12/sm
type FaxOutDocumentDescriptionCapabilitiesType
properties
minOcc 0
maxOcc 1
content complex
children DocumentDigitalSignature DocumentMessage DocumentName DocumentNaturalLanguage DocumentPages LastDocument CompressionSupplied DocumentCharsetSupplied DocumentDigitalSignatureSupplied DocumentFormatDetailsSupplied DocumentFormatSupplied DocumentFormatVersionSupplied DocumentMessageSupplied DocumentNameSupplied DocumentUri Impressions KOctets MediaSheets PageOrderReceived
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="FaxOutDocumentDescriptionCapabilities" type="FaxOutDocumentDescriptionCapabilitiesType" minOccurs="0"/>
