PwgPrintJobTicket_v1.0 - PrintJobDescriptionCapabilitiesType

complexType PrintJobDescriptionCapabilitiesType

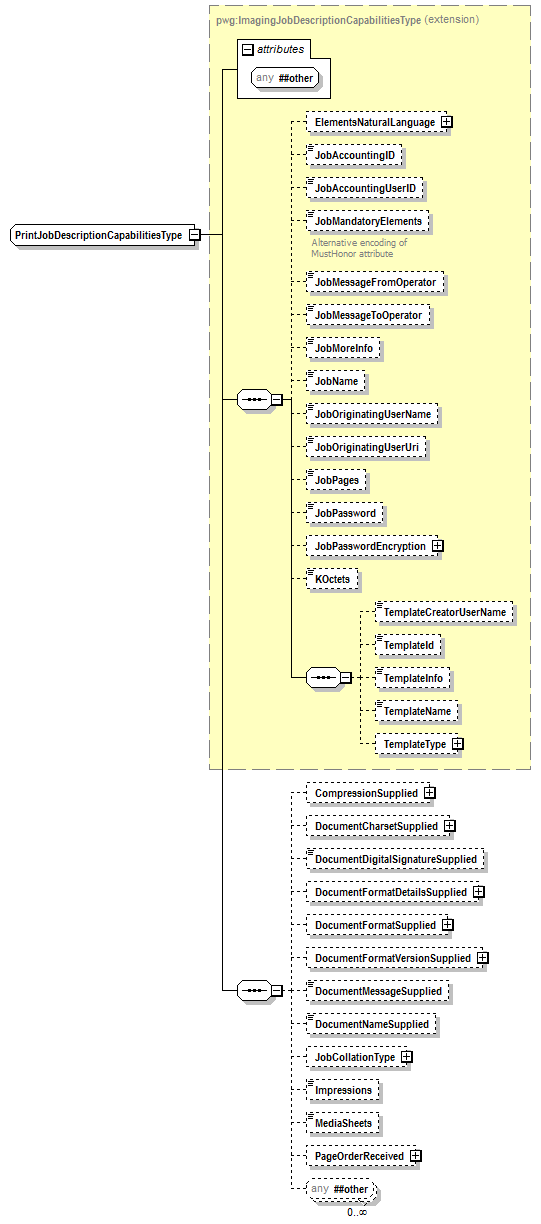

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	extension of ImagingJobDescriptionCapabilitiesType
properties	base  pwg:ImagingJobDescriptionCapabilitiesType
children	ElementsNaturalLanguage JobAccountingID JobAccountingUserID JobMandatoryElements JobMessageFromOperator JobMessageToOperator JobMoreInfo JobName JobOriginatingUserName JobOriginatingUserUri JobPages JobPassword JobPasswordEncryption KOctets TemplateCreatorUserName TemplateId TemplateInfo TemplateName TemplateType CompressionSupplied DocumentCharsetSupplied DocumentDigitalSignatureSupplied DocumentFormatDetailsSupplied DocumentFormatSupplied DocumentFormatVersionSupplied DocumentMessageSupplied DocumentNameSupplied JobCollationType Impressions MediaSheets PageOrderReceived
used by	element  PrintJobDescriptionCapabilities
attributes	Name   Type   Use   Default   Fixed   annotation
source	<xs:complexType name="PrintJobDescriptionCapabilitiesType">   <xs:complexContent>     <xs:extension base="pwg:ImagingJobDescriptionCapabilitiesType">       <xs:sequence>         <xs:element name="CompressionSupplied" type="CompressionSupportedType" minOccurs="0"/>         <xs:element name="DocumentCharsetSupplied" type="DocumentCharsetSupportedType" minOccurs="0"/>         <xs:element name="DocumentDigitalSignatureSupplied" type="xs:boolean" minOccurs="0"/>         <xs:element name="DocumentFormatDetailsSupplied" minOccurs="0">           <xs:complexType>             <xs:sequence>               <xs:element name="DocumentSourceApplicationName" type="xs:boolean" minOccurs="0"/>               <xs:element name="DocumentSourceApplicationVersion" type="xs:boolean" minOccurs="0"/>               <xs:element name="DocumentSourceOsName" minOccurs="0">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="AllowedValues" maxOccurs="unbounded">                       <xs:simpleType>                         <xs:union memberTypes="OperatingSystemNameWKV OperatingSystemNameExtensionPattern"/>                       </xs:simpleType>                     </xs:element>                   </xs:sequence>                 </xs:complexType>               </xs:element>               <xs:element name="DocumentSourceOsVersion" type="xs:boolean" minOccurs="0"/>               <xs:element name="DocumentFormat" minOccurs="0">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="AllowedValues" type="DocumentFormatType"/>                   </xs:sequence>                 </xs:complexType>               </xs:element>               <xs:element name="DocumentFormatDeviceId" type="xs:boolean" minOccurs="0"/>               <xs:element name="DocumentFormatVersion" type="xs:boolean" minOccurs="0"/>               <xs:element name="DocumentNaturalLanguage" minOccurs="0">                 <xs:complexType>                   <xs:sequence>                     <xs:element name="AllowedValues" type="NaturalLanguageType"/>                   </xs:sequence>                 </xs:complexType>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:element name="DocumentFormatSupplied" type="DocumentFormatSupportedType" minOccurs="0"/>         <xs:element name="DocumentFormatVersionSupplied" type="DocumentFormatVersionSupportedType" minOccurs="0"/>         <xs:element name="DocumentMessageSupplied" type="xs:boolean" minOccurs="0"/>         <xs:element name="DocumentNameSupplied" type="xs:boolean" minOccurs="0"/>         <xs:element name="JobCollationType" minOccurs="0">           <xs:complexType>             <xs:sequence>               <xs:element name="AllowedValue" maxOccurs="unbounded">                 <xs:simpleType>                   <xs:union memberTypes="JobCollationTypeWKV KeywordNsExtensionPattern"/>                 </xs:simpleType>               </xs:element>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:element name="Impressions" type="xs:boolean" minOccurs="0"/>         <xs:element name="MediaSheets" type="xs:boolean" minOccurs="0"/>         <xs:element name="PageOrderReceived" minOccurs="0">           <xs:complexType>             <xs:sequence>               <xs:element name="AllowedValue" type="PageOrderReceivedType" minOccurs="0"/>             </xs:sequence>           </xs:complexType>         </xs:element>         <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element PrintJobDescriptionCapabilitiesType/CompressionSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	CompressionSupportedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	element  ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="CompressionSupplied" type="CompressionSupportedType" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentCharsetSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	DocumentCharsetSupportedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	DocumentCharset
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="DocumentCharsetSupplied" type="DocumentCharsetSupportedType" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentDigitalSignatureSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexType  PrintJobDescriptionType
source	<xs:element name="DocumentDigitalSignatureSupplied" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	DocumentSourceApplicationName DocumentSourceApplicationVersion DocumentSourceOsName DocumentSourceOsVersion DocumentFormat DocumentFormatDeviceId DocumentFormatVersion DocumentNaturalLanguage
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="DocumentFormatDetailsSupplied" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="DocumentSourceApplicationName" type="xs:boolean" minOccurs="0"/>       <xs:element name="DocumentSourceApplicationVersion" type="xs:boolean" minOccurs="0"/>       <xs:element name="DocumentSourceOsName" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="AllowedValues" maxOccurs="unbounded">               <xs:simpleType>                 <xs:union memberTypes="OperatingSystemNameWKV OperatingSystemNameExtensionPattern"/>               </xs:simpleType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="DocumentSourceOsVersion" type="xs:boolean" minOccurs="0"/>       <xs:element name="DocumentFormat" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="AllowedValues" type="DocumentFormatType"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="DocumentFormatDeviceId" type="xs:boolean" minOccurs="0"/>       <xs:element name="DocumentFormatVersion" type="xs:boolean" minOccurs="0"/>       <xs:element name="DocumentNaturalLanguage" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="AllowedValues" type="NaturalLanguageType"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentSourceApplicationName

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentSourceApplicationName" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentSourceApplicationVersion

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentSourceApplicationVersion" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentSourceOsName

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValues
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentSourceOsName" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValues" maxOccurs="unbounded">         <xs:simpleType>           <xs:union memberTypes="OperatingSystemNameWKV OperatingSystemNameExtensionPattern"/>         </xs:simpleType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentSourceOsName/AllowedValues

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	union of (OperatingSystemNameWKV, OperatingSystemNameExtensionPattern)
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name="AllowedValues" maxOccurs="unbounded">   <xs:simpleType>     <xs:union memberTypes="OperatingSystemNameWKV OperatingSystemNameExtensionPattern"/>   </xs:simpleType> </xs:element>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentSourceOsVersion

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentSourceOsVersion" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentFormat

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValues
used by	elements  ResourceSummaryType/ResourceFormat ServiceSpecificDocumentProcessing complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentFormat" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValues" type="DocumentFormatType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentFormat/AllowedValues

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	DocumentFormatType
properties	isRef  0 content  simple
source	<xs:element name="AllowedValues" type="DocumentFormatType"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentFormatDeviceId

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentFormatDeviceId" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentFormatVersion

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	complexType  DocumentFormatDetailsType
source	<xs:element name="DocumentFormatVersion" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentNaturalLanguage

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValues
used by	complexTypes  DocumentFormatDetailsType ImagingDocumentDescriptionType
source	<xs:element name="DocumentNaturalLanguage" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValues" type="NaturalLanguageType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/DocumentFormatDetailsSupplied/DocumentNaturalLanguage/AllowedValues

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	NaturalLanguageType
properties	isRef  0 content  simple
source	<xs:element name="AllowedValues" type="NaturalLanguageType"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	DocumentFormatSupportedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="DocumentFormatSupplied" type="DocumentFormatSupportedType" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentFormatVersionSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	DocumentFormatVersionSupportedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="DocumentFormatVersionSupplied" type="DocumentFormatVersionSupportedType" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentMessageSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexType  PrintJobDescriptionType
source	<xs:element name="DocumentMessageSupplied" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/DocumentNameSupplied

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexType  PrintJobDescriptionType
source	<xs:element name="DocumentNameSupplied" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/JobCollationType

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	element  ServiceSpecificJobProcessing complexTypes  PrintJobDescriptionType PrintJobProcessingDefaultType PrintJobProcessingType
source	<xs:element name="JobCollationType" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValue" maxOccurs="unbounded">         <xs:simpleType>           <xs:union memberTypes="JobCollationTypeWKV KeywordNsExtensionPattern"/>         </xs:simpleType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/JobCollationType/AllowedValue

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	union of (JobCollationTypeWKV, KeywordNsExtensionPattern)
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name="AllowedValue" maxOccurs="unbounded">   <xs:simpleType>     <xs:union memberTypes="JobCollationTypeWKV KeywordNsExtensionPattern"/>   </xs:simpleType> </xs:element>

element PrintJobDescriptionCapabilitiesType/Impressions

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="Impressions" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/MediaSheets

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="MediaSheets" type="xs:boolean" minOccurs="0"/>

element PrintJobDescriptionCapabilitiesType/PageOrderReceived

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	elements  ServiceSpecificDocumentDescription ServiceSpecificJobDescription complexTypes  PrintDocumentDescriptionType PrintJobDescriptionType
source	<xs:element name="PageOrderReceived" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValue" type="PageOrderReceivedType" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element PrintJobDescriptionCapabilitiesType/PageOrderReceived/AllowedValue

diagram
namespace	http://www.pwg.org/schemas/2012/8/sm
type	PageOrderReceivedType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="AllowedValue" type="PageOrderReceivedType" minOccurs="0"/>
