PwgPrintJobTicket_v1.0 - PrintJobProcessingCapabilities

element PrintJobProcessingCapabilities

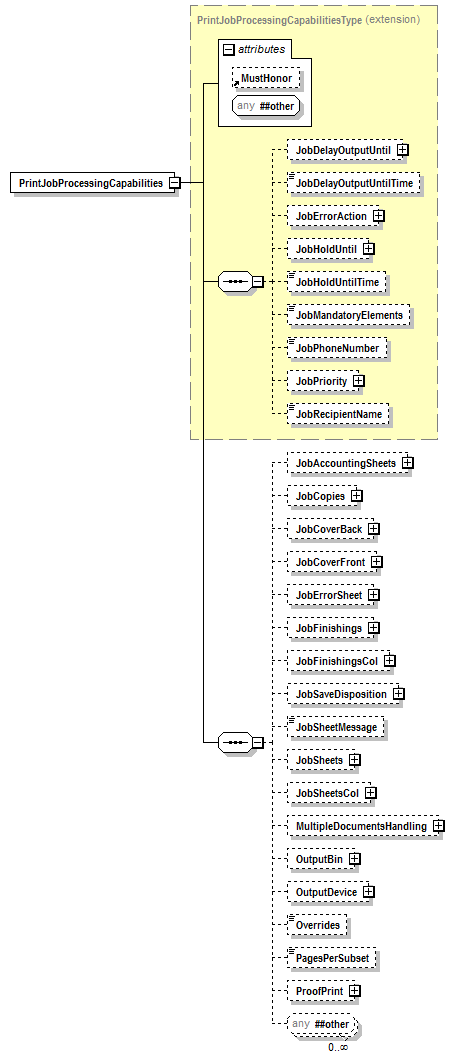

diagram PwgPrintJobTicket_v1.0_p13.png
namespace http://www.pwg.org/schemas/2012/8/sm
type extension of PrintJobProcessingCapabilitiesType
properties
content complex
children JobDelayOutputUntil JobDelayOutputUntilTime JobErrorAction JobHoldUntil JobHoldUntilTime JobMandatoryElements JobPhoneNumber JobPriority JobRecipientName JobAccountingSheets JobCopies JobCoverBack JobCoverFront JobErrorSheet JobFinishings JobFinishingsCol JobSaveDisposition JobSheetMessage JobSheets JobSheetsCol MultipleDocumentsHandling OutputBin OutputDevice Overrides PagesPerSubset ProofPrint
used by
complexType PrintJobTicketCapabilitiesType
attributes
Name  Type  Use  Default  Fixed  annotation
MustHonorxs:boolean
source <xs:element name="PrintJobProcessingCapabilities">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="PrintJobProcessingCapabilitiesType">
        <xs:sequence>
          <!-- Print job processing references here -->
          <xs:element name="JobAccountingSheets" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="JobAccountingSheetsType" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="JobAccountingOutputBin" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:sequence minOccurs="0">
                  <xs:sequence minOccurs="0">
                    <xs:sequence>
                      <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                      <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                    </xs:sequence>
                    <xs:element name="MediaSource" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>JPS3</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:sequence>
                          <xs:element name="AllowedValue" maxOccurs="unbounded">
                            <xs:simpleType>
                              <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                            </xs:simpleType>
                          </xs:element>
                        </xs:sequence>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobCopies" type="RangeOfIntType" minOccurs="0"/>
          <xs:element name="JobCoverBack" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="CoverType" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:sequence minOccurs="0">
                  <xs:sequence minOccurs="0">
                    <xs:sequence>
                      <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                      <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                    </xs:sequence>
                    <xs:element name="MediaSource" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>JPS3</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:sequence>
                          <xs:element name="AllowedValue" maxOccurs="unbounded">
                            <xs:simpleType>
                              <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                            </xs:simpleType>
                          </xs:element>
                        </xs:sequence>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobCoverFront" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="CoverType" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:sequence minOccurs="0">
                  <xs:sequence>
                    <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                    <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                  </xs:sequence>
                  <xs:element name="MediaSource" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>JPS3</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="AllowedValue" maxOccurs="unbounded">
                          <xs:simpleType>
                            <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                          </xs:simpleType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobErrorSheet" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="JobErrorSheetType" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="JobErrorSheetWhen" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:sequence minOccurs="0">
                  <xs:sequence minOccurs="0">
                    <xs:sequence>
                      <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                      <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                    </xs:sequence>
                    <xs:element name="MediaSource" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>JPS3</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:sequence>
                          <xs:element name="AllowedValue" maxOccurs="unbounded">
                            <xs:simpleType>
                              <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                            </xs:simpleType>
                          </xs:element>
                        </xs:sequence>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobFinishings" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="Finishing">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobFinishingsCol" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="FinishingTemplate" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="Stitching" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="StitchingReferenceEdge" minOccurs="0">
                        <xs:complexType>
                          <xs:sequence>
                            <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>
                          </xs:sequence>
                        </xs:complexType>
                      </xs:element>
                      <xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>
                      <xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>
                      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobSaveDisposition" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="SaveDisposition" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:element name="SaveInfo" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="SaveDocumentFormat" minOccurs="0">
                        <xs:complexType>
                          <xs:sequence>
                            <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>
                          </xs:sequence>
                        </xs:complexType>
                      </xs:element>
                      <xs:element name="SaveLocation" minOccurs="0">
                        <xs:complexType>
                          <xs:sequence>
                            <xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>
                          </xs:sequence>
                        </xs:complexType>
                      </xs:element>
                      <xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>
                      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobSheetMessage" type="xs:boolean" minOccurs="0"/>
          <xs:element name="JobSheets" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="JobSheetsCol" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="JobSheets" minOccurs="0">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:sequence minOccurs="0">
                  <xs:sequence minOccurs="0">
                    <xs:sequence>
                      <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                      <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                    </xs:sequence>
                    <xs:element name="MediaSource" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>JPS3</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:sequence>
                          <xs:element name="AllowedValue" maxOccurs="unbounded">
                            <xs:simpleType>
                              <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                            </xs:simpleType>
                          </xs:element>
                        </xs:sequence>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="MultipleDocumentsHandling" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValues" type="MultipleDocumentsHandlingType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="OutputBin" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="OutputDevice" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValues" type="OutputDeviceType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="Overrides" type="xs:boolean" minOccurs="0"/>
          <xs:element name="PagesPerSubset" type="xs:boolean" minOccurs="0"/>
          <xs:element name="ProofPrint" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="ProofPrintCopies" type="RangeOfIntType" minOccurs="0"/>
                <xs:sequence minOccurs="0">
                  <xs:sequence minOccurs="0">
                    <xs:sequence>
                      <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
                      <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
                    </xs:sequence>
                    <xs:element name="MediaSource" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>JPS3</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:sequence>
                          <xs:element name="AllowedValue" maxOccurs="unbounded">
                            <xs:simpleType>
                              <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                            </xs:simpleType>
                          </xs:element>
                        </xs:sequence>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
                </xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets
diagram PwgPrintJobTicket_v1.0_p14.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children JobAccountingSheetsType JobAccountingOutputBin Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobAccountingSheets" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="JobAccountingSheetsType" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="JobAccountingOutputBin" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence minOccurs="0">
        <xs:sequence minOccurs="0">
          <xs:sequence>
            <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
            <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
          </xs:sequence>
          <xs:element name="MediaSource" minOccurs="0">
            <xs:annotation>
              <xs:documentation>JPS3</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValue" maxOccurs="unbounded">
                  <xs:simpleType>
                    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets/JobAccountingSheetsType
diagram PwgPrintJobTicket_v1.0_p15.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobAccountingSheetsType
source <xs:element name="JobAccountingSheetsType" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets/JobAccountingSheetsType/AllowedValues
diagram PwgPrintJobTicket_v1.0_p16.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobAccountingSheetsTypeType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobAccountingSheetsTypeType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobAccountingSheets/JobAccountingOutputBin
diagram PwgPrintJobTicket_v1.0_p17.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobAccountingSheetsType
source <xs:element name="JobAccountingOutputBin" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets/JobAccountingOutputBin/AllowedValues
diagram PwgPrintJobTicket_v1.0_p18.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobAccountingOutputBinType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobAccountingOutputBinType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobAccountingSheets/Media
diagram PwgPrintJobTicket_v1.0_p19.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobAccountingSheets/MediaType
diagram PwgPrintJobTicket_v1.0_p20.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobAccountingSheets/MediaSource
diagram PwgPrintJobTicket_v1.0_p21.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p22.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/JobAccountingSheets/MediaCol
diagram PwgPrintJobTicket_v1.0_p23.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCopies
diagram PwgPrintJobTicket_v1.0_p24.png
namespace http://www.pwg.org/schemas/2012/8/sm
type RangeOfIntType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:element name="JobCopies" type="RangeOfIntType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverBack
diagram PwgPrintJobTicket_v1.0_p25.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobCoverBack" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="CoverType" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence minOccurs="0">
        <xs:sequence minOccurs="0">
          <xs:sequence>
            <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
            <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
          </xs:sequence>
          <xs:element name="MediaSource" minOccurs="0">
            <xs:annotation>
              <xs:documentation>JPS3</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValue" maxOccurs="unbounded">
                  <xs:simpleType>
                    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverBack/CoverType
diagram PwgPrintJobTicket_v1.0_p26.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverBack/CoverType/AllowedValues
diagram PwgPrintJobTicket_v1.0_p27.png
namespace http://www.pwg.org/schemas/2012/8/sm
type CoverTypeType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverBack/Media
diagram PwgPrintJobTicket_v1.0_p28.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverBack/MediaType
diagram PwgPrintJobTicket_v1.0_p29.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverBack/MediaSource
diagram PwgPrintJobTicket_v1.0_p30.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverBack/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p31.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverBack/MediaCol
diagram PwgPrintJobTicket_v1.0_p32.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverFront
diagram PwgPrintJobTicket_v1.0_p33.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children CoverType Media MediaType MediaSource
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobCoverFront" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="CoverType" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence minOccurs="0">
        <xs:sequence>
          <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
          <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
        </xs:sequence>
        <xs:element name="MediaSource" minOccurs="0">
          <xs:annotation>
            <xs:documentation>JPS3</xs:documentation>
          </xs:annotation>
          <xs:complexType>
            <xs:sequence>
              <xs:element name="AllowedValue" maxOccurs="unbounded">
                <xs:simpleType>
                  <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                </xs:simpleType>
              </xs:element>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverFront/CoverType
diagram PwgPrintJobTicket_v1.0_p34.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType CoverColType
source <xs:element name="CoverType" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverFront/CoverType/AllowedValues
diagram PwgPrintJobTicket_v1.0_p35.png
namespace http://www.pwg.org/schemas/2012/8/sm
type CoverTypeType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="AllowedValues" type="CoverTypeType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverFront/Media
diagram PwgPrintJobTicket_v1.0_p36.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverFront/MediaType
diagram PwgPrintJobTicket_v1.0_p37.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobCoverFront/MediaSource
diagram PwgPrintJobTicket_v1.0_p38.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobCoverFront/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p39.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet
diagram PwgPrintJobTicket_v1.0_p40.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children JobErrorSheetType JobErrorSheetWhen Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobErrorSheet" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="JobErrorSheetType" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="JobErrorSheetWhen" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence minOccurs="0">
        <xs:sequence minOccurs="0">
          <xs:sequence>
            <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
            <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
          </xs:sequence>
          <xs:element name="MediaSource" minOccurs="0">
            <xs:annotation>
              <xs:documentation>JPS3</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValue" maxOccurs="unbounded">
                  <xs:simpleType>
                    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet/JobErrorSheetType
diagram PwgPrintJobTicket_v1.0_p41.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobErrorSheetType
source <xs:element name="JobErrorSheetType" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet/JobErrorSheetType/AllowedValues
diagram PwgPrintJobTicket_v1.0_p42.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobErrorSheetTypeType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobErrorSheetTypeType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobErrorSheet/JobErrorSheetWhen
diagram PwgPrintJobTicket_v1.0_p43.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobErrorSheetType
source <xs:element name="JobErrorSheetWhen" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet/JobErrorSheetWhen/AllowedValues
diagram PwgPrintJobTicket_v1.0_p44.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobErrorSheetWhenType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobErrorSheetWhenType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobErrorSheet/Media
diagram PwgPrintJobTicket_v1.0_p45.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobErrorSheet/MediaType
diagram PwgPrintJobTicket_v1.0_p46.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobErrorSheet/MediaSource
diagram PwgPrintJobTicket_v1.0_p47.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p48.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/JobErrorSheet/MediaCol
diagram PwgPrintJobTicket_v1.0_p49.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobFinishings
diagram PwgPrintJobTicket_v1.0_p50.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Finishing
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobFinishings" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Finishing">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishings/Finishing
diagram PwgPrintJobTicket_v1.0_p51.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
content complex
children AllowedValues
used by
complexType FinishingsType
source <xs:element name="Finishing">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishings/Finishing/AllowedValues
diagram PwgPrintJobTicket_v1.0_p52.png
namespace http://www.pwg.org/schemas/2012/8/sm
type FinishingType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="FinishingType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobFinishingsCol
diagram PwgPrintJobTicket_v1.0_p53.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children FinishingTemplate Stitching
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobFinishingsCol" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="FinishingTemplate" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Stitching" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="StitchingReferenceEdge" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>
            <xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishingsCol/FinishingTemplate
diagram PwgPrintJobTicket_v1.0_p54.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType FinishingsColType
source <xs:element name="FinishingTemplate" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishingsCol/FinishingTemplate/AllowedValues
diagram PwgPrintJobTicket_v1.0_p55.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:string
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="xs:string" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobFinishingsCol/Stitching
diagram PwgPrintJobTicket_v1.0_p56.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children StitchingReferenceEdge StitchingOffset StitchingLocations
used by
complexType FinishingsColType
source <xs:element name="Stitching" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="StitchingReferenceEdge" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>
      <xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishingsCol/Stitching/StitchingReferenceEdge
diagram PwgPrintJobTicket_v1.0_p57.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType StitchingType
source <xs:element name="StitchingReferenceEdge" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobFinishingsCol/Stitching/StitchingReferenceEdge/AllowedValues
diagram PwgPrintJobTicket_v1.0_p58.png
namespace http://www.pwg.org/schemas/2012/8/sm
type StitchingReferenceEdgeType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="StitchingReferenceEdgeType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobFinishingsCol/Stitching/StitchingOffset
diagram PwgPrintJobTicket_v1.0_p59.png
namespace http://www.pwg.org/schemas/2012/8/sm
type SetOfRangeOfIntType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Range
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:element name="StitchingOffset" type="SetOfRangeOfIntType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobFinishingsCol/Stitching/StitchingLocations
diagram PwgPrintJobTicket_v1.0_p60.png
namespace http://www.pwg.org/schemas/2012/8/sm
type SetOfRangeOfIntType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Range
used by
complexType StitchingType
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:element name="StitchingLocations" type="SetOfRangeOfIntType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobSaveDisposition
diagram PwgPrintJobTicket_v1.0_p61.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children SaveDisposition SaveInfo
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSaveDisposition" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="SaveDisposition" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="SaveInfo" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="SaveDocumentFormat" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="SaveLocation" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveDisposition
diagram PwgPrintJobTicket_v1.0_p62.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType JobSaveDispositionType
source <xs:element name="SaveDisposition" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveDisposition/AllowedValues
diagram PwgPrintJobTicket_v1.0_p63.png
namespace http://www.pwg.org/schemas/2012/8/sm
type SaveDispositionType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveInfo
diagram PwgPrintJobTicket_v1.0_p64.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children SaveDocumentFormat SaveLocation SaveName
used by
complexType JobSaveDispositionType
source <xs:element name="SaveInfo" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="SaveDocumentFormat" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="SaveLocation" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveInfo/SaveDocumentFormat
diagram PwgPrintJobTicket_v1.0_p65.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
complexType SaveInfoType
source <xs:element name="SaveDocumentFormat" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveInfo/SaveDocumentFormat/AllowedValues
diagram PwgPrintJobTicket_v1.0_p66.png
namespace http://www.pwg.org/schemas/2012/8/sm
type SaveDocumentFormatType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveInfo/SaveLocation
diagram PwgPrintJobTicket_v1.0_p67.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children UriSchemSupported
used by
complexType SaveInfoType
source <xs:element name="SaveLocation" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="UriSchemSupported" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSaveDisposition/SaveInfo/SaveName
diagram PwgPrintJobTicket_v1.0_p68.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
complexType SaveInfoType
source <xs:element name="SaveName" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobSheetMessage
diagram PwgPrintJobTicket_v1.0_p69.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheetMessage" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobSheets
diagram PwgPrintJobTicket_v1.0_p70.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
element ServiceSpecificJobProcessing
complexTypes JobSheetsColType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheets" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSheets/AllowedValues
diagram PwgPrintJobTicket_v1.0_p71.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobSheetsType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobSheetsCol
diagram PwgPrintJobTicket_v1.0_p72.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children JobSheets Media MediaType MediaSource MediaCol
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheetsCol" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="JobSheets" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:sequence minOccurs="0">
        <xs:sequence minOccurs="0">
          <xs:sequence>
            <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
            <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
          </xs:sequence>
          <xs:element name="MediaSource" minOccurs="0">
            <xs:annotation>
              <xs:documentation>JPS3</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValue" maxOccurs="unbounded">
                  <xs:simpleType>
                    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSheetsCol/JobSheets
diagram PwgPrintJobTicket_v1.0_p73.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
element ServiceSpecificJobProcessing
complexTypes JobSheetsColType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="JobSheets" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSheetsCol/JobSheets/AllowedValues
diagram PwgPrintJobTicket_v1.0_p74.png
namespace http://www.pwg.org/schemas/2012/8/sm
type JobSheetsType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="JobSheetsType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/JobSheetsCol/Media
diagram PwgPrintJobTicket_v1.0_p75.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobSheetsCol/MediaType
diagram PwgPrintJobTicket_v1.0_p76.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/JobSheetsCol/MediaSource
diagram PwgPrintJobTicket_v1.0_p77.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/JobSheetsCol/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p78.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/JobSheetsCol/MediaCol
diagram PwgPrintJobTicket_v1.0_p79.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/MultipleDocumentsHandling
diagram PwgPrintJobTicket_v1.0_p80.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
element ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="MultipleDocumentsHandling" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="MultipleDocumentsHandlingType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/MultipleDocumentsHandling/AllowedValues
diagram PwgPrintJobTicket_v1.0_p81.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MultipleDocumentsHandlingType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="MultipleDocumentsHandlingType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/OutputBin
diagram PwgPrintJobTicket_v1.0_p82.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
elements ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="OutputBin" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/OutputBin/AllowedValues
diagram PwgPrintJobTicket_v1.0_p83.png
namespace http://www.pwg.org/schemas/2012/8/sm
type OutputBinType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValues" type="OutputBinType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/OutputDevice
diagram PwgPrintJobTicket_v1.0_p84.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValues
used by
elements ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes PrintDocumentProcessingDefaultType PrintDocumentProcessingType PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="OutputDevice" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValues" type="OutputDeviceType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/OutputDevice/AllowedValues
diagram PwgPrintJobTicket_v1.0_p85.png
namespace http://www.pwg.org/schemas/2012/8/sm
type OutputDeviceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
facets
Kind Value annotation
maxLength 127
source <xs:element name="AllowedValues" type="OutputDeviceType" maxOccurs="unbounded"/>

element PrintJobProcessingCapabilities/Overrides
diagram PwgPrintJobTicket_v1.0_p86.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
element ServiceSpecificJobProcessing
complexType PrintJobProcessingType
source <xs:element name="Overrides" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/PagesPerSubset
diagram PwgPrintJobTicket_v1.0_p87.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements ServiceSpecificDocumentProcessing ServiceSpecificJobProcessing
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="PagesPerSubset" type="xs:boolean" minOccurs="0"/>

element PrintJobProcessingCapabilities/ProofPrint
diagram PwgPrintJobTicket_v1.0_p88.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children ProofPrintCopies Media MediaType MediaSource MediaCol
used by
complexTypes PrintJobProcessingDefaultType PrintJobProcessingType
source <xs:element name="ProofPrint" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="ProofPrintCopies" type="RangeOfIntType" minOccurs="0"/>
      <xs:sequence minOccurs="0">
        <xs:sequence minOccurs="0">
          <xs:sequence>
            <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>
            <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>
          </xs:sequence>
          <xs:element name="MediaSource" minOccurs="0">
            <xs:annotation>
              <xs:documentation>JPS3</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="AllowedValue" maxOccurs="unbounded">
                  <xs:simpleType>
                    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/ProofPrint/ProofPrintCopies
diagram PwgPrintJobTicket_v1.0_p89.png
namespace http://www.pwg.org/schemas/2012/8/sm
type RangeOfIntType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType ProofPrintType
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:element name="ProofPrintCopies" type="RangeOfIntType" minOccurs="0"/>

element PrintJobProcessingCapabilities/ProofPrint/Media
diagram PwgPrintJobTicket_v1.0_p90.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaActual MediaReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="Media" type="MediaSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/ProofPrint/MediaType
diagram PwgPrintJobTicket_v1.0_p91.png
namespace http://www.pwg.org/schemas/2012/8/sm
type MediaTypeSupportedType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" type="MediaTypeSupportedType" minOccurs="0"/>

element PrintJobProcessingCapabilities/ProofPrint/MediaSource
diagram PwgPrintJobTicket_v1.0_p92.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements MediaSourceSupported ServiceSpecificDocumentProcessing
complexTypes MediaColType PrintDocumentProcessingDefaultType
annotation
documentation
JPS3
source <xs:element name="MediaSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>JPS3</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element PrintJobProcessingCapabilities/ProofPrint/MediaSource/AllowedValue
diagram PwgPrintJobTicket_v1.0_p93.png
namespace http://www.pwg.org/schemas/2012/8/sm
type union of (MediaSourceWKV, KeywordNsExtensionPattern)
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSourceWKV KeywordNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element PrintJobProcessingCapabilities/ProofPrint/MediaCol
diagram PwgPrintJobTicket_v1.0_p94.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
used by
elements MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaCol" type="xs:boolean" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
