Schema documentation for Print3DService.xsd

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Main schema Print3DService.xsd

Namespace

http://www.pwg.org/schemas/smpjt3d10

Annotations

PWG Semantic Model v1.0
Copyright &copy; 2002-2017 The IEEE-ISTO Printer Working Group.

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Print3D Service Definition.

Properties

attribute form default	qualified
element form default	qualified
version	1.0

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

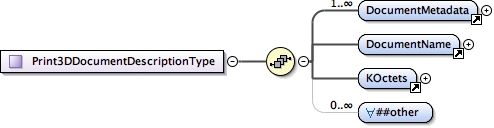

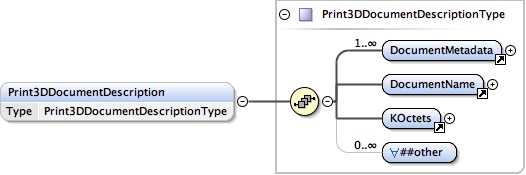

Element Print3DDocumentTicketType / Print3DDocumentDescription

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentDescriptionType

Properties

content	complex
minOccurs	0

Model

DocumentMetadata+ , DocumentName , KOctets , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DocumentMetadata, DocumentName, KOctets

Instance

<Print3DDocumentDescription xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DocumentMetadata>{1,unbounded}</DocumentMetadata>
  <DocumentName>{1,1}</DocumentName>
  <KOctets>{1,1}</KOctets>
</Print3DDocumentDescription>

Source

<xs:element name="Print3DDocumentDescription" type="Print3DDocumentDescriptionType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

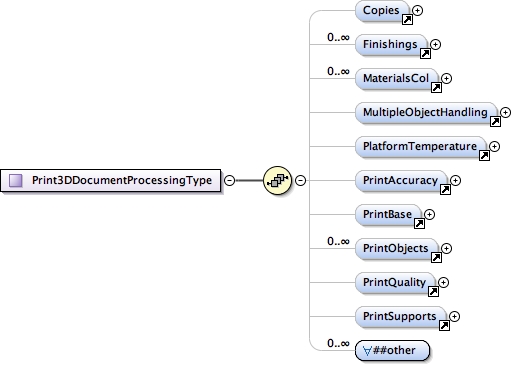

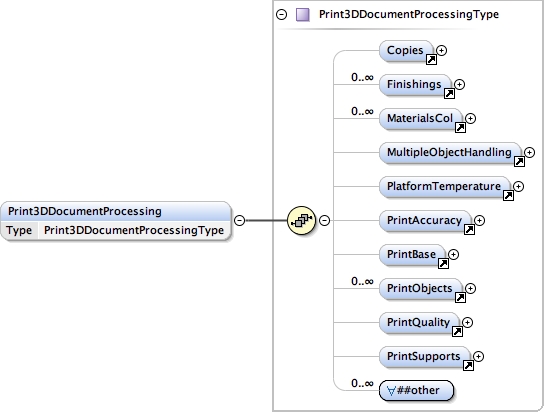

Element Print3DDocumentTicketType / Print3DDocumentProcessing

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentProcessingType

Properties

content	complex
minOccurs	0

Model

Copies{0,1} , Finishings* , MaterialsCol* , MultipleObjectHandling{0,1} , PlatformTemperature{0,1} , PrintAccuracy{0,1} , PrintBase{0,1} , PrintObjects* , PrintQuality{0,1} , PrintSupports{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Copies, Finishings, MaterialsCol, MultipleObjectHandling, PlatformTemperature, PrintAccuracy, PrintBase, PrintObjects, PrintQuality, PrintSupports

Instance

<Print3DDocumentProcessing xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Copies>{0,1}</Copies>
  <Finishings>{0,unbounded}</Finishings>
  <MaterialsCol>{0,unbounded}</MaterialsCol>
  <MultipleObjectHandling>{0,1}</MultipleObjectHandling>
  <PlatformTemperature>{0,1}</PlatformTemperature>
  <PrintAccuracy>{0,1}</PrintAccuracy>
  <PrintBase>{0,1}</PrintBase>
  <PrintObjects>{0,unbounded}</PrintObjects>
  <PrintQuality>{0,1}</PrintQuality>
  <PrintSupports>{0,1}</PrintSupports>
</Print3DDocumentProcessing>

Source

<xs:element name="Print3DDocumentProcessing" type="Print3DDocumentProcessingType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

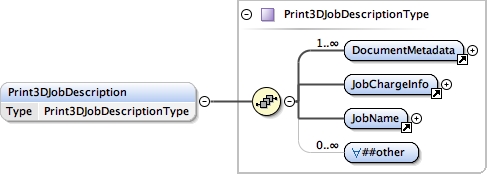

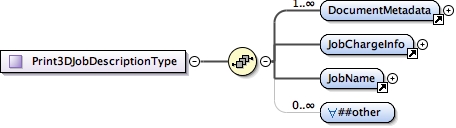

Element Print3DJobTicketType / Print3DJobDescription

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobDescriptionType

Properties

content	complex
minOccurs	0

Model

DocumentMetadata+ , JobChargeInfo , JobName , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DocumentMetadata, JobChargeInfo, JobName

Instance

<Print3DJobDescription xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DocumentMetadata>{1,unbounded}</DocumentMetadata>
  <JobChargeInfo>{1,1}</JobChargeInfo>
  <JobName>{1,1}</JobName>
</Print3DJobDescription>

Source

<xs:element name="Print3DJobDescription" type="Print3DJobDescriptionType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

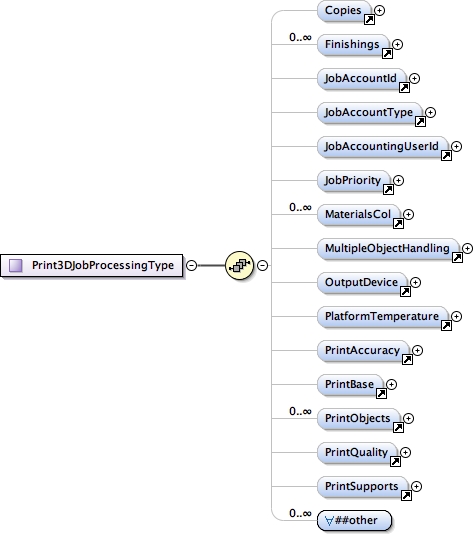

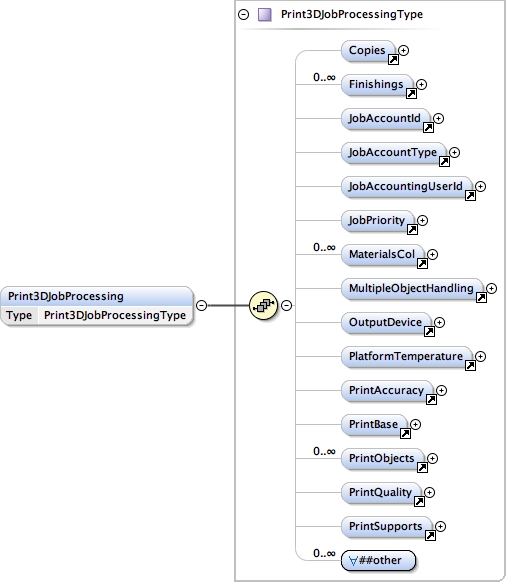

Element Print3DJobTicketType / Print3DJobProcessing

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobProcessingType

Properties

content	complex
minOccurs	0

Model

Copies{0,1} , Finishings* , JobAccountId{0,1} , JobAccountType{0,1} , JobAccountingUserId{0,1} , JobPriority{0,1} , MaterialsCol* , MultipleObjectHandling{0,1} , OutputDevice{0,1} , PlatformTemperature{0,1} , PrintAccuracy{0,1} , PrintBase{0,1} , PrintObjects* , PrintQuality{0,1} , PrintSupports{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Copies, Finishings, JobAccountId, JobAccountType, JobAccountingUserId, JobPriority, MaterialsCol, MultipleObjectHandling, OutputDevice, PlatformTemperature, PrintAccuracy, PrintBase, PrintObjects, PrintQuality, PrintSupports

Instance

<Print3DJobProcessing xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Copies>{0,1}</Copies>
  <Finishings>{0,unbounded}</Finishings>
  <JobAccountId>{0,1}</JobAccountId>
  <JobAccountType>{0,1}</JobAccountType>
  <JobAccountingUserId>{0,1}</JobAccountingUserId>
  <JobPriority>{0,1}</JobPriority>
  <MaterialsCol>{0,unbounded}</MaterialsCol>
  <MultipleObjectHandling>{0,1}</MultipleObjectHandling>
  <OutputDevice>{0,1}</OutputDevice>
  <PlatformTemperature>{0,1}</PlatformTemperature>
  <PrintAccuracy>{0,1}</PrintAccuracy>
  <PrintBase>{0,1}</PrintBase>
  <PrintObjects>{0,unbounded}</PrintObjects>
  <PrintQuality>{0,1}</PrintQuality>
  <PrintSupports>{0,1}</PrintSupports>
</Print3DJobProcessing>

Source

<xs:element name="Print3DJobProcessing" type="Print3DJobProcessingType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

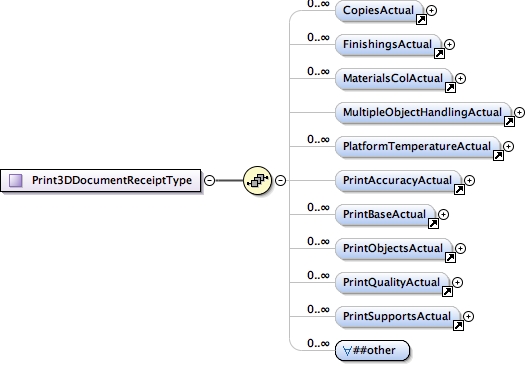

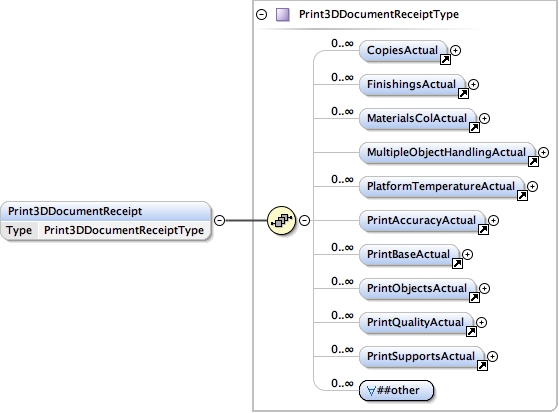

Element Print3DDocumentType / Print3DDocumentReceipt

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentReceiptType

Properties

content	complex
minOccurs	0

Model

CopiesActual* , FinishingsActual* , MaterialsColActual* , MultipleObjectHandlingActual{0,1} , PlatformTemperatureActual* , PrintAccuracyActual{0,1} , PrintBaseActual* , PrintObjectsActual* , PrintQualityActual* , PrintSupportsActual* , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

CopiesActual, FinishingsActual, MaterialsColActual, MultipleObjectHandlingActual, PlatformTemperatureActual, PrintAccuracyActual, PrintBaseActual, PrintObjectsActual, PrintQualityActual, PrintSupportsActual

Instance

<Print3DDocumentReceipt xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <CopiesActual>{0,unbounded}</CopiesActual>
  <FinishingsActual>{0,unbounded}</FinishingsActual>
  <MaterialsColActual>{0,unbounded}</MaterialsColActual>
  <MultipleObjectHandlingActual>{0,1}</MultipleObjectHandlingActual>
  <PlatformTemperatureActual>{0,unbounded}</PlatformTemperatureActual>
  <PrintAccuracyActual>{0,1}</PrintAccuracyActual>
  <PrintBaseActual>{0,unbounded}</PrintBaseActual>
  <PrintObjectsActual>{0,unbounded}</PrintObjectsActual>
  <PrintQualityActual>{0,unbounded}</PrintQualityActual>
  <PrintSupportsActual>{0,unbounded}</PrintSupportsActual>
</Print3DDocumentReceipt>

Source

<xs:element name="Print3DDocumentReceipt" type="Print3DDocumentReceiptType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

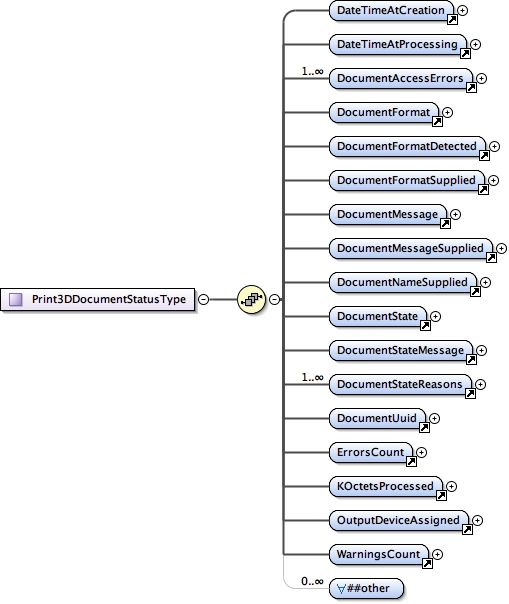

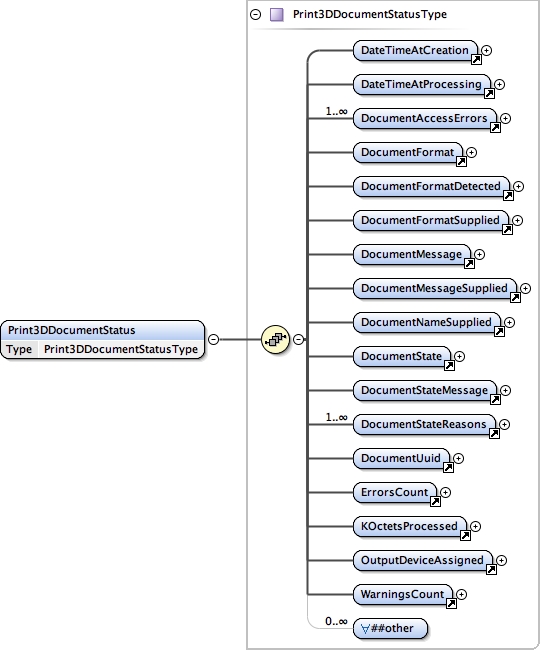

Element Print3DDocumentType / Print3DDocumentStatus

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentStatusType

Properties

content

complex

Model

DateTimeAtCreation , DateTimeAtProcessing , DocumentAccessErrors+ , DocumentFormat , DocumentFormatDetected , DocumentFormatSupplied , DocumentMessage , DocumentMessageSupplied , DocumentNameSupplied , DocumentState , DocumentStateMessage , DocumentStateReasons+ , DocumentUuid , ErrorsCount , KOctetsProcessed , OutputDeviceAssigned , WarningsCount , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DateTimeAtCreation, DateTimeAtProcessing, DocumentAccessErrors, DocumentFormat, DocumentFormatDetected, DocumentFormatSupplied, DocumentMessage, DocumentMessageSupplied, DocumentNameSupplied, DocumentState, DocumentStateMessage, DocumentStateReasons, DocumentUuid, ErrorsCount, KOctetsProcessed, OutputDeviceAssigned, WarningsCount

Instance

<Print3DDocumentStatus xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DateTimeAtCreation>{1,1}</DateTimeAtCreation>
  <DateTimeAtProcessing>{1,1}</DateTimeAtProcessing>
  <DocumentAccessErrors>{1,unbounded}</DocumentAccessErrors>
  <DocumentFormat>{1,1}</DocumentFormat>
  <DocumentFormatDetected>{1,1}</DocumentFormatDetected>
  <DocumentFormatSupplied>{1,1}</DocumentFormatSupplied>
  <DocumentMessage>{1,1}</DocumentMessage>
  <DocumentMessageSupplied>{1,1}</DocumentMessageSupplied>
  <DocumentNameSupplied>{1,1}</DocumentNameSupplied>
  <DocumentState>{1,1}</DocumentState>
  <DocumentStateMessage>{1,1}</DocumentStateMessage>
  <DocumentStateReasons>{1,unbounded}</DocumentStateReasons>
  <DocumentUuid>{1,1}</DocumentUuid>
  <ErrorsCount>{1,1}</ErrorsCount>
  <KOctetsProcessed>{1,1}</KOctetsProcessed>
  <OutputDeviceAssigned>{1,1}</OutputDeviceAssigned>
  <WarningsCount>{1,1}</WarningsCount>
</Print3DDocumentStatus>

Source

<xs:element name="Print3DDocumentStatus" type="Print3DDocumentStatusType"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

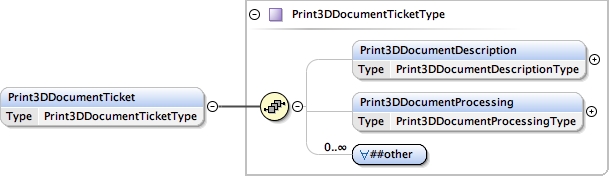

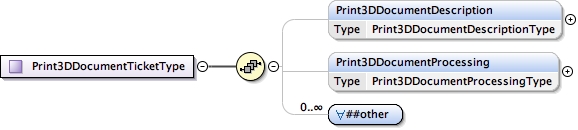

Element Print3DDocumentType / Print3DDocumentTicket

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentTicketType

Properties

content	complex
minOccurs	0

Model

Print3DDocumentDescription{0,1} , Print3DDocumentProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocumentDescription, Print3DDocumentProcessing

Instance

<Print3DDocumentTicket xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DDocumentDescription>{0,1}</Print3DDocumentDescription>
  <Print3DDocumentProcessing>{0,1}</Print3DDocumentProcessing>
</Print3DDocumentTicket>

Source

<xs:element name="Print3DDocumentTicket" type="Print3DDocumentTicketType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

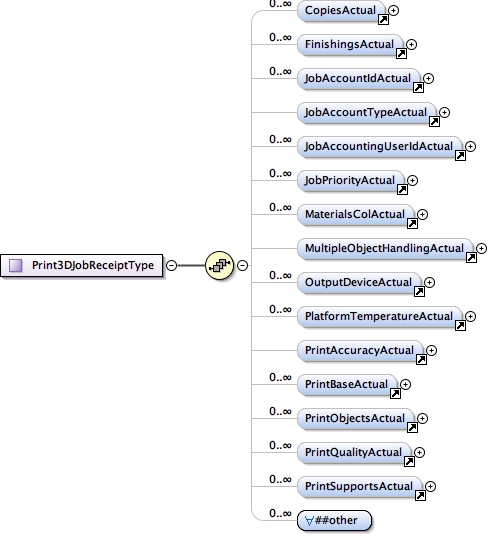

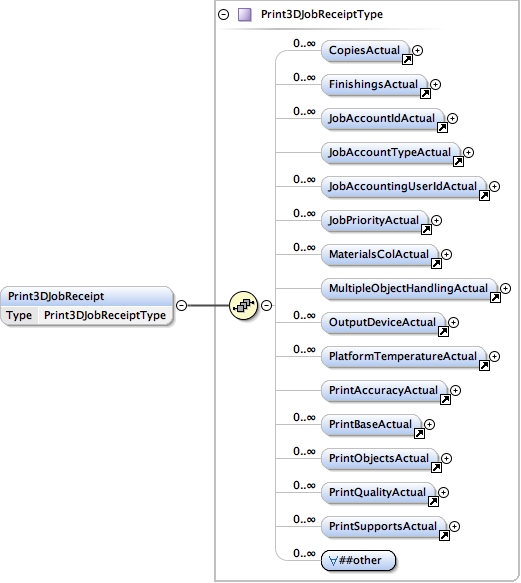

Element Print3DJobType / Print3DJobReceipt

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobReceiptType

Properties

content	complex
minOccurs	0

Model

CopiesActual* , FinishingsActual* , JobAccountIdActual* , JobAccountTypeActual{0,1} , JobAccountingUserIdActual* , JobPriorityActual* , MaterialsColActual* , MultipleObjectHandlingActual{0,1} , OutputDeviceActual* , PlatformTemperatureActual* , PrintAccuracyActual{0,1} , PrintBaseActual* , PrintObjectsActual* , PrintQualityActual* , PrintSupportsActual* , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

CopiesActual, FinishingsActual, JobAccountIdActual, JobAccountTypeActual, JobAccountingUserIdActual, JobPriorityActual, MaterialsColActual, MultipleObjectHandlingActual, OutputDeviceActual, PlatformTemperatureActual, PrintAccuracyActual, PrintBaseActual, PrintObjectsActual, PrintQualityActual, PrintSupportsActual

Instance

<Print3DJobReceipt xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <CopiesActual>{0,unbounded}</CopiesActual>
  <FinishingsActual>{0,unbounded}</FinishingsActual>
  <JobAccountIdActual>{0,unbounded}</JobAccountIdActual>
  <JobAccountTypeActual>{0,1}</JobAccountTypeActual>
  <JobAccountingUserIdActual>{0,unbounded}</JobAccountingUserIdActual>
  <JobPriorityActual>{0,unbounded}</JobPriorityActual>
  <MaterialsColActual>{0,unbounded}</MaterialsColActual>
  <MultipleObjectHandlingActual>{0,1}</MultipleObjectHandlingActual>
  <OutputDeviceActual>{0,unbounded}</OutputDeviceActual>
  <PlatformTemperatureActual>{0,unbounded}</PlatformTemperatureActual>
  <PrintAccuracyActual>{0,1}</PrintAccuracyActual>
  <PrintBaseActual>{0,unbounded}</PrintBaseActual>
  <PrintObjectsActual>{0,unbounded}</PrintObjectsActual>
  <PrintQualityActual>{0,unbounded}</PrintQualityActual>
  <PrintSupportsActual>{0,unbounded}</PrintSupportsActual>
</Print3DJobReceipt>

Source

<xs:element name="Print3DJobReceipt" type="Print3DJobReceiptType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

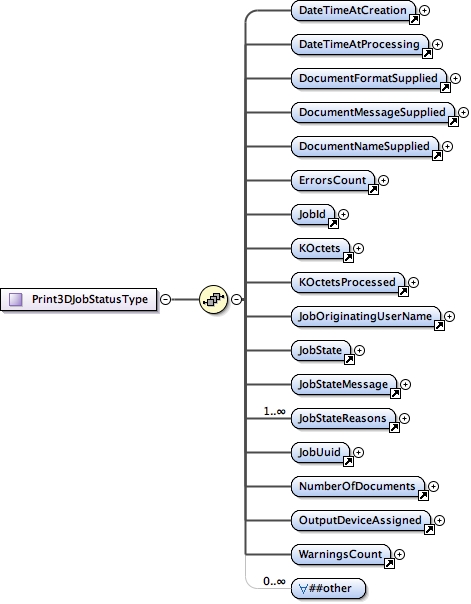

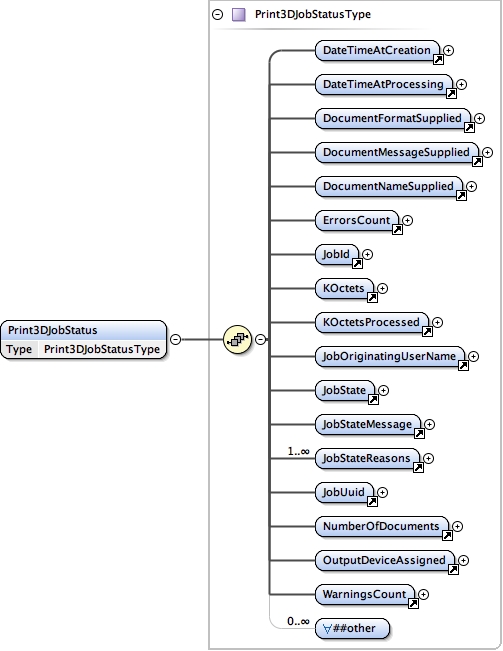

Element Print3DJobType / Print3DJobStatus

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobStatusType

Properties

content

complex

Model

DateTimeAtCreation , DateTimeAtProcessing , DocumentFormatSupplied , DocumentMessageSupplied , DocumentNameSupplied , ErrorsCount , JobId , KOctets , KOctetsProcessed , JobOriginatingUserName , JobState , JobStateMessage , JobStateReasons+ , JobUuid , NumberOfDocuments , OutputDeviceAssigned , WarningsCount , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DateTimeAtCreation, DateTimeAtProcessing, DocumentFormatSupplied, DocumentMessageSupplied, DocumentNameSupplied, ErrorsCount, JobId, JobOriginatingUserName, JobState, JobStateMessage, JobStateReasons, JobUuid, KOctets, KOctetsProcessed, NumberOfDocuments, OutputDeviceAssigned, WarningsCount

Instance

<Print3DJobStatus xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DateTimeAtCreation>{1,1}</DateTimeAtCreation>
  <DateTimeAtProcessing>{1,1}</DateTimeAtProcessing>
  <DocumentFormatSupplied>{1,1}</DocumentFormatSupplied>
  <DocumentMessageSupplied>{1,1}</DocumentMessageSupplied>
  <DocumentNameSupplied>{1,1}</DocumentNameSupplied>
  <ErrorsCount>{1,1}</ErrorsCount>
  <JobId>{1,1}</JobId>
  <KOctets>{1,1}</KOctets>
  <KOctetsProcessed>{1,1}</KOctetsProcessed>
  <JobOriginatingUserName>{1,1}</JobOriginatingUserName>
  <JobState>{1,1}</JobState>
  <JobStateMessage>{1,1}</JobStateMessage>
  <JobStateReasons>{1,unbounded}</JobStateReasons>
  <JobUuid>{1,1}</JobUuid>
  <NumberOfDocuments>{1,1}</NumberOfDocuments>
  <OutputDeviceAssigned>{1,1}</OutputDeviceAssigned>
  <WarningsCount>{1,1}</WarningsCount>
</Print3DJobStatus>

Source

<xs:element name="Print3DJobStatus" type="Print3DJobStatusType"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

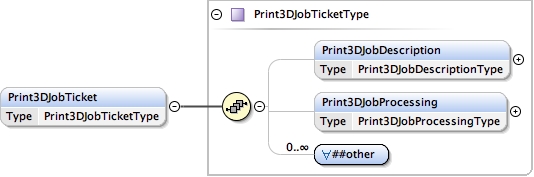

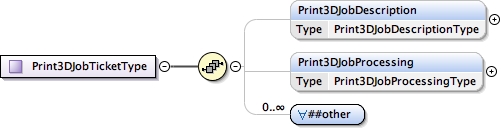

Element Print3DJobType / Print3DJobTicket

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobTicketType

Properties

content	complex
minOccurs	0

Model

Print3DJobDescription{0,1} , Print3DJobProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DJobDescription, Print3DJobProcessing

Instance

<Print3DJobTicket xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DJobDescription>{0,1}</Print3DJobDescription>
  <Print3DJobProcessing>{0,1}</Print3DJobProcessing>
</Print3DJobTicket>

Source

<xs:element name="Print3DJobTicket" type="Print3DJobTicketType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

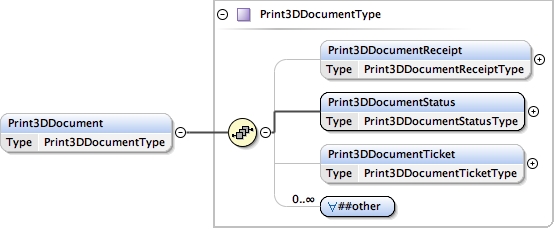

Element Print3DJobType / Print3DDocument

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentType

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Model

Print3DDocumentReceipt{0,1} , Print3DDocumentStatus , Print3DDocumentTicket{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocumentReceipt, Print3DDocumentStatus, Print3DDocumentTicket

Instance

<Print3DDocument xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DDocumentReceipt>{0,1}</Print3DDocumentReceipt>
  <Print3DDocumentStatus>{1,1}</Print3DDocumentStatus>
  <Print3DDocumentTicket>{0,1}</Print3DDocumentTicket>
</Print3DDocument>

Source

<xs:element name="Print3DDocument" type="Print3DDocumentType" minOccurs="0" maxOccurs="unbounded"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

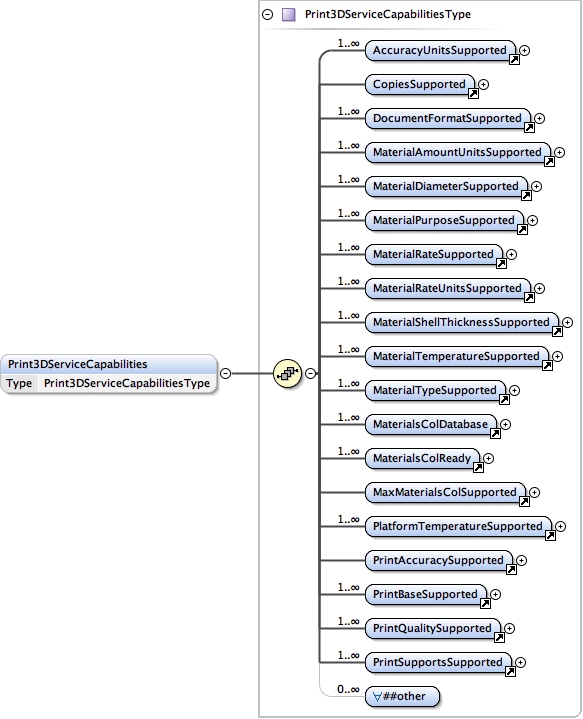

Element Print3DServiceType / Print3DServiceCapabilities

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DServiceCapabilitiesType

Properties

content	complex
minOccurs	0

Model

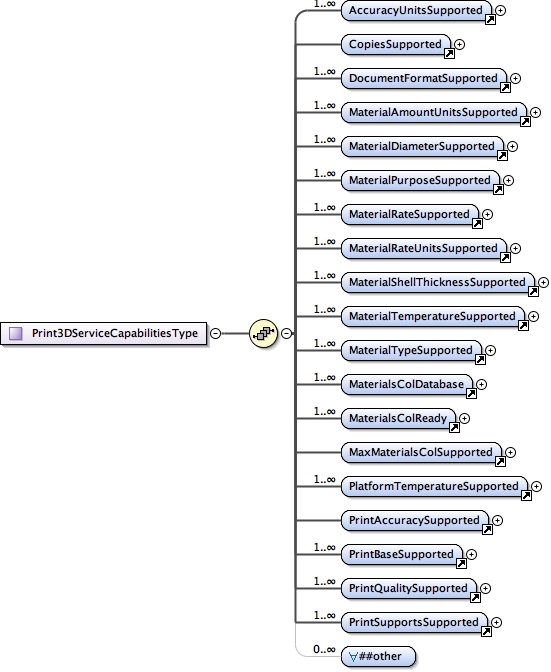

AccuracyUnitsSupported+ , CopiesSupported , DocumentFormatSupported+ , MaterialAmountUnitsSupported+ , MaterialDiameterSupported+ , MaterialPurposeSupported+ , MaterialRateSupported+ , MaterialRateUnitsSupported+ , MaterialShellThicknessSupported+ , MaterialTemperatureSupported+ , MaterialTypeSupported+ , MaterialsColDatabase+ , MaterialsColReady+ , MaxMaterialsColSupported , PlatformTemperatureSupported+ , PrintAccuracySupported , PrintBaseSupported+ , PrintQualitySupported+ , PrintSupportsSupported+ , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

AccuracyUnitsSupported, CopiesSupported, DocumentFormatSupported, MaterialAmountUnitsSupported, MaterialDiameterSupported, MaterialPurposeSupported, MaterialRateSupported, MaterialRateUnitsSupported, MaterialShellThicknessSupported, MaterialTemperatureSupported, MaterialTypeSupported, MaterialsColDatabase, MaterialsColReady, MaxMaterialsColSupported, PlatformTemperatureSupported, PrintAccuracySupported, PrintBaseSupported, PrintQualitySupported, PrintSupportsSupported

Instance

<Print3DServiceCapabilities xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <AccuracyUnitsSupported>{1,unbounded}</AccuracyUnitsSupported>
  <CopiesSupported>{1,1}</CopiesSupported>
  <DocumentFormatSupported>{1,unbounded}</DocumentFormatSupported>
  <MaterialAmountUnitsSupported>{1,unbounded}</MaterialAmountUnitsSupported>
  <MaterialDiameterSupported>{1,unbounded}</MaterialDiameterSupported>
  <MaterialPurposeSupported>{1,unbounded}</MaterialPurposeSupported>
  <MaterialRateSupported>{1,unbounded}</MaterialRateSupported>
  <MaterialRateUnitsSupported>{1,unbounded}</MaterialRateUnitsSupported>
  <MaterialShellThicknessSupported>{1,unbounded}</MaterialShellThicknessSupported>
  <MaterialTemperatureSupported>{1,unbounded}</MaterialTemperatureSupported>
  <MaterialTypeSupported>{1,unbounded}</MaterialTypeSupported>
  <MaterialsColDatabase>{1,unbounded}</MaterialsColDatabase>
  <MaterialsColReady>{1,unbounded}</MaterialsColReady>
  <MaxMaterialsColSupported>{1,1}</MaxMaterialsColSupported>
  <PlatformTemperatureSupported>{1,unbounded}</PlatformTemperatureSupported>
  <PrintAccuracySupported>{1,1}</PrintAccuracySupported>
  <PrintBaseSupported>{1,unbounded}</PrintBaseSupported>
  <PrintQualitySupported>{1,unbounded}</PrintQualitySupported>
  <PrintSupportsSupported>{1,unbounded}</PrintSupportsSupported>
</Print3DServiceCapabilities>

Source

<xs:element name="Print3DServiceCapabilities" type="Print3DServiceCapabilitiesType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Element Print3DServiceType / Print3DServiceConfiguration

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DServiceConfigurationType

Properties

content	complex
minOccurs	0

Model

ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Source

<xs:element name="Print3DServiceConfiguration" type="Print3DServiceConfigurationType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

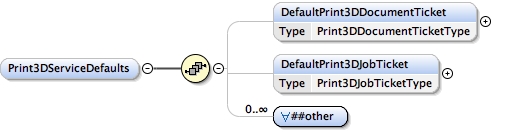

Element Print3DServiceType / Print3DServiceDefaults

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Properties

content	complex
minOccurs	0

Model

DefaultPrint3DDocumentTicket{0,1} , DefaultPrint3DJobTicket{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DefaultPrint3DDocumentTicket, DefaultPrint3DJobTicket

Instance

<Print3DServiceDefaults xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DefaultPrint3DDocumentTicket>{0,1}</DefaultPrint3DDocumentTicket>
  <DefaultPrint3DJobTicket>{0,1}</DefaultPrint3DJobTicket>
</Print3DServiceDefaults>

Source

<xs:element name="Print3DServiceDefaults" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="DefaultPrint3DDocumentTicket" type="Print3DDocumentTicketType" minOccurs="0"/>
      <xs:element name="DefaultPrint3DJobTicket" type="Print3DJobTicketType" minOccurs="0"/>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

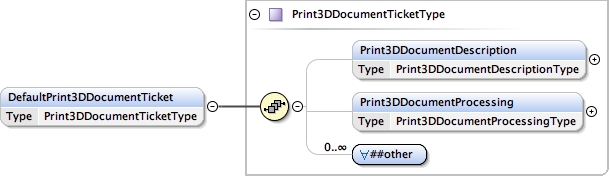

Element Print3DServiceType / Print3DServiceDefaults / DefaultPrint3DDocumentTicket

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DDocumentTicketType

Properties

content	complex
minOccurs	0

Model

Print3DDocumentDescription{0,1} , Print3DDocumentProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocumentDescription, Print3DDocumentProcessing

Instance

<DefaultPrint3DDocumentTicket xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DDocumentDescription>{0,1}</Print3DDocumentDescription>
  <Print3DDocumentProcessing>{0,1}</Print3DDocumentProcessing>
</DefaultPrint3DDocumentTicket>

Source

<xs:element name="DefaultPrint3DDocumentTicket" type="Print3DDocumentTicketType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

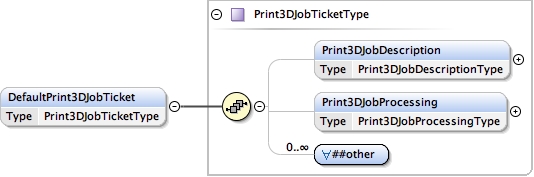

Element Print3DServiceType / Print3DServiceDefaults / DefaultPrint3DJobTicket

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobTicketType

Properties

content	complex
minOccurs	0

Model

Print3DJobDescription{0,1} , Print3DJobProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DJobDescription, Print3DJobProcessing

Instance

<DefaultPrint3DJobTicket xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DJobDescription>{0,1}</Print3DJobDescription>
  <Print3DJobProcessing>{0,1}</Print3DJobProcessing>
</DefaultPrint3DJobTicket>

Source

<xs:element name="DefaultPrint3DJobTicket" type="Print3DJobTicketType" minOccurs="0"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

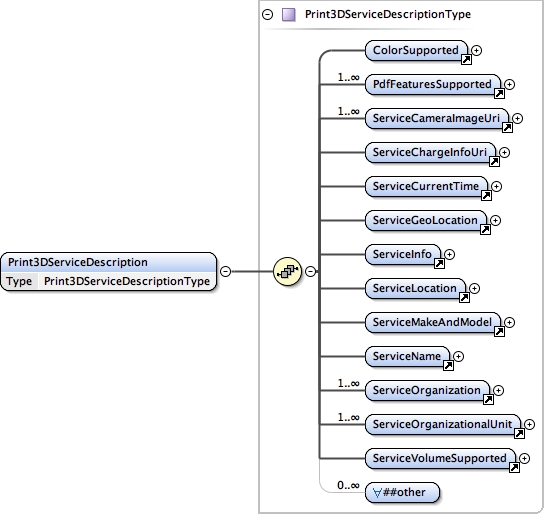

Element Print3DServiceType / Print3DServiceDescription

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

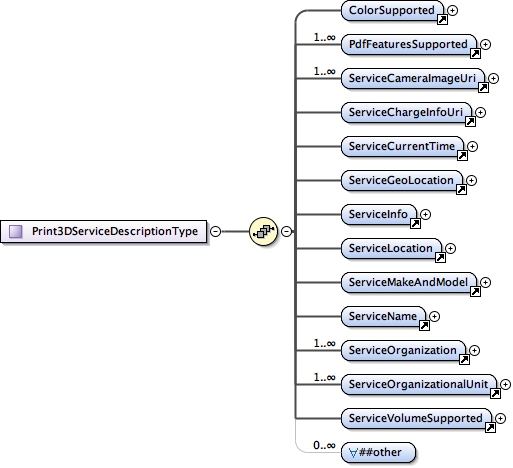

Print3DServiceDescriptionType

Properties

content

complex

Model

ColorSupported , PdfFeaturesSupported+ , ServiceCameraImageUri+ , ServiceChargeInfoUri , ServiceCurrentTime , ServiceGeoLocation , ServiceInfo , ServiceLocation , ServiceMakeAndModel , ServiceName , ServiceOrganization+ , ServiceOrganizationalUnit+ , ServiceVolumeSupported , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

ColorSupported, PdfFeaturesSupported, ServiceCameraImageUri, ServiceChargeInfoUri, ServiceCurrentTime, ServiceGeoLocation, ServiceInfo, ServiceLocation, ServiceMakeAndModel, ServiceName, ServiceOrganization, ServiceOrganizationalUnit, ServiceVolumeSupported

Instance

<Print3DServiceDescription xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <ColorSupported>{1,1}</ColorSupported>
  <PdfFeaturesSupported>{1,unbounded}</PdfFeaturesSupported>
  <ServiceCameraImageUri>{1,unbounded}</ServiceCameraImageUri>
  <ServiceChargeInfoUri>{1,1}</ServiceChargeInfoUri>
  <ServiceCurrentTime>{1,1}</ServiceCurrentTime>
  <ServiceGeoLocation>{1,1}</ServiceGeoLocation>
  <ServiceInfo>{1,1}</ServiceInfo>
  <ServiceLocation>{1,1}</ServiceLocation>
  <ServiceMakeAndModel>{1,1}</ServiceMakeAndModel>
  <ServiceName>{1,1}</ServiceName>
  <ServiceOrganization>{1,unbounded}</ServiceOrganization>
  <ServiceOrganizationalUnit>{1,unbounded}</ServiceOrganizationalUnit>
  <ServiceVolumeSupported>{1,1}</ServiceVolumeSupported>
</Print3DServiceDescription>

Source

<xs:element name="Print3DServiceDescription" type="Print3DServiceDescriptionType"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

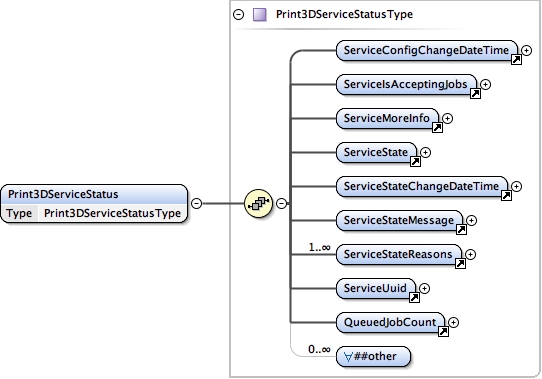

Element Print3DServiceType / Print3DServiceStatus

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DServiceStatusType

Properties

content

complex

Model

ServiceConfigChangeDateTime , ServiceIsAcceptingJobs , ServiceMoreInfo , ServiceState , ServiceStateChangeDateTime , ServiceStateMessage , ServiceStateReasons+ , ServiceUuid , QueuedJobCount , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

QueuedJobCount, ServiceConfigChangeDateTime, ServiceIsAcceptingJobs, ServiceMoreInfo, ServiceState, ServiceStateChangeDateTime, ServiceStateMessage, ServiceStateReasons, ServiceUuid

Instance

<Print3DServiceStatus xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <ServiceConfigChangeDateTime>{1,1}</ServiceConfigChangeDateTime>
  <ServiceIsAcceptingJobs>{1,1}</ServiceIsAcceptingJobs>
  <ServiceMoreInfo>{1,1}</ServiceMoreInfo>
  <ServiceState>{1,1}</ServiceState>
  <ServiceStateChangeDateTime>{1,1}</ServiceStateChangeDateTime>
  <ServiceStateMessage>{1,1}</ServiceStateMessage>
  <ServiceStateReasons>{1,unbounded}</ServiceStateReasons>
  <ServiceUuid>{1,1}</ServiceUuid>
  <QueuedJobCount>{1,1}</QueuedJobCount>
</Print3DServiceStatus>

Source

<xs:element name="Print3DServiceStatus" type="Print3DServiceStatusType"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Element Print3DServiceType / Print3DJob

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DJobType

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Model

Print3DJobReceipt{0,1} , Print3DJobStatus , Print3DJobTicket{0,1} , Print3DDocument* , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocument, Print3DJobReceipt, Print3DJobStatus, Print3DJobTicket

Instance

<Print3DJob xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DJobReceipt>{0,1}</Print3DJobReceipt>
  <Print3DJobStatus>{1,1}</Print3DJobStatus>
  <Print3DJobTicket>{0,1}</Print3DJobTicket>
  <Print3DDocument>{0,unbounded}</Print3DDocument>
</Print3DJob>

Source

<xs:element name="Print3DJob" type="Print3DJobType" minOccurs="0" maxOccurs="unbounded"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

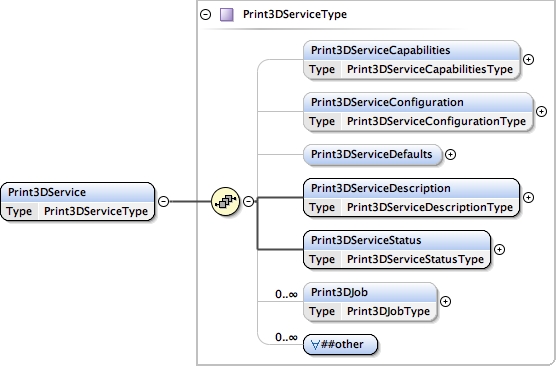

Element Print3DService

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Type

Print3DServiceType

Properties

content

complex

Model

Print3DServiceCapabilities{0,1} , Print3DServiceConfiguration{0,1} , Print3DServiceDefaults{0,1} , Print3DServiceDescription , Print3DServiceStatus , Print3DJob* , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DJob, Print3DServiceCapabilities, Print3DServiceConfiguration, Print3DServiceDefaults, Print3DServiceDescription, Print3DServiceStatus

Instance

<Print3DService xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <Print3DServiceCapabilities>{0,1}</Print3DServiceCapabilities>
  <Print3DServiceConfiguration>{0,1}</Print3DServiceConfiguration>
  <Print3DServiceDefaults>{0,1}</Print3DServiceDefaults>
  <Print3DServiceDescription>{1,1}</Print3DServiceDescription>
  <Print3DServiceStatus>{1,1}</Print3DServiceStatus>
  <Print3DJob>{0,unbounded}</Print3DJob>
</Print3DService>

Source

<xs:element name="Print3DService" type="Print3DServiceType"/>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentDescriptionType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DDocumentTicketType/Print3DDocumentDescription

Model

DocumentMetadata+ , DocumentName , KOctets , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DocumentMetadata, DocumentName, KOctets

Source

<xs:complexType name="Print3DDocumentDescriptionType">
  <xs:sequence>
    <xs:element ref="DocumentMetadata" maxOccurs="unbounded"/>
    <xs:element ref="DocumentName"/>
    <xs:element ref="KOctets"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentStatusType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DDocumentType/Print3DDocumentStatus

Model

Children

Source

<xs:complexType name="Print3DDocumentStatusType">
  <xs:sequence>
    <xs:element ref="DateTimeAtCreation"/>
    <xs:element ref="DateTimeAtProcessing"/>
    <xs:element ref="DocumentAccessErrors" maxOccurs="unbounded"/>
    <xs:element ref="DocumentFormat"/>
    <xs:element ref="DocumentFormatDetected"/>
    <xs:element ref="DocumentFormatSupplied"/>
    <xs:element ref="DocumentMessage"/>
    <xs:element ref="DocumentMessageSupplied"/>
    <xs:element ref="DocumentNameSupplied"/>
    <xs:element ref="DocumentState"/>
    <xs:element ref="DocumentStateMessage"/>
    <xs:element ref="DocumentStateReasons" maxOccurs="unbounded"/>
    <xs:element ref="DocumentUuid"/>
    <xs:element ref="ErrorsCount"/>
    <xs:element ref="KOctetsProcessed"/>
    <xs:element ref="OutputDeviceAssigned"/>
    <xs:element ref="WarningsCount"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentReceiptType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DDocumentType/Print3DDocumentReceipt

Model

Children

Source

<xs:complexType name="Print3DDocumentReceiptType">
  <xs:sequence>
    <xs:element minOccurs="0" ref="CopiesActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="FinishingsActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="MaterialsColActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="MultipleObjectHandlingActual"/>
    <xs:element minOccurs="0" ref="PlatformTemperatureActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintAccuracyActual"/>
    <xs:element minOccurs="0" ref="PrintBaseActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintObjectsActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintQualityActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintSupportsActual" maxOccurs="unbounded"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentProcessingType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DDocumentTicketType/Print3DDocumentProcessing

Model

Children

Copies, Finishings, MaterialsCol, MultipleObjectHandling, PlatformTemperature, PrintAccuracy, PrintBase, PrintObjects, PrintQuality, PrintSupports

Source

<xs:complexType name="Print3DDocumentProcessingType">
  <xs:sequence>
    <xs:element ref="Copies" minOccurs="0"/>
    <xs:element ref="Finishings" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="MaterialsCol" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="MultipleObjectHandling" minOccurs="0"/>
    <xs:element ref="PlatformTemperature" minOccurs="0"/>
    <xs:element ref="PrintAccuracy" minOccurs="0"/>
    <xs:element ref="PrintBase" minOccurs="0"/>
    <xs:element ref="PrintObjects" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="PrintQuality" minOccurs="0"/>
    <xs:element ref="PrintSupports" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DJobDescriptionType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DJobTicketType/Print3DJobDescription

Model

DocumentMetadata+ , JobChargeInfo , JobName , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

DocumentMetadata, JobChargeInfo, JobName

Source

<xs:complexType name="Print3DJobDescriptionType">
  <xs:sequence>
    <xs:element ref="DocumentMetadata" maxOccurs="unbounded"/>
    <xs:element ref="JobChargeInfo"/>
    <xs:element ref="JobName"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DJobStatusType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DJobType/Print3DJobStatus

Model

Children

DateTimeAtCreation, DateTimeAtProcessing, DocumentFormatSupplied, DocumentMessageSupplied, DocumentNameSupplied, ErrorsCount, JobId, JobOriginatingUserName, JobState, JobStateMessage, JobStateReasons, JobUuid, KOctets, KOctetsProcessed, NumberOfDocuments, OutputDeviceAssigned, WarningsCount

Source

<xs:complexType name="Print3DJobStatusType">
  <xs:sequence>
    <xs:element ref="DateTimeAtCreation"/>
    <xs:element ref="DateTimeAtProcessing"/>
    <xs:element ref="DocumentFormatSupplied"/>
    <xs:element ref="DocumentMessageSupplied"/>
    <xs:element ref="DocumentNameSupplied"/>
    <xs:element ref="ErrorsCount"/>
    <xs:element ref="JobId"/>
    <xs:element ref="KOctets"/>
    <xs:element ref="KOctetsProcessed"/>
    <xs:element ref="JobOriginatingUserName"/>
    <xs:element ref="JobState"/>
    <xs:element ref="JobStateMessage"/>
    <xs:element ref="JobStateReasons" maxOccurs="unbounded"/>
    <xs:element ref="JobUuid"/>
    <xs:element ref="NumberOfDocuments"/>
    <xs:element ref="OutputDeviceAssigned"/>
    <xs:element ref="WarningsCount"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DJobReceiptType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DJobType/Print3DJobReceipt

Model

Children

Source

<xs:complexType name="Print3DJobReceiptType">
  <xs:sequence>
    <xs:element minOccurs="0" ref="CopiesActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="FinishingsActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="JobAccountIdActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="JobAccountTypeActual"/>
    <xs:element minOccurs="0" ref="JobAccountingUserIdActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="JobPriorityActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="MaterialsColActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="MultipleObjectHandlingActual"/>
    <xs:element minOccurs="0" ref="OutputDeviceActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PlatformTemperatureActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintAccuracyActual"/>
    <xs:element minOccurs="0" ref="PrintBaseActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintObjectsActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintQualityActual" maxOccurs="unbounded"/>
    <xs:element minOccurs="0" ref="PrintSupportsActual" maxOccurs="unbounded"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DJobProcessingType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DJobTicketType/Print3DJobProcessing

Model

Children

Source

<xs:complexType name="Print3DJobProcessingType">
  <xs:sequence>
    <xs:element ref="Copies" minOccurs="0"/>
    <xs:element ref="Finishings" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="JobAccountId" minOccurs="0"/>
    <xs:element ref="JobAccountType" minOccurs="0"/>
    <xs:element ref="JobAccountingUserId" minOccurs="0"/>
    <xs:element ref="JobPriority" minOccurs="0"/>
    <xs:element ref="MaterialsCol" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="MultipleObjectHandling" minOccurs="0"/>
    <xs:element ref="OutputDevice" minOccurs="0"/>
    <xs:element ref="PlatformTemperature" minOccurs="0"/>
    <xs:element ref="PrintAccuracy" minOccurs="0"/>
    <xs:element ref="PrintBase" minOccurs="0"/>
    <xs:element ref="PrintObjects" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="PrintQuality" minOccurs="0"/>
    <xs:element ref="PrintSupports" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DServiceDescriptionType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DServiceType/Print3DServiceDescription

Model

Children

Source

<xs:complexType name="Print3DServiceDescriptionType">
  <xs:sequence>
    <xs:element ref="ColorSupported"/>
    <xs:element ref="PdfFeaturesSupported" maxOccurs="unbounded"/>
    <xs:element ref="ServiceCameraImageUri" maxOccurs="unbounded"/>
    <xs:element ref="ServiceChargeInfoUri"/>
    <xs:element ref="ServiceCurrentTime"/>
    <xs:element ref="ServiceGeoLocation"/>
    <xs:element ref="ServiceInfo"/>
    <xs:element ref="ServiceLocation"/>
    <xs:element ref="ServiceMakeAndModel"/>
    <xs:element ref="ServiceName"/>
    <xs:element ref="ServiceOrganization" maxOccurs="unbounded"/>
    <xs:element ref="ServiceOrganizationalUnit" maxOccurs="unbounded"/>
    <xs:element ref="ServiceVolumeSupported"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DServiceCapabilitiesType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DServiceType/Print3DServiceCapabilities

Model

Children

Source

<xs:complexType name="Print3DServiceCapabilitiesType">
  <xs:sequence>
    <xs:element ref="AccuracyUnitsSupported" maxOccurs="unbounded"/>
    <xs:element ref="CopiesSupported"/>
    <xs:element ref="DocumentFormatSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialAmountUnitsSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialDiameterSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialPurposeSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialRateSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialRateUnitsSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialShellThicknessSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialTemperatureSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialTypeSupported" maxOccurs="unbounded"/>
    <xs:element ref="MaterialsColDatabase" maxOccurs="unbounded"/>
    <xs:element ref="MaterialsColReady" maxOccurs="unbounded"/>
    <xs:element ref="MaxMaterialsColSupported"/>
    <xs:element ref="PlatformTemperatureSupported" maxOccurs="unbounded"/>
    <xs:element ref="PrintAccuracySupported"/>
    <xs:element ref="PrintBaseSupported" maxOccurs="unbounded"/>
    <xs:element ref="PrintQualitySupported" maxOccurs="unbounded"/>
    <xs:element ref="PrintSupportsSupported" maxOccurs="unbounded"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

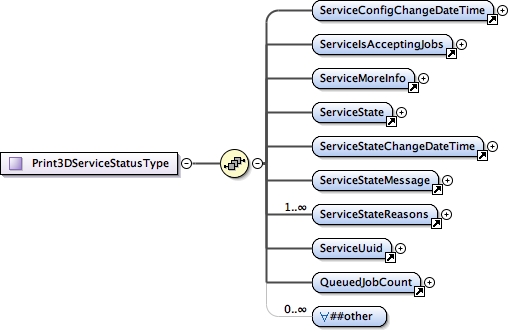

Complex Type Print3DServiceStatusType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DServiceType/Print3DServiceStatus

Model

Children

Source

<xs:complexType name="Print3DServiceStatusType">
  <xs:sequence>
    <xs:element ref="ServiceConfigChangeDateTime"/>
    <xs:element ref="ServiceIsAcceptingJobs"/>
    <xs:element ref="ServiceMoreInfo"/>
    <xs:element ref="ServiceState"/>
    <xs:element ref="ServiceStateChangeDateTime"/>
    <xs:element ref="ServiceStateMessage"/>
    <xs:element ref="ServiceStateReasons" maxOccurs="unbounded"/>
    <xs:element ref="ServiceUuid"/>
    <xs:element ref="QueuedJobCount"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DServiceConfigurationType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DServiceType/Print3DServiceConfiguration

Model

ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Source

<xs:complexType name="Print3DServiceConfigurationType">
  <xs:sequence>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentTicketType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Elements

Print3DDocumentType/Print3DDocumentTicket, Print3DServiceType/Print3DServiceDefaults/DefaultPrint3DDocumentTicket

Model

Print3DDocumentDescription{0,1} , Print3DDocumentProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocumentDescription, Print3DDocumentProcessing

Source

<xs:complexType name="Print3DDocumentTicketType">
  <xs:sequence>
    <xs:element name="Print3DDocumentDescription" type="Print3DDocumentDescriptionType" minOccurs="0"/>
    <xs:element name="Print3DDocumentProcessing" type="Print3DDocumentProcessingType" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DJobTicketType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Elements

Print3DJobType/Print3DJobTicket, Print3DServiceType/Print3DServiceDefaults/DefaultPrint3DJobTicket

Model

Print3DJobDescription{0,1} , Print3DJobProcessing{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DJobDescription, Print3DJobProcessing

Source

<xs:complexType name="Print3DJobTicketType">
  <xs:sequence>
    <xs:element name="Print3DJobDescription" type="Print3DJobDescriptionType" minOccurs="0"/>
    <xs:element name="Print3DJobProcessing" type="Print3DJobProcessingType" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

Complex Type Print3DDocumentType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DJobType/Print3DDocument

Model

Print3DDocumentReceipt{0,1} , Print3DDocumentStatus , Print3DDocumentTicket{0,1} , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocumentReceipt, Print3DDocumentStatus, Print3DDocumentTicket

Source

<xs:complexType name="Print3DDocumentType">
  <xs:sequence>
    <xs:element name="Print3DDocumentReceipt" type="Print3DDocumentReceiptType" minOccurs="0"/>
    <xs:element name="Print3DDocumentStatus" type="Print3DDocumentStatusType"/>
    <xs:element name="Print3DDocumentTicket" type="Print3DDocumentTicketType" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

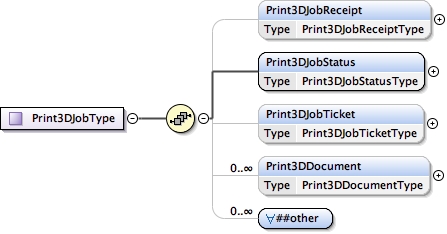

Complex Type Print3DJobType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DServiceType/Print3DJob

Model

Print3DJobReceipt{0,1} , Print3DJobStatus , Print3DJobTicket{0,1} , Print3DDocument* , ANY element from ANY namespace OTHER than 'http://www.pwg.org/schemas/smpjt3d10'

Children

Print3DDocument, Print3DJobReceipt, Print3DJobStatus, Print3DJobTicket

Source

<xs:complexType name="Print3DJobType">
  <xs:sequence>
    <xs:element name="Print3DJobReceipt" type="Print3DJobReceiptType" minOccurs="0"/>
    <xs:element name="Print3DJobStatus" type="Print3DJobStatusType"/>
    <xs:element name="Print3DJobTicket" type="Print3DJobTicketType" minOccurs="0"/>
    <xs:element name="Print3DDocument" type="Print3DDocumentType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd

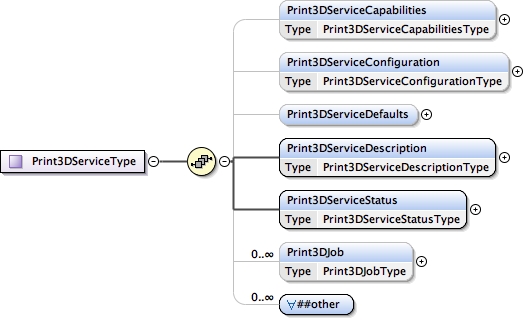

Complex Type Print3DServiceType

Namespace

http://www.pwg.org/schemas/smpjt3d10

Diagram

Used by

Element

Print3DService

Model

Children

Print3DJob, Print3DServiceCapabilities, Print3DServiceConfiguration, Print3DServiceDefaults, Print3DServiceDescription, Print3DServiceStatus

Source

<xs:complexType name="Print3DServiceType">
  <xs:sequence>
    <xs:element name="Print3DServiceCapabilities" type="Print3DServiceCapabilitiesType" minOccurs="0"/>
    <xs:element name="Print3DServiceConfiguration" type="Print3DServiceConfigurationType" minOccurs="0"/>
    <xs:element name="Print3DServiceDefaults" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="DefaultPrint3DDocumentTicket" type="Print3DDocumentTicketType" minOccurs="0"/>
          <xs:element name="DefaultPrint3DJobTicket" type="Print3DJobTicketType" minOccurs="0"/>
          <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Print3DServiceDescription" type="Print3DServiceDescriptionType"/>
    <xs:element name="Print3DServiceStatus" type="Print3DServiceStatusType"/>
    <xs:element name="Print3DJob" type="Print3DJobType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Users/mike/c/ippregistry/smpjt3d10-1.0/Print3DService.xsd
