Included schema PwgCommon.xsd
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

PWG Semantic Model v1.0
Copyright © 2002-2017 The IEEE-ISTO Printer Working Group.

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Semantic elements used in more than one sub-schema.
Properties
attribute form default qualified
element form default qualified
version 1.0
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentMetadata
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Strings are 'keyword=value', keywords are DublinCore elements or terms, values are UTF-8 plain text.
Diagram
Diagram PwgTypes_xsd.tmp#OctetStringType
Type OctetStringType
Properties
content simple
Facets
maxLength 43690
Used by
Source

<xs:element name="DocumentMetadata" type="OctetStringType">
  <xs:annotation>
    <xs:documentation>Strings are 'keyword=value', keywords are DublinCore elements or terms, values are UTF-8 plain text.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentName
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentName" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element KOctets
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="KOctets" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DateTimeAtCreation
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:dateTime
Properties
content simple
Used by
Source

<xs:element name="DateTimeAtCreation" type="xs:dateTime"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DateTimeAtProcessing
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:dateTime
Properties
content simple
Used by
Source

<xs:element name="DateTimeAtProcessing" type="xs:dateTime"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentAccessErrors
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="DocumentAccessErrors" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentFormat
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#MimeMediaType
Type MimeMediaType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentFormat" type="MimeMediaType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentFormatDetected
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#MimeMediaType
Type MimeMediaType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentFormatDetected" type="MimeMediaType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentFormatSupplied
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#MimeMediaType
Type MimeMediaType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentFormatSupplied" type="MimeMediaType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentMessage
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="DocumentMessage" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentMessageSupplied
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="DocumentMessageSupplied" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentNameSupplied
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentNameSupplied" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentState
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#DocumentStateWKV
Type DocumentStateWKV
Properties
content simple
Facets
maxLength 255
enumeration Pending
enumeration Processing
enumeration ProcessingStopped
enumeration Canceled
enumeration Aborted
enumeration Completed
Used by
Source

<xs:element name="DocumentState" type="DocumentStateWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentStateMessage
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="DocumentStateMessage" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentStateReasons
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#DocumentStateReasonsWKV
Type DocumentStateReasonsWKV
Properties
content simple
Facets
maxLength 255
enumeration AbortedBySystem
enumeration CanceledAtDevice
enumeration CanceledByOperator
enumeration CanceledByUser
enumeration CompletedSuccessfully
enumeration CompletedWithErrors
enumeration CompletedWithWarnings
enumeration CompressionError
enumeration DataInsufficient
enumeration DigitalSignatureDidNotVerify
enumeration DigitalSignatureTypeNotSupported
enumeration DigitalSignatureWait
enumeration DocumentAccessError
enumeration DocumentFetchable
enumeration DocumentFormatError
enumeration DocumentPasswordError
enumeration DocumentPermissionError
enumeration DocumentSecurityError
enumeration DocumentUnprintableError
enumeration ErrorsDetected
enumeration Incoming
enumeration Interpreting
enumeration None
enumeration Outgoing
enumeration Printing
enumeration ProcessingToStopPoint
enumeration Queued
enumeration QueuedForMarker
enumeration QueuedInDevice
enumeration ResourcesAreNotReady
enumeration ResourcesAreNotSupported
enumeration SubmissionInterrupted
enumeration Transforming
enumeration UnsupportedCompression
enumeration UnsupportedDocumentFormat
enumeration WarningsDetected
Used by
Source

<xs:element name="DocumentStateReasons" type="DocumentStateReasonsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentUuid
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="DocumentUuid" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ErrorsCount
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="ErrorsCount" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element KOctetsProcessed
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="KOctetsProcessed" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element OutputDeviceAssigned
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="OutputDeviceAssigned" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element WarningsCount
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="WarningsCount" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element CopiesActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="CopiesActual" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element FinishingsActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#FinishingsWKV
Type FinishingsWKV
Properties
content simple
Facets
maxLength 255
enumeration None
enumeration Trim
Used by
Source

<xs:element name="FinishingsActual" type="FinishingsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

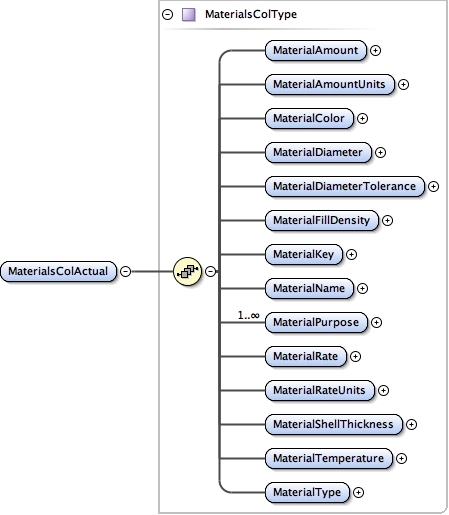

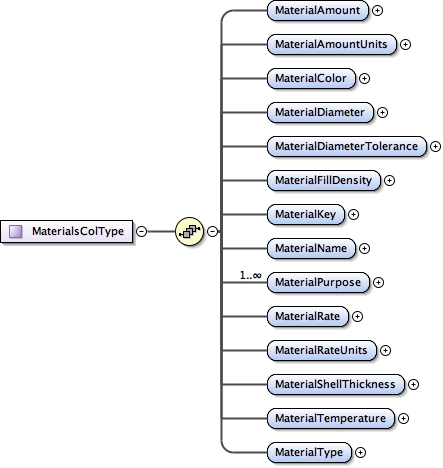

Element MaterialsColActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#MaterialsColType_MaterialAmount PwgCommon_xsd.tmp#MaterialsColType_MaterialAmountUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialColor PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameter PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameterTolerance PwgCommon_xsd.tmp#MaterialsColType_MaterialFillDensity PwgCommon_xsd.tmp#MaterialsColType_MaterialKey PwgCommon_xsd.tmp#MaterialsColType_MaterialName PwgCommon_xsd.tmp#MaterialsColType_MaterialPurpose PwgCommon_xsd.tmp#MaterialsColType_MaterialRate PwgCommon_xsd.tmp#MaterialsColType_MaterialRateUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialShellThickness PwgCommon_xsd.tmp#MaterialsColType_MaterialTemperature PwgCommon_xsd.tmp#MaterialsColType_MaterialType PwgCommon_xsd.tmp#MaterialsColType
Type MaterialsColType
Properties
content complex
Used by
Model
Children MaterialAmount, MaterialAmountUnits, MaterialColor, MaterialDiameter, MaterialDiameterTolerance, MaterialFillDensity, MaterialKey, MaterialName, MaterialPurpose, MaterialRate, MaterialRateUnits, MaterialShellThickness, MaterialTemperature, MaterialType
Instance

<MaterialsColActual xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <MaterialAmount>{1,1}</MaterialAmount>
  <MaterialAmountUnits>{1,1}</MaterialAmountUnits>
  <MaterialColor>{1,1}</MaterialColor>
  <MaterialDiameter>{1,1}</MaterialDiameter>
  <MaterialDiameterTolerance>{1,1}</MaterialDiameterTolerance>
  <MaterialFillDensity>{1,1}</MaterialFillDensity>
  <MaterialKey>{1,1}</MaterialKey>
  <MaterialName>{1,1}</MaterialName>
  <MaterialPurpose>{1,unbounded}</MaterialPurpose>
  <MaterialRate>{1,1}</MaterialRate>
  <MaterialRateUnits>{1,1}</MaterialRateUnits>
  <MaterialShellThickness>{1,1}</MaterialShellThickness>
  <MaterialTemperature>{1,1}</MaterialTemperature>
  <MaterialType>{1,1}</MaterialType>
</MaterialsColActual>
Source

<xs:element name="MaterialsColActual" type="MaterialsColType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialAmount
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialAmount" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialAmountUnits
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialAmountUnitsWKV
Type MaterialAmountUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration g
enumeration kg
enumeration l
enumeration m
enumeration ml
enumeration mm
Source

<xs:element name="MaterialAmountUnits" type="MaterialAmountUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialColor
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MediaColorWKV
Type MediaColorWKV
Properties
content simple
Facets
maxLength 255
enumeration black
enumeration blue
enumeration brown
enumeration buff
enumeration clear-black
enumeration clear-blue
enumeration clear-brown
enumeration clear-buff
enumeration clear-cyan
enumeration clear-gold
enumeration clear-goldenrod
enumeration clear-gray
enumeration clear-green
enumeration clear-ivory
enumeration clear-magenta
enumeration clear-multi-color
enumeration clear-mustard
enumeration clear-orange
enumeration clear-pink
enumeration clear-red
enumeration clear-silver
enumeration clear-turquoise
enumeration clear-violet
enumeration clear-white
enumeration clear-yellow
enumeration cyan
enumeration dark-blue
enumeration dark-brown
enumeration dark-buff
enumeration dark-cyan
enumeration dark-gold
enumeration dark-goldenrod
enumeration dark-gray
enumeration dark-green
enumeration dark-ivory
enumeration dark-magenta
enumeration dark-mustard
enumeration dark-orange
enumeration dark-pink
enumeration dark-red
enumeration dark-silver
enumeration dark-turquoise
enumeration dark-violet
enumeration dark-yellow
enumeration gold
enumeration goldenrod
enumeration gray
enumeration green
enumeration ivory
enumeration light-black
enumeration light-blue
enumeration light-brown
enumeration light-buff
enumeration light-cyan
enumeration light-gold
enumeration light-goldenrod
enumeration light-gray
enumeration light-green
enumeration light-ivory
enumeration light-magenta
enumeration light-mustard
enumeration light-orange
enumeration light-pink
enumeration light-red
enumeration light-silver
enumeration light-turquoise
enumeration light-violet
enumeration light-yellow
enumeration magenta
enumeration multi-color
enumeration mustard
enumeration no-color
enumeration orange
enumeration pink
enumeration red
enumeration silver
enumeration turquoise
enumeration violet
enumeration white
enumeration yellow
Source

<xs:element name="MaterialColor" type="MediaColorWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialDiameter
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are nanometers.
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialDiameter" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are nanometers.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialDiameterTolerance
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are nanometers.
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialDiameterTolerance" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are nanometers.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialFillDensity
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialFillDensity" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialKey
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:NMTOKEN
Properties
content simple
Source

<xs:element name="MaterialKey" type="xs:NMTOKEN"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialName
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Source

<xs:element name="MaterialName" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialPurpose
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialPurposeWKV
Type MaterialPurposeWKV
Properties
content simple
maxOccurs unbounded
Facets
maxLength 255
enumeration all
enumeration base
enumeration in-fill
enumeration shell
enumeration support
Source

<xs:element name="MaterialPurpose" type="MaterialPurposeWKV" maxOccurs="unbounded"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialRate
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialRate" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialRateUnits
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialRateUnitsWKV
Type MaterialRateUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration mg_second
enumeration ml_second
enumeration mm_second
Source

<xs:element name="MaterialRateUnits" type="MaterialRateUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialShellThickness
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are nanometers.
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="MaterialShellThickness" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are nanometers.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialTemperature
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are degrees Celsius.
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Model
Children LowerBound, UpperBound
Instance

<MaterialTemperature xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</MaterialTemperature>
Source

<xs:element name="MaterialTemperature" type="RangeOfIntType">
  <xs:annotation>
    <xs:documentation>Units are degrees Celsius.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColType / MaterialType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialTypeWKV
Type MaterialTypeWKV
Properties
content simple
Facets
maxLength 255
enumeration abs
enumeration abs-carbon-fiber
enumeration abs-carbon-nanotube
enumeration chocolate
enumeration gold
enumeration nylon
enumeration pet
enumeration photopolymer
enumeration pla
enumeration pla-conductive
enumeration pla-flexible
enumeration pla-magnetic
enumeration pla-steel
enumeration pla-stone
enumeration pla-wood
enumeration polycarbonate
enumeration pva-dissolvable
enumeration silver
enumeration titanium
enumeration wax
Source

<xs:element name="MaterialType" type="MaterialTypeWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MultipleObjectHandlingActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MultipleObjectHandlingWKV
Type MultipleObjectHandlingWKV
Properties
content simple
Facets
maxLength 255
enumeration Auto
enumeration BestFit
enumeration BestQuality
enumeration BestSpeed
enumeration OneAtATime
Used by
Source

<xs:element name="MultipleObjectHandlingActual" type="MultipleObjectHandlingWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PlatformTemperatureActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are degrees Celsius.
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="PlatformTemperatureActual" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are degrees Celsius.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

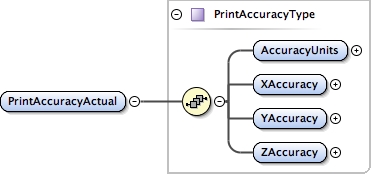

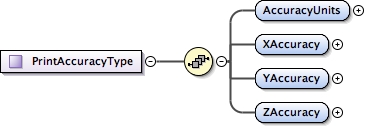

Element PrintAccuracyActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintAccuracyType_AccuracyUnits PwgCommon_xsd.tmp#PrintAccuracyType_XAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_YAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_ZAccuracy PwgCommon_xsd.tmp#PrintAccuracyType
Type PrintAccuracyType
Properties
content complex
Used by
Model
Children AccuracyUnits, XAccuracy, YAccuracy, ZAccuracy
Instance

<PrintAccuracyActual xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <AccuracyUnits>{1,1}</AccuracyUnits>
  <XAccuracy>{1,1}</XAccuracy>
  <YAccuracy>{1,1}</YAccuracy>
  <ZAccuracy>{1,1}</ZAccuracy>
</PrintAccuracyActual>
Source

<xs:element name="PrintAccuracyActual" type="PrintAccuracyType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracyType / AccuracyUnits
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#AccuracyUnitsWKV
Type AccuracyUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration Mm
enumeration Nm
enumeration Um
Source

<xs:element name="AccuracyUnits" type="AccuracyUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracyType / XAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="XAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracyType / YAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="YAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracyType / ZAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="ZAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintBaseActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintBaseWKV
Type PrintBaseWKV
Properties
content simple
Facets
maxLength 255
enumeration Brim
enumeration None
enumeration Raft
enumeration Skirt
enumeration Standard
Used by
Source

<xs:element name="PrintBaseActual" type="PrintBaseWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

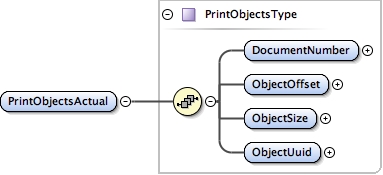

Element PrintObjectsActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintObjectsType_DocumentNumber PwgCommon_xsd.tmp#PrintObjectsType_ObjectOffset PwgCommon_xsd.tmp#PrintObjectsType_ObjectSize PwgCommon_xsd.tmp#PrintObjectsType_ObjectUuid PwgCommon_xsd.tmp#PrintObjectsType
Type PrintObjectsType
Properties
content complex
Used by
Model
Children DocumentNumber, ObjectOffset, ObjectSize, ObjectUuid
Instance

<PrintObjectsActual xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DocumentNumber>{1,1}</DocumentNumber>
  <ObjectOffset>{1,1}</ObjectOffset>
  <ObjectSize>{1,1}</ObjectSize>
  <ObjectUuid>{1,1}</ObjectUuid>
</PrintObjectsActual>
Source

<xs:element name="PrintObjectsActual" type="PrintObjectsType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintObjectsType / DocumentNumber
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="DocumentNumber" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintObjectsType / ObjectOffset
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#ObjectOffsetType_XOffset PwgCommon_xsd.tmp#ObjectOffsetType_YOffset PwgCommon_xsd.tmp#ObjectOffsetType_ZOffset PwgCommon_xsd.tmp#ObjectOffsetType
Type ObjectOffsetType
Properties
content complex
Model
Children XOffset, YOffset, ZOffset
Instance

<ObjectOffset xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <XOffset>{1,1}</XOffset>
  <YOffset>{1,1}</YOffset>
  <ZOffset>{1,1}</ZOffset>
</ObjectOffset>
Source

<xs:element name="ObjectOffset" type="ObjectOffsetType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectOffsetType / XOffset
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="XOffset" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectOffsetType / YOffset
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="YOffset" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectOffsetType / ZOffset
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="ZOffset" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

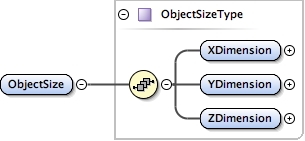

Element PrintObjectsType / ObjectSize
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#ObjectSizeType_XDimension PwgCommon_xsd.tmp#ObjectSizeType_YDimension PwgCommon_xsd.tmp#ObjectSizeType_ZDimension PwgCommon_xsd.tmp#ObjectSizeType
Type ObjectSizeType
Properties
content complex
Model
Children XDimension, YDimension, ZDimension
Instance

<ObjectSize xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <XDimension>{1,1}</XDimension>
  <YDimension>{1,1}</YDimension>
  <ZDimension>{1,1}</ZDimension>
</ObjectSize>
Source

<xs:element name="ObjectSize" type="ObjectSizeType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectSizeType / XDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="XDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectSizeType / YDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="YDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ObjectSizeType / ZDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="ZDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintObjectsType / ObjectUuid
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Source

<xs:element name="ObjectUuid" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintQualityActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintQualityWKV
Type PrintQualityWKV
Properties
content simple
Facets
maxLength 255
enumeration Draft
enumeration Normal
enumeration High
Used by
Source

<xs:element name="PrintQualityActual" type="PrintQualityWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintSupportsActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintSupportsWKV
Type PrintSupportsWKV
Properties
content simple
Facets
maxLength 255
enumeration Material
enumeration None
enumeration Standard
Used by
Source

<xs:element name="PrintSupportsActual" type="PrintSupportsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element Copies
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="Copies" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element Finishings
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#FinishingsWKV
Type FinishingsWKV
Properties
content simple
Facets
maxLength 255
enumeration None
enumeration Trim
Used by
Source

<xs:element name="Finishings" type="FinishingsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

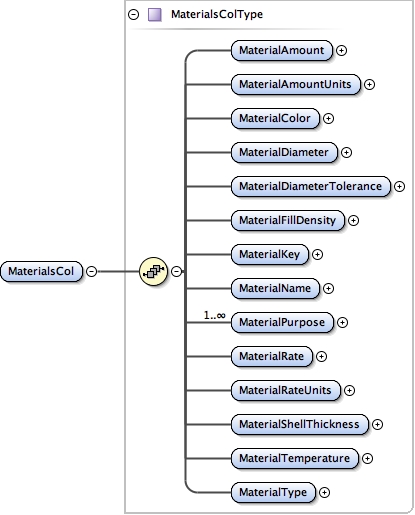

Element MaterialsCol
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#MaterialsColType_MaterialAmount PwgCommon_xsd.tmp#MaterialsColType_MaterialAmountUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialColor PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameter PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameterTolerance PwgCommon_xsd.tmp#MaterialsColType_MaterialFillDensity PwgCommon_xsd.tmp#MaterialsColType_MaterialKey PwgCommon_xsd.tmp#MaterialsColType_MaterialName PwgCommon_xsd.tmp#MaterialsColType_MaterialPurpose PwgCommon_xsd.tmp#MaterialsColType_MaterialRate PwgCommon_xsd.tmp#MaterialsColType_MaterialRateUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialShellThickness PwgCommon_xsd.tmp#MaterialsColType_MaterialTemperature PwgCommon_xsd.tmp#MaterialsColType_MaterialType PwgCommon_xsd.tmp#MaterialsColType
Type MaterialsColType
Properties
content complex
Used by
Model
Children MaterialAmount, MaterialAmountUnits, MaterialColor, MaterialDiameter, MaterialDiameterTolerance, MaterialFillDensity, MaterialKey, MaterialName, MaterialPurpose, MaterialRate, MaterialRateUnits, MaterialShellThickness, MaterialTemperature, MaterialType
Instance

<MaterialsCol xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <MaterialAmount>{1,1}</MaterialAmount>
  <MaterialAmountUnits>{1,1}</MaterialAmountUnits>
  <MaterialColor>{1,1}</MaterialColor>
  <MaterialDiameter>{1,1}</MaterialDiameter>
  <MaterialDiameterTolerance>{1,1}</MaterialDiameterTolerance>
  <MaterialFillDensity>{1,1}</MaterialFillDensity>
  <MaterialKey>{1,1}</MaterialKey>
  <MaterialName>{1,1}</MaterialName>
  <MaterialPurpose>{1,unbounded}</MaterialPurpose>
  <MaterialRate>{1,1}</MaterialRate>
  <MaterialRateUnits>{1,1}</MaterialRateUnits>
  <MaterialShellThickness>{1,1}</MaterialShellThickness>
  <MaterialTemperature>{1,1}</MaterialTemperature>
  <MaterialType>{1,1}</MaterialType>
</MaterialsCol>
Source

<xs:element name="MaterialsCol" type="MaterialsColType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MultipleObjectHandling
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MultipleObjectHandlingWKV
Type MultipleObjectHandlingWKV
Properties
content simple
Facets
maxLength 255
enumeration Auto
enumeration BestFit
enumeration BestQuality
enumeration BestSpeed
enumeration OneAtATime
Used by
Source

<xs:element name="MultipleObjectHandling" type="MultipleObjectHandlingWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PlatformTemperature
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are degrees Celsius.
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="PlatformTemperature" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are degrees Celsius.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

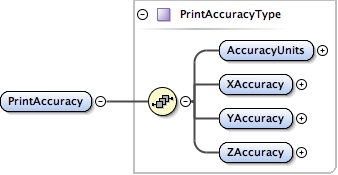

Element PrintAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintAccuracyType_AccuracyUnits PwgCommon_xsd.tmp#PrintAccuracyType_XAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_YAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_ZAccuracy PwgCommon_xsd.tmp#PrintAccuracyType
Type PrintAccuracyType
Properties
content complex
Used by
Model
Children AccuracyUnits, XAccuracy, YAccuracy, ZAccuracy
Instance

<PrintAccuracy xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <AccuracyUnits>{1,1}</AccuracyUnits>
  <XAccuracy>{1,1}</XAccuracy>
  <YAccuracy>{1,1}</YAccuracy>
  <ZAccuracy>{1,1}</ZAccuracy>
</PrintAccuracy>
Source

<xs:element name="PrintAccuracy" type="PrintAccuracyType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintBase
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintBaseWKV
Type PrintBaseWKV
Properties
content simple
Facets
maxLength 255
enumeration Brim
enumeration None
enumeration Raft
enumeration Skirt
enumeration Standard
Used by
Source

<xs:element name="PrintBase" type="PrintBaseWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd

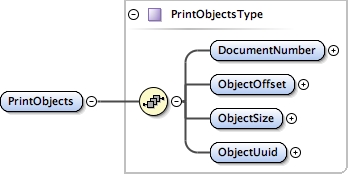

Element PrintObjects
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintObjectsType_DocumentNumber PwgCommon_xsd.tmp#PrintObjectsType_ObjectOffset PwgCommon_xsd.tmp#PrintObjectsType_ObjectSize PwgCommon_xsd.tmp#PrintObjectsType_ObjectUuid PwgCommon_xsd.tmp#PrintObjectsType
Type PrintObjectsType
Properties
content complex
Used by
Model
Children DocumentNumber, ObjectOffset, ObjectSize, ObjectUuid
Instance

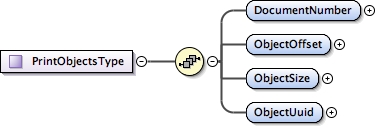

<PrintObjects xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <DocumentNumber>{1,1}</DocumentNumber>
  <ObjectOffset>{1,1}</ObjectOffset>
  <ObjectSize>{1,1}</ObjectSize>
  <ObjectUuid>{1,1}</ObjectUuid>
</PrintObjects>
Source

<xs:element name="PrintObjects" type="PrintObjectsType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintQuality
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintQualityWKV
Type PrintQualityWKV
Properties
content simple
Facets
maxLength 255
enumeration Draft
enumeration Normal
enumeration High
Used by
Source

<xs:element name="PrintQuality" type="PrintQualityWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintSupports
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintSupportsWKV
Type PrintSupportsWKV
Properties
content simple
Facets
maxLength 255
enumeration Material
enumeration None
enumeration Standard
Used by
Source

<xs:element name="PrintSupports" type="PrintSupportsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobChargeInfo
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="JobChargeInfo" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobName
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="JobName" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobId
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobId" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobOriginatingUserName
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobOriginatingUserName" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobState
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#JobStateWKV
Type JobStateWKV
Properties
content simple
Facets
maxLength 255
enumeration Pending
enumeration PendingHeld
enumeration Processing
enumeration ProcessingStopped
enumeration Canceled
enumeration Aborted
enumeration Completed
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobState" type="JobStateWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobStateMessage
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobStateMessage" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobStateReasons
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#JobStateReasonsWKV
Type JobStateReasonsWKV
Properties
content simple
Facets
maxLength 255
enumeration AbortedBySystem
enumeration AccountAuthorizationFailed
enumeration AccountClosed
enumeration AccountInfoNeeded
enumeration AccountLimitReached
enumeration CompressionError
enumeration ConflictingAttributes
enumeration ConnectedToDestination
enumeration ConnectingToDestination
enumeration DestinationUriFailed
enumeration DigitalSignatureDidNotVerify
enumeration DigitalSignatureTypeNotSupported
enumeration DocumentAccessError
enumeration DocumentFormatError
enumeration DocumentPasswordError
enumeration DocumentPermissionError
enumeration DocumentSecurityError
enumeration DocumentUnprintableError
enumeration ErrorsDetected
enumeration JobCanceledAtDevice
enumeration JobCanceledByOperator
enumeration JobCanceledByUser
enumeration JobCompletedSuccessfully
enumeration JobCompletedWithErrors
enumeration JobCompletedWithWarnings
enumeration JobDataInsufficient
enumeration JobDelayOutputUntilSpecified
enumeration JobDigitalSignatureWait
enumeration JobFetchable
enumeration JobHeldForReview
enumeration JobHoldUntilSpecified
enumeration JobIncoming
enumeration JobInterpreting
enumeration JobOutgoing
enumeration JobPasswordWait
enumeration JobPrintedSuccessfully
enumeration JobPrintedWithErrors
enumeration JobPrintedWithWarnings
enumeration JobPrinting
enumeration JobQueued
enumeration JobQueuedForMarker
enumeration JobReleaseWait
enumeration JobRestartable
enumeration JobResuming
enumeration JobSavedSuccessfully
enumeration JobSavedWithErrors
enumeration JobSavedWithWarnings
enumeration JobSaving
enumeration JobSpooling
enumeration JobStreaming
enumeration JobSuspended
enumeration JobSuspendedByOperator
enumeration JobSuspendedBySystem
enumeration JobSuspendedByUser
enumeration JobSuspending
enumeration JobTransferring
enumeration JobTransforming
enumeration None
enumeration PrinterStopped
enumeration PrinterStoppedPartly
enumeration ProcessingToStopPoint
enumeration QueuedInDevice
enumeration ResourcesAreNotReady
enumeration ResourcesAreNotSupported
enumeration ServiceOffLine
enumeration SubmissionInterrupted
enumeration UnsupportedAttributesOrValues
enumeration UnsupportedCompression
enumeration UnsupportedDocumentFormat
enumeration WaitingForUserAction
enumeration WarningsDetected
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobStateReasons" type="JobStateReasonsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobUuid
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="JobUuid" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element NumberOfDocuments
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Complex Type Print3DJobStatusType
Source

<xs:element name="NumberOfDocuments" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountIdActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Complex Type Print3DJobReceiptType
Source

<xs:element name="JobAccountIdActual" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountTypeActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#JobAccountTypeWKV
Type JobAccountTypeWKV
Properties
content simple
Facets
maxLength 255
enumeration General
enumeration Group
enumeration None
Used by
Complex Type Print3DJobReceiptType
Source

<xs:element name="JobAccountTypeActual" type="JobAccountTypeWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountingUserIdActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Complex Type Print3DJobReceiptType
Source

<xs:element name="JobAccountingUserIdActual" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobPriorityActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Complex Type Print3DJobReceiptType
Source

<xs:element name="JobPriorityActual" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element OutputDeviceActual
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Complex Type Print3DJobReceiptType
Source

<xs:element name="OutputDeviceActual" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountId
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="JobAccountId" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#JobAccountTypeWKV
Type JobAccountTypeWKV
Properties
content simple
Facets
maxLength 255
enumeration General
enumeration Group
enumeration None
Used by
Source

<xs:element name="JobAccountType" type="JobAccountTypeWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAccountingUserId
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="JobAccountingUserId" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobPriority
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="JobPriority" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element OutputDevice
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="OutputDevice" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ColorSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:boolean
Properties
content simple
Used by
Source

<xs:element name="ColorSupported" type="xs:boolean"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PdfFeaturesSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PdfFeaturesWKV
Type PdfFeaturesWKV
Properties
content simple
Facets
maxLength 255
enumeration Prc
enumeration U3d
Used by
Source

<xs:element name="PdfFeaturesSupported" type="PdfFeaturesWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceCameraImageUri
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="ServiceCameraImageUri" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceChargeInfoUri
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="ServiceChargeInfoUri" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceCurrentTime
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:dateTime
Properties
content simple
Used by
Source

<xs:element name="ServiceCurrentTime" type="xs:dateTime"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceGeoLocation
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="ServiceGeoLocation" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceInfo
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceInfo" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceLocation
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceLocation" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceMakeAndModel
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceMakeAndModel" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceName
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#NameType
Type NameType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="ServiceName" type="NameType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceOrganization
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceOrganization" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceOrganizationalUnit
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceOrganizationalUnit" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceVolumeSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrinterVolumeSupportedType_XDimension PwgCommon_xsd.tmp#PrinterVolumeSupportedType_YDimension PwgCommon_xsd.tmp#PrinterVolumeSupportedType_ZDimension PwgCommon_xsd.tmp#PrinterVolumeSupportedType
Type PrinterVolumeSupportedType
Properties
content complex
Used by
Model
Children XDimension, YDimension, ZDimension
Instance

<ServiceVolumeSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <XDimension>{1,1}</XDimension>
  <YDimension>{1,1}</YDimension>
  <ZDimension>{1,1}</ZDimension>
</ServiceVolumeSupported>
Source

<xs:element name="ServiceVolumeSupported" type="PrinterVolumeSupportedType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrinterVolumeSupportedType / XDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="XDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrinterVolumeSupportedType / YDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="YDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrinterVolumeSupportedType / ZDimension
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are hundredths of millimeters (1/2540th of an inch).
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="ZDimension" type="xs:int">
  <xs:annotation>
    <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element AccuracyUnitsSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#AccuracyUnitsWKV
Type AccuracyUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration Mm
enumeration Nm
enumeration Um
Used by
Source

<xs:element name="AccuracyUnitsSupported" type="AccuracyUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element CopiesSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<CopiesSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</CopiesSupported>
Source

<xs:element name="CopiesSupported" type="RangeOfIntType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element DocumentFormatSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#MimeMediaType
Type MimeMediaType
Properties
content simple
Facets
maxLength 255
Used by
Source

<xs:element name="DocumentFormatSupported" type="MimeMediaType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialAmountUnitsSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialAmountUnitsWKV
Type MaterialAmountUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration g
enumeration kg
enumeration l
enumeration m
enumeration ml
enumeration mm
Used by
Source

<xs:element name="MaterialAmountUnitsSupported" type="MaterialAmountUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialDiameterSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are nanometers.
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<MaterialDiameterSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</MaterialDiameterSupported>
Source

<xs:element name="MaterialDiameterSupported" type="RangeOfIntType">
  <xs:annotation>
    <xs:documentation>Units are nanometers.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialPurposeSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialPurposeWKV
Type MaterialPurposeWKV
Properties
content simple
Facets
maxLength 255
enumeration all
enumeration base
enumeration in-fill
enumeration shell
enumeration support
Used by
Source

<xs:element name="MaterialPurposeSupported" type="MaterialPurposeWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialRateSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<MaterialRateSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</MaterialRateSupported>
Source

<xs:element name="MaterialRateSupported" type="RangeOfIntType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialRateUnitsSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialRateUnitsWKV
Type MaterialRateUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration mg_second
enumeration ml_second
enumeration mm_second
Used by
Source

<xs:element name="MaterialRateUnitsSupported" type="MaterialRateUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialShellThicknessSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are nanometers.
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<MaterialShellThicknessSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</MaterialShellThicknessSupported>
Source

<xs:element name="MaterialShellThicknessSupported" type="RangeOfIntType">
  <xs:annotation>
    <xs:documentation>Units are nanometers.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialTemperatureSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are degrees Celsius.
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<MaterialTemperatureSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</MaterialTemperatureSupported>
Source

<xs:element name="MaterialTemperatureSupported" type="RangeOfIntType">
  <xs:annotation>
    <xs:documentation>Units are degrees Celsius.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialTypeSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#MaterialTypeWKV
Type MaterialTypeWKV
Properties
content simple
Facets
maxLength 255
enumeration abs
enumeration abs-carbon-fiber
enumeration abs-carbon-nanotube
enumeration chocolate
enumeration gold
enumeration nylon
enumeration pet
enumeration photopolymer
enumeration pla
enumeration pla-conductive
enumeration pla-flexible
enumeration pla-magnetic
enumeration pla-steel
enumeration pla-stone
enumeration pla-wood
enumeration polycarbonate
enumeration pva-dissolvable
enumeration silver
enumeration titanium
enumeration wax
Used by
Source

<xs:element name="MaterialTypeSupported" type="MaterialTypeWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColDatabase
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#MaterialsColType_MaterialAmount PwgCommon_xsd.tmp#MaterialsColType_MaterialAmountUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialColor PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameter PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameterTolerance PwgCommon_xsd.tmp#MaterialsColType_MaterialFillDensity PwgCommon_xsd.tmp#MaterialsColType_MaterialKey PwgCommon_xsd.tmp#MaterialsColType_MaterialName PwgCommon_xsd.tmp#MaterialsColType_MaterialPurpose PwgCommon_xsd.tmp#MaterialsColType_MaterialRate PwgCommon_xsd.tmp#MaterialsColType_MaterialRateUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialShellThickness PwgCommon_xsd.tmp#MaterialsColType_MaterialTemperature PwgCommon_xsd.tmp#MaterialsColType_MaterialType PwgCommon_xsd.tmp#MaterialsColType
Type MaterialsColType
Properties
content complex
Used by
Model
Children MaterialAmount, MaterialAmountUnits, MaterialColor, MaterialDiameter, MaterialDiameterTolerance, MaterialFillDensity, MaterialKey, MaterialName, MaterialPurpose, MaterialRate, MaterialRateUnits, MaterialShellThickness, MaterialTemperature, MaterialType
Instance

<MaterialsColDatabase xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <MaterialAmount>{1,1}</MaterialAmount>
  <MaterialAmountUnits>{1,1}</MaterialAmountUnits>
  <MaterialColor>{1,1}</MaterialColor>
  <MaterialDiameter>{1,1}</MaterialDiameter>
  <MaterialDiameterTolerance>{1,1}</MaterialDiameterTolerance>
  <MaterialFillDensity>{1,1}</MaterialFillDensity>
  <MaterialKey>{1,1}</MaterialKey>
  <MaterialName>{1,1}</MaterialName>
  <MaterialPurpose>{1,unbounded}</MaterialPurpose>
  <MaterialRate>{1,1}</MaterialRate>
  <MaterialRateUnits>{1,1}</MaterialRateUnits>
  <MaterialShellThickness>{1,1}</MaterialShellThickness>
  <MaterialTemperature>{1,1}</MaterialTemperature>
  <MaterialType>{1,1}</MaterialType>
</MaterialsColDatabase>
Source

<xs:element name="MaterialsColDatabase" type="MaterialsColType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaterialsColReady
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#MaterialsColType_MaterialAmount PwgCommon_xsd.tmp#MaterialsColType_MaterialAmountUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialColor PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameter PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameterTolerance PwgCommon_xsd.tmp#MaterialsColType_MaterialFillDensity PwgCommon_xsd.tmp#MaterialsColType_MaterialKey PwgCommon_xsd.tmp#MaterialsColType_MaterialName PwgCommon_xsd.tmp#MaterialsColType_MaterialPurpose PwgCommon_xsd.tmp#MaterialsColType_MaterialRate PwgCommon_xsd.tmp#MaterialsColType_MaterialRateUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialShellThickness PwgCommon_xsd.tmp#MaterialsColType_MaterialTemperature PwgCommon_xsd.tmp#MaterialsColType_MaterialType PwgCommon_xsd.tmp#MaterialsColType
Type MaterialsColType
Properties
content complex
Used by
Model
Children MaterialAmount, MaterialAmountUnits, MaterialColor, MaterialDiameter, MaterialDiameterTolerance, MaterialFillDensity, MaterialKey, MaterialName, MaterialPurpose, MaterialRate, MaterialRateUnits, MaterialShellThickness, MaterialTemperature, MaterialType
Instance

<MaterialsColReady xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <MaterialAmount>{1,1}</MaterialAmount>
  <MaterialAmountUnits>{1,1}</MaterialAmountUnits>
  <MaterialColor>{1,1}</MaterialColor>
  <MaterialDiameter>{1,1}</MaterialDiameter>
  <MaterialDiameterTolerance>{1,1}</MaterialDiameterTolerance>
  <MaterialFillDensity>{1,1}</MaterialFillDensity>
  <MaterialKey>{1,1}</MaterialKey>
  <MaterialName>{1,1}</MaterialName>
  <MaterialPurpose>{1,unbounded}</MaterialPurpose>
  <MaterialRate>{1,1}</MaterialRate>
  <MaterialRateUnits>{1,1}</MaterialRateUnits>
  <MaterialShellThickness>{1,1}</MaterialShellThickness>
  <MaterialTemperature>{1,1}</MaterialTemperature>
  <MaterialType>{1,1}</MaterialType>
</MaterialsColReady>
Source

<xs:element name="MaterialsColReady" type="MaterialsColType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element MaxMaterialsColSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="MaxMaterialsColSupported" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PlatformTemperatureSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Annotations

Units are degrees Celsius.
Diagram
Diagram PwgTypes_xsd.tmp#RangeOfIntType_LowerBound PwgTypes_xsd.tmp#RangeOfIntType_UpperBound PwgTypes_xsd.tmp#RangeOfIntType
Type RangeOfIntType
Properties
content complex
Used by
Model
Children LowerBound, UpperBound
Instance

<PlatformTemperatureSupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <LowerBound>{1,1}</LowerBound>
  <UpperBound>{1,1}</UpperBound>
</PlatformTemperatureSupported>
Source

<xs:element name="PlatformTemperatureSupported" type="RangeOfIntType">
  <xs:annotation>
    <xs:documentation>Units are degrees Celsius.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracySupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintAccuracySupportedType_AccuracyUnits PwgCommon_xsd.tmp#PrintAccuracySupportedType_XAccuracy PwgCommon_xsd.tmp#PrintAccuracySupportedType_YAccuracy PwgCommon_xsd.tmp#PrintAccuracySupportedType_ZAccuracy PwgCommon_xsd.tmp#PrintAccuracySupportedType
Type PrintAccuracySupportedType
Properties
content complex
Used by
Model
Children AccuracyUnits, XAccuracy, YAccuracy, ZAccuracy
Instance

<PrintAccuracySupported xmlns="http://www.pwg.org/schemas/smpjt3d10">
  <AccuracyUnits>{1,1}</AccuracyUnits>
  <XAccuracy>{1,1}</XAccuracy>
  <YAccuracy>{1,1}</YAccuracy>
  <ZAccuracy>{1,1}</ZAccuracy>
</PrintAccuracySupported>
Source

<xs:element name="PrintAccuracySupported" type="PrintAccuracySupportedType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracySupportedType / AccuracyUnits
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#AccuracyUnitsWKV
Type AccuracyUnitsWKV
Properties
content simple
Facets
maxLength 255
enumeration Mm
enumeration Nm
enumeration Um
Source

<xs:element name="AccuracyUnits" type="AccuracyUnitsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracySupportedType / XAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="XAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracySupportedType / YAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="YAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintAccuracySupportedType / ZAccuracy
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="ZAccuracy" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintBaseSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintBaseWKV
Type PrintBaseWKV
Properties
content simple
Facets
maxLength 255
enumeration Brim
enumeration None
enumeration Raft
enumeration Skirt
enumeration Standard
Used by
Source

<xs:element name="PrintBaseSupported" type="PrintBaseWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintQualitySupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintQualityWKV
Type PrintQualityWKV
Properties
content simple
Facets
maxLength 255
enumeration Draft
enumeration Normal
enumeration High
Used by
Source

<xs:element name="PrintQualitySupported" type="PrintQualityWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element PrintSupportsSupported
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrintSupportsWKV
Type PrintSupportsWKV
Properties
content simple
Facets
maxLength 255
enumeration Material
enumeration None
enumeration Standard
Used by
Source

<xs:element name="PrintSupportsSupported" type="PrintSupportsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceConfigChangeDateTime
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:dateTime
Properties
content simple
Used by
Source

<xs:element name="ServiceConfigChangeDateTime" type="xs:dateTime"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceIsAcceptingJobs
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:boolean
Properties
content simple
Used by
Source

<xs:element name="ServiceIsAcceptingJobs" type="xs:boolean"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceMoreInfo
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="ServiceMoreInfo" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceState
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrinterStateWKV
Type PrinterStateWKV
Properties
content simple
Facets
maxLength 255
enumeration Idle
enumeration Processing
enumeration Stopped
Used by
Source

<xs:element name="ServiceState" type="PrinterStateWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceStateChangeDateTime
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:dateTime
Properties
content simple
Used by
Source

<xs:element name="ServiceStateChangeDateTime" type="xs:dateTime"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceStateMessage
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgTypes_xsd.tmp#TextType
Type TextType
Properties
content simple
Facets
maxLength 1023
Used by
Source

<xs:element name="ServiceStateMessage" type="TextType"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceStateReasons
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgWellKnownValues_xsd.tmp#PrinterStateReasonsWKV
Type PrinterStateReasonsWKV
Properties
content simple
Facets
maxLength 255
enumeration CameraFailure
enumeration ChamberCooling
enumeration ChamberHeating
enumeration ChamberTemperatureHigh
enumeration ChamberTemperatureLow
enumeration ConfigurationChange
enumeration ConnectingToDevice
enumeration CoverOpen
enumeration Deactivated
enumeration DoorOpen
enumeration ExtruderCooling
enumeration ExtruderFailure
enumeration ExtruderHeating
enumeration ExtruderJam
enumeration ExtruderTemperatureHigh
enumeration ExtruderTemperatureLow
enumeration FanFailure
enumeration HoldNewJobs
enumeration IdentifyPrinterRequested
enumeration InterlockClosed
enumeration InterlockOpen
enumeration InterpreterComplexPageEncountered
enumeration InterpreterMemoryDecrease
enumeration InterpreterMemoryIncrease
enumeration InterpreterResourceAdded
enumeration InterpreterResourceDeleted
enumeration InterpreterResourceUnavailable
enumeration LampAtEol
enumeration LampFailure
enumeration LampNearEol
enumeration LaserAtEol
enumeration LaserFailure
enumeration LaserNearEol
enumeration MaterialEmpty
enumeration MaterialLow
enumeration MaterialNeeded
enumeration MotorFailure
enumeration MovingToPaused
enumeration None
enumeration Other
enumeration OutputAreaAlmostFull
enumeration OutputAreaFull
enumeration Paused
enumeration PowerDown
enumeration PowerUp
enumeration PrinterManualReset
enumeration PrinterNmsReset
enumeration PrinterReadyToPrint
enumeration Shutdown
enumeration SpoolAreaFull
enumeration StoppedPartly
enumeration Stopping
enumeration SubunitAdded
enumeration SubunitAlmostEmpty
enumeration SubunitAlmostFull
enumeration SubunitAtLimit
enumeration SubunitClosed
enumeration SubunitEmpty
enumeration SubunitFull
enumeration SubunitLifeAlmostOver
enumeration SubunitLifeOver
enumeration SubunitMemoryExhausted
enumeration SubunitMissing
enumeration SubunitMotorFailure
enumeration SubunitNearLimit
enumeration SubunitOffline
enumeration SubunitOpened
enumeration SubunitOverTemperature
enumeration SubunitPowerSaver
enumeration SubunitRecoverableFailure
enumeration SubunitRecoverableStorage
enumeration SubunitRemoved
enumeration SubunitResourceAdded
enumeration SubunitResourceRemoved
enumeration SubunitThermistorFailure
enumeration SubunitTurnedOff
enumeration SubunitTurnedOn
enumeration SubunitUnderTemperature
enumeration SubunitUnrecoverableFailure
enumeration SubunitUnrecoverableStorage
enumeration SubunitWarmingUp
enumeration TimedOut
enumeration TrimmerAdded
enumeration TrimmerAlmostEmpty
enumeration TrimmerAlmostFull
enumeration TrimmerAtLimit
enumeration TrimmerClosed
enumeration TrimmerConfigurationChange
enumeration TrimmerCoverClosed
enumeration TrimmerCoverOpen
enumeration TrimmerEmpty
enumeration TrimmerFull
enumeration TrimmerInterlockClosed
enumeration TrimmerInterlockOpen
enumeration TrimmerJam
enumeration TrimmerLifeAlmostOver
enumeration TrimmerLifeOver
enumeration TrimmerMemoryExhausted
enumeration TrimmerMissing
enumeration TrimmerMotorFailure
enumeration TrimmerNearLimit
enumeration TrimmerOffline
enumeration TrimmerOpened
enumeration TrimmerOverTemperature
enumeration TrimmerPowerSaver
enumeration TrimmerRecoverableFailure
enumeration TrimmerRecoverableStorage
enumeration TrimmerRemoved
enumeration TrimmerResourceAdded
enumeration TrimmerResourceRemoved
enumeration TrimmerThermistorFailure
enumeration TrimmerTimingFailure
enumeration TrimmerTurnedOff
enumeration TrimmerTurnedOn
enumeration TrimmerUnderTemperature
enumeration TrimmerUnrecoverableFailure
enumeration TrimmerUnrecoverableStorageError
enumeration TrimmerWarmingUp
enumeration Unknown
Used by
Source

<xs:element name="ServiceStateReasons" type="PrinterStateReasonsWKV"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element ServiceUuid
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Used by
Source

<xs:element name="ServiceUuid" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element QueuedJobCount
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:int
Properties
content simple
Used by
Source

<xs:element name="QueuedJobCount" type="xs:int"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Element JobAuthorizationUri
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram
Type xs:anyURI
Properties
content simple
Source

<xs:element name="JobAuthorizationUri" type="xs:anyURI"/>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type MaterialsColType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#MaterialsColType_MaterialAmount PwgCommon_xsd.tmp#MaterialsColType_MaterialAmountUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialColor PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameter PwgCommon_xsd.tmp#MaterialsColType_MaterialDiameterTolerance PwgCommon_xsd.tmp#MaterialsColType_MaterialFillDensity PwgCommon_xsd.tmp#MaterialsColType_MaterialKey PwgCommon_xsd.tmp#MaterialsColType_MaterialName PwgCommon_xsd.tmp#MaterialsColType_MaterialPurpose PwgCommon_xsd.tmp#MaterialsColType_MaterialRate PwgCommon_xsd.tmp#MaterialsColType_MaterialRateUnits PwgCommon_xsd.tmp#MaterialsColType_MaterialShellThickness PwgCommon_xsd.tmp#MaterialsColType_MaterialTemperature PwgCommon_xsd.tmp#MaterialsColType_MaterialType
Used by
Model
Children MaterialAmount, MaterialAmountUnits, MaterialColor, MaterialDiameter, MaterialDiameterTolerance, MaterialFillDensity, MaterialKey, MaterialName, MaterialPurpose, MaterialRate, MaterialRateUnits, MaterialShellThickness, MaterialTemperature, MaterialType
Source

<xs:complexType name="MaterialsColType">
  <xs:sequence>
    <xs:element name="MaterialAmount" type="xs:int"/>
    <xs:element name="MaterialAmountUnits" type="MaterialAmountUnitsWKV"/>
    <xs:element name="MaterialColor" type="MediaColorWKV"/>
    <xs:element name="MaterialDiameter" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are nanometers.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MaterialDiameterTolerance" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are nanometers.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MaterialFillDensity" type="xs:int"/>
    <xs:element name="MaterialKey" type="xs:NMTOKEN"/>
    <xs:element name="MaterialName" type="NameType"/>
    <xs:element name="MaterialPurpose" type="MaterialPurposeWKV" maxOccurs="unbounded"/>
    <xs:element name="MaterialRate" type="xs:int"/>
    <xs:element name="MaterialRateUnits" type="MaterialRateUnitsWKV"/>
    <xs:element name="MaterialShellThickness" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are nanometers.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MaterialTemperature" type="RangeOfIntType">
      <xs:annotation>
        <xs:documentation>Units are degrees Celsius.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MaterialType" type="MaterialTypeWKV"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type PrintAccuracyType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintAccuracyType_AccuracyUnits PwgCommon_xsd.tmp#PrintAccuracyType_XAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_YAccuracy PwgCommon_xsd.tmp#PrintAccuracyType_ZAccuracy
Used by
Model
Children AccuracyUnits, XAccuracy, YAccuracy, ZAccuracy
Source

<xs:complexType name="PrintAccuracyType">
  <xs:sequence>
    <xs:element name="AccuracyUnits" type="AccuracyUnitsWKV"/>
    <xs:element name="XAccuracy" type="xs:int"/>
    <xs:element name="YAccuracy" type="xs:int"/>
    <xs:element name="ZAccuracy" type="xs:int"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type PrintObjectsType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintObjectsType_DocumentNumber PwgCommon_xsd.tmp#PrintObjectsType_ObjectOffset PwgCommon_xsd.tmp#PrintObjectsType_ObjectSize PwgCommon_xsd.tmp#PrintObjectsType_ObjectUuid
Used by
Model
Children DocumentNumber, ObjectOffset, ObjectSize, ObjectUuid
Source

<xs:complexType name="PrintObjectsType">
  <xs:sequence>
    <xs:element name="DocumentNumber" type="xs:int"/>
    <xs:element name="ObjectOffset" type="ObjectOffsetType"/>
    <xs:element name="ObjectSize" type="ObjectSizeType"/>
    <xs:element name="ObjectUuid" type="xs:anyURI"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type ObjectOffsetType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#ObjectOffsetType_XOffset PwgCommon_xsd.tmp#ObjectOffsetType_YOffset PwgCommon_xsd.tmp#ObjectOffsetType_ZOffset
Used by
Model
Children XOffset, YOffset, ZOffset
Source

<xs:complexType name="ObjectOffsetType">
  <xs:sequence>
    <xs:element name="XOffset" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="YOffset" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ZOffset" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type ObjectSizeType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#ObjectSizeType_XDimension PwgCommon_xsd.tmp#ObjectSizeType_YDimension PwgCommon_xsd.tmp#ObjectSizeType_ZDimension
Used by
Model
Children XDimension, YDimension, ZDimension
Source

<xs:complexType name="ObjectSizeType">
  <xs:sequence>
    <xs:element name="XDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="YDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ZDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type PrinterVolumeSupportedType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrinterVolumeSupportedType_XDimension PwgCommon_xsd.tmp#PrinterVolumeSupportedType_YDimension PwgCommon_xsd.tmp#PrinterVolumeSupportedType_ZDimension
Used by
Model
Children XDimension, YDimension, ZDimension
Source

<xs:complexType name="PrinterVolumeSupportedType">
  <xs:sequence>
    <xs:element name="XDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="YDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ZDimension" type="xs:int">
      <xs:annotation>
        <xs:documentation>Units are hundredths of millimeters (1/2540th of an inch).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
Complex Type PrintAccuracySupportedType
Namespace http://www.pwg.org/schemas/smpjt3d10
Diagram
Diagram PwgCommon_xsd.tmp#PrintAccuracySupportedType_AccuracyUnits PwgCommon_xsd.tmp#PrintAccuracySupportedType_XAccuracy PwgCommon_xsd.tmp#PrintAccuracySupportedType_YAccuracy PwgCommon_xsd.tmp#PrintAccuracySupportedType_ZAccuracy
Used by
Model
Children AccuracyUnits, XAccuracy, YAccuracy, ZAccuracy
Source

<xs:complexType name="PrintAccuracySupportedType">
  <xs:sequence>
    <xs:element name="AccuracyUnits" type="AccuracyUnitsWKV"/>
    <xs:element name="XAccuracy" type="xs:int"/>
    <xs:element name="YAccuracy" type="xs:int"/>
    <xs:element name="ZAccuracy" type="xs:int"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/Users/mike/c/ippregistry/smpjt3d10-1.0/PwgCommon.xsd
XML Schema documentation generated by ® XML Editor.
